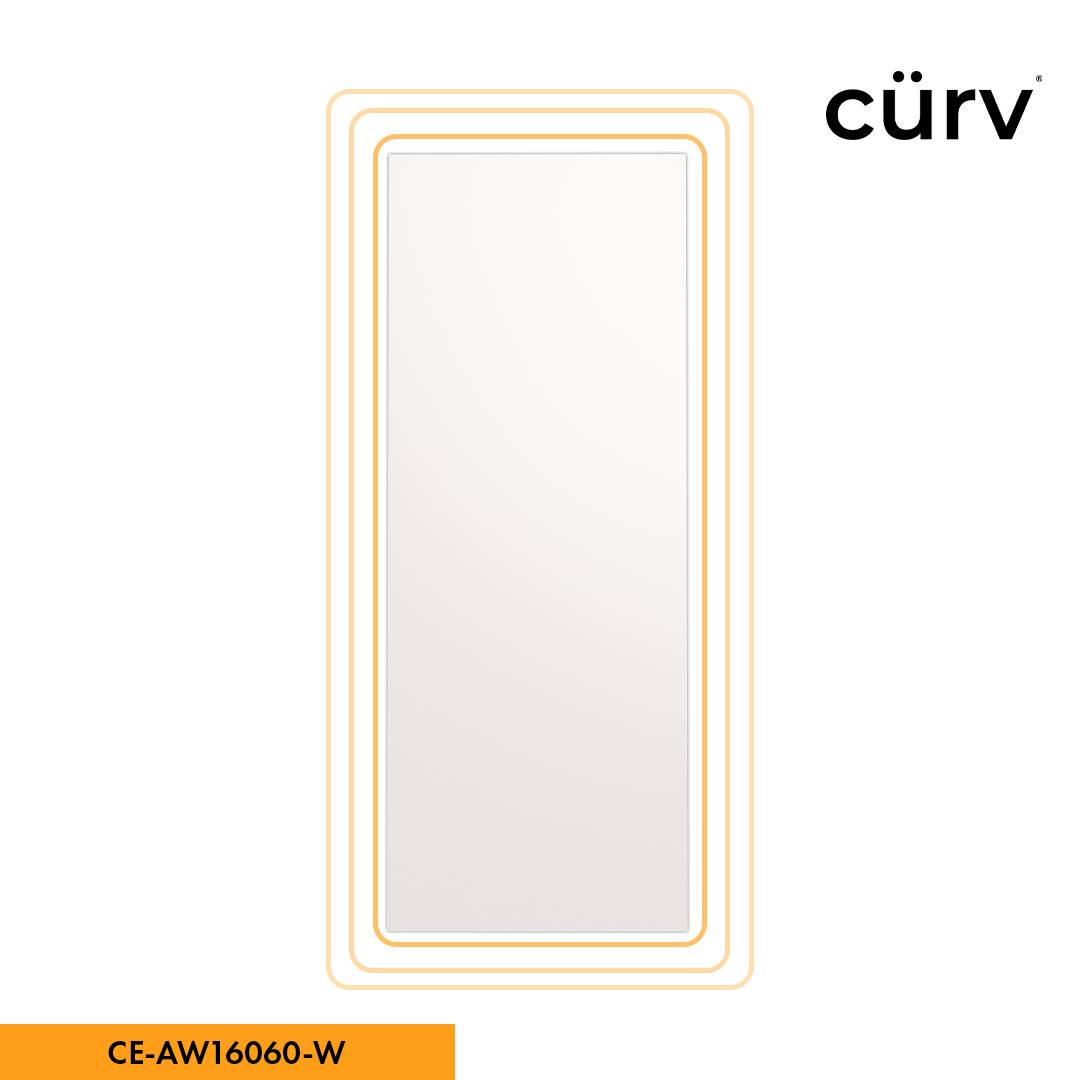

1100 W Infrared Aluminium Heater [CE-AW16060-W]
Aluminium infrared heating panel.
Wall or ceiling mountable infrared panel heating.
Sleek slimline Aluminium Infrared Heaters are versatile and lightweight, allowing them to be either ceiling, wall mounted or installed in a suspended ceiling.
Infrared heaters work by emitting infrared radiation which directly heats surfaces, objects and people in the room, rather than heating the air like traditional convection heaters. Heat is not wasted through draughts and air moving up to the ceiling where the heat is not needed, but instead, keeps a steadier thermal mass. This is a more natural, efficient and targeted way of heating spaces leading to potential energy savings.
Features and benefits:
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 595 mm 915 mm 1195 mm 1600 mm |
Width | 595 mm 620 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | V90/590 Equipment |
Radiant panels type | Wall mounted.Ceiling mounted. |
Output | 1100 W. |
Finish | Aluminium, Ocean White. |
Voltage | 220–240 V a.c. |
Current | Resistive, 3 A (maximum). |
Ingress protection | IP44. |
WiFi | WiFi 802.11 b/g/n. 2.4 GHz. |
TemperatureRange | Adjustable plate temperature range: 75–100°C. |
Size: | 620 x 1600 mm. |
Weight | 21.3 kg (gross). |
Material | Aluminium |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
