InstaGen Hybrid Inverter
Verified by manufacturer 15 hours ago
UKAS
Certificate type
Single-phase hybrid inverter.
Application
Wall mounted.
Description

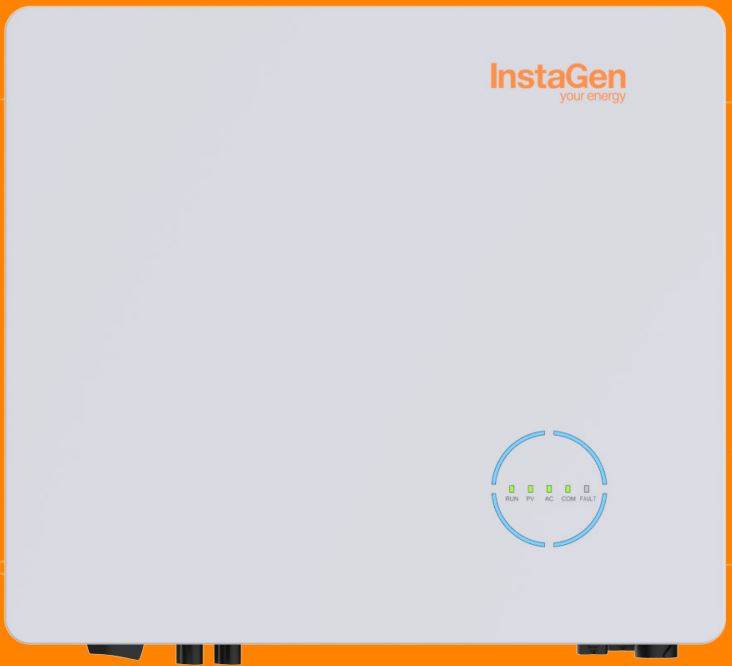

The INS-3.6LV-EUA1 is a high-performance single-phase hybrid inverter with excellent reliability, including a power class of 3.6 kW.
The HYS-5.0LV-EUG1 is a high-performance single-phase hybrid inverter with excellent reliability, including a power class of 5 kW.
The intelligent EMS function supports self consumption mode, economic mode, and backup mode for multi-scenario applications. Management through Cloud remote monitoring allows users to remotely diagnose and track system’s performance over time, maximizing the total solar power production and battery utilization.
Features and benefits:
- Maximum efficiency 97.6%, CEC efficiency 97.0%.
- Double MPPT tracker, up to 14 A MPPT current.
- DC/AC ratio up to 160%.
- Ultralight for easy installation and space-saving.
- Support both DC-coupled and AC-coupled system.
- EMS has integrated with self-consumption, economic mode, backup mode for multi-scenario application.
- Built-in dry contact flexibly set to earth fault alarm, load control or generator control.
- Integrated protection.
- Cloud remote monitoring.
- Communication with BMS@ RS485, CAN.
- Communication with Meter: RS485.
- Communication Interface: RS485, Wi-Fi/Ethernet/4G (optional).
- Battery type: 48 V LiFePO4 InstaGen.
- CE and UKCA marked.
General information
Color | White |
Shape | Rectangle |
Length | 202 mm Guidance for specification option: Depth |
Width | 502 mm |
Height | 461 mm |
Warranty description | Ten year Guidance for specification option: Enhanced product guarantee on product and workmanship. |
Uniclass | |
CAWS | V90/312 Photovoltaic systems |
Specification data - Inverters
Standard | To EN 50549, VDE-AR-N 4105, AS/NZS 4777.2, Safety Regulation IEC 62109-1, IEC 62109-2, EMC EN 61000-6-1, EN 61000-6-3. |
Input | |
Voltage range | 125–500 V d.c. |
Current (maximum) | 32 A. |
Output | |
Power rating | 3.6 kW.5.12 kW. |
Nominal voltage | 230 V a.c. |
Nominal frequency | 50 Hz. |
Voltage harmonic distortion | <3%. |
Overall efficiency (minimum) | 97% at rated capacity. |
Maximum power point tracker (MPPT) | Required. |
Topology | Transformerless. |
Enclosure | |
Ingress protection (minimum) | IP 65. |
Accessories | 4G communication. |
Third party certifications
UKAS
MCS Certificate Solar PV
Literature
InstaGen Solar Brochure
InstaGen Single-Phase Hybrid Inverter 5kW Data Sheet
Hybrid-Inverter Quick Installation Guide
Hybrid Inverter User Manual
InstaGen Hybrid Inverter 3.6kW Data Sheet
