InstaGen Solar Panels
Verified by manufacturer 16 hours ago
410/435W 182 mm half cell series solar panels.
Application
Roofs for residential and commercial properties.
Description
182mm Half cell series 108-cell TOPCon Bifacial all black monocrystalline solar module.
High module conversion efficiency
- Module efficiency up to 22.3% achieved through advanced cell technology and manufacturing process
Lower operating temperature
- Lower operating temperature and temperature coefficient increase the power output
Excellent weak light performance
- More power output in weak light condition, such as cloudy, morning and sunset
Extended wind and snow load tests
- Module certified to withstand extreme wind (2400 Pascal) and snow loads(5400 Pascal)
IP68 junction box
- High waterproof and dustproof level
Guarantees
- 12 years enhanced product guarantee on panels
- 30 years linear power output warranty
High performing solar panels to enable users to become energy independent by generating their own electricity, along with reducing their energy bills.
General information
Color | Black |
Finish | Smooth |
Material | Glass |
Shape | Rectangle |
Length | 1724 mm |
Width | 1134 mm |
Height | 30 mm |
Warranty description | 12 year Guidance for specification option: Enhanced product guarantee on product and workmanship. 25 year Guidance for specification option: Linear power output warranty (410 W). 30 year Guidance for specification option: Linear power output warranty (435 W). |
Uniclass | |
CAWS | V90/312 Photovoltaic systems |
Specification data - Photovoltaic modules
Third-party certification | TUV and MSC certified. |
Application class | To BS EN 61140, Class II. |
Cell type | Monocrystalline to BS EN IEC 61215-1. |
Framework | |
Material | Anodized aluminium alloy. |
Colour | Black. |
Module interconnections | |
Module connectors | MC4 compatible. |
Ingress protection (minimum) | IP68 (junction box). |
Nominal output of module | |
Peak power | 410 W.Guidance for specification option: Module efficiency: 21%. 435 W.Guidance for specification option: Module efficiency: 22.3%. |
Power output tolerance | 0–5 W. |
Bypass diodes | 3/6. |
Output warranty | Minimum of 80% power output after 25 years.Minimum of 90% power output after ten years. |
Size: | 1724 x 1134 x 30 mm. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Material | Glass |
Expected Life | 30 year |
Literature
InstaGen B2B Brochure
410W Solar Panel Data Sheet
435W Solar Panel Data Sheet
Case studies

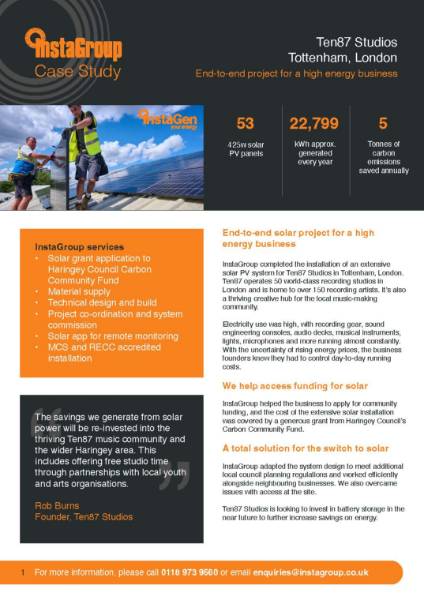

Ten87 Studios, Tottenham, London
