Insulated Folding Door - Thermafold 2000

Verified by manufacturer 3 months ago

Bolton Gate Company Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

Top-hung Insulated Folding Door

Jump to:
+44 (0)1204 871001 Website

Application

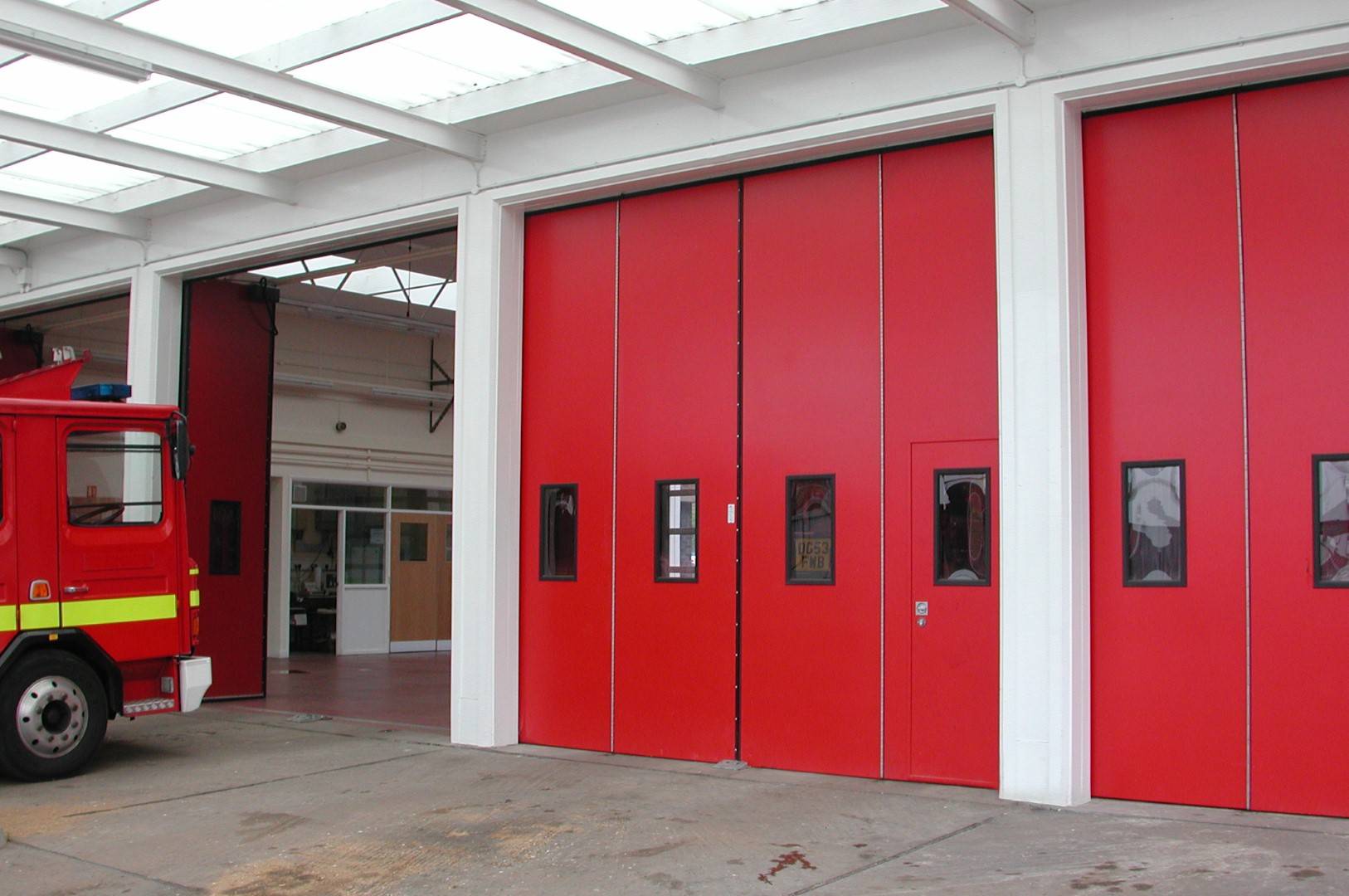

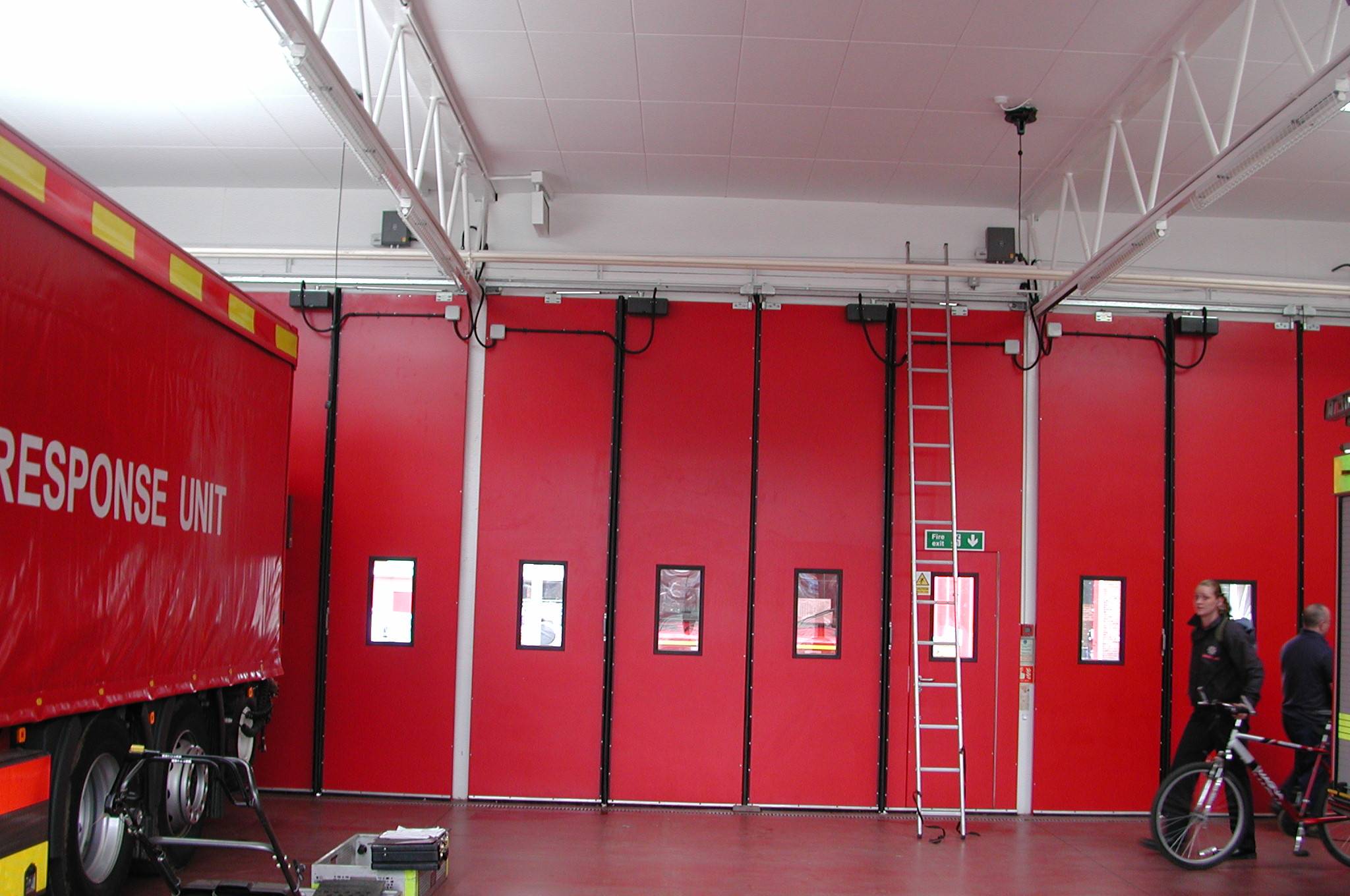

The Thermafold 2000 has been specified for many different applications such as factory loading bays, warehousing facilities, hangars and boat yards doors but also school service entrances, and bus depots.



For smaller applications, please also consider the Thermafold 1000 with it’s compact side hung arrangement. Please refer to the separate data sheet or speak with our sales team.



Performance Characteristics:

Thermal Resistance:                1.8 w/m²K

Resistance to Windload:       Class 5



Key Attributes:

Thermal resistance helping to reduce heat loss.

Wind load capabilities.

Robust, hard wearing, secure construction.

Bespoke British design manufactured in the UK to suit our Client specifications.



Description

Summary

Providing thermal resistance of 1.8 w/m²K, the Bolton Gate Company Thermafold 2000, insulated folding door is ideally suited to the closure of openings where a reduction in   thermal transmission is required.



The flat faced panel construction provides a robust, yet aesthetically pleasing appearance capable of withstanding high wind load conditions.



Each Thermafold 2000 is bespoke and manufactured to  order allowing significant flexibility when developing product specifications. The top hung arrangement allows the Thermafold to be provided on openings up to 24m in width and can be supported by a wide array of operating controls and safety devices.



The energy saving option of an integrated wicket door can be incorporated allowing access to authorised personnel without the need to open the full door.



Operation

The doors are electrically operated as standard using a 400volt nominal, 3 phase direct drive motor mounted on the top track.



Emergency hand chain operation with low level engagement is provided with the motor.



A control panel with integrated open/close/stop push buttons is positioned adjacent to the opening at the bunch side.



A wireless safety edge is mounted to the front edge of the leading panel(s).



Arrangement

The standard arrangement is for the Thermafold 2000 to be face fixed internally but there is also the option of mounting between the jambs.



The doors can be single (bunching to one side) or bi-parting.



Panels

The panels are constructed from rolled steel hollow sections with 2mm thick flat galvanised steel facing sheets.



The panels are filled with a high density, acoustic dampening, insulation material and have an overall thickness of 64mm.



Hinges / Guide Pins

The panels are connected using heavy duty hinges arranged at the top, bottom and intermediate positions.



Seals

Brush strip is mounted at the top and lower edge of the door panels and a heavy duty rubber seal is mounted to full height between each panel.



Tracks

The door panels are top hung on four wheel type bearing hangers which incorporate the panel hinges and run in a galvanised steel top track. An auxiliary top track is attached to allow the panels to fold correctly.



A steel channel bottom track is provided and set for alignment within a 200 x 75mm chase before final grouting into position. The unique profile of the bottom track both assists weather sealing whilst providing the necessary level threshold.



Finish

The majority of parts are galvanised with other components prime painted. A polyester powder coat finish to a range of standard RAL colours is available as an extra option.



Weight

Approximately 50kg per m² albeit this may vary dependent on the door width and height.



Sizes

Single: 12m clear width x 8m clear height

Pair: 24m clear width x 8m clear height



Options

· Integrated wicket door complete with hardware.

· Polyester powder coat finish to a single RAL colour.

· A wide array of control and safety equipment such as light curtains, radar, pressure mats, remote controls—please discuss with our sales team.

· Double glazed vision panels of varying sizes.





General information

Color

Other

Manufacturer guidance

A range of RAL colours available.

Finish

Galvanized

Guidance for specification option:

The standard finish is galvanized with polyester powder coating or Colorcoat HP 200 in a range of standard colours as an optional extra.

Material

Carbon steel

Guidance for specification option:

Galvanized steel with ethylene propylene diene monomer (EPDM) seals.

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Guidance for specification option:

The doors are bespoke, manufactured to suit the project requirements subject to the following maximums: -


Single Door: 12m wide x 8m high

Pair of Doors: 24m wide x 8m high

Height

Bespoke

Guidance for specification option:

The doors are bespoke, manufactured to suit the project requirements subject to the following maximums: -


Single Door: 12m wide x 8m high

Pair of Doors: 24m wide x 8m high

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary
Pr_30_59_34_14 Carbon steel gates
Ss_25_32_35_30 Folding gate systems

CAWS

L20/530 Sliding folding external doors

L20/535 Sliding folding shutter doors

L20/60 Doors

Product range

Thermal

Specification data - Sliding door and partition sets

Performance

External.

Arrangement

Bi-parting.

Guidance for specification option:

Available up to 24 x 8 m.

Bunching to one side.

Guidance for specification option:

Available up to 12 x 8 m.

Track system

Top track: Galvanized steel rolled section, forming a box-type track on which pulleys run, mounted on the top of the door panels. A branch track is incorporated to allow the door to stack correctly; Bottom track: A galvanized steel bottom track is recessed into the floor and acts as a guide. Brass rollers connected to the bottom hinges run on a steel channel bottom track, which is set for alignment within a 200 x 75 mm chase before finally being grouted into position.

Door leaves

-

Construction

Constructed from double-skin steel sheets infilled with high-density insulating material. Panels are typically 40–65 mm thick, and are manufactured in various designs to suit clients’ individual requirements. Partially or fully glazed versions are available.

Finish and colour

Colorcoat HP 200.

Galvanized.

Guidance for specification option:

Standard.

Polyester powder-coated, RAL .

Guidance for specification option:

Insert requirement.

Operation

Powered.

Guidance for specification option:

Electrical via a 400 V, three-phase geared motor, mounted on the top track at one or both ends. Push-button controls are provided at low level

Accessories

None.

Cut-outs for runway beams.

Double-glazed vision panels.

Safety photocells.

Ventilation louvres.

Wicket door.

Weight

45 kg/m².

Guidance for specification option:

Typically 45 kg/m², varies dependent on door construction.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Carbon steel

Guidance for specification option:

Galvanized steel with ethylene propylene diene monomer (EPDM) seals.

Manufacturing plant location

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

25 year
