Integrated Hoods
Verified by manufacturer 2 days ago

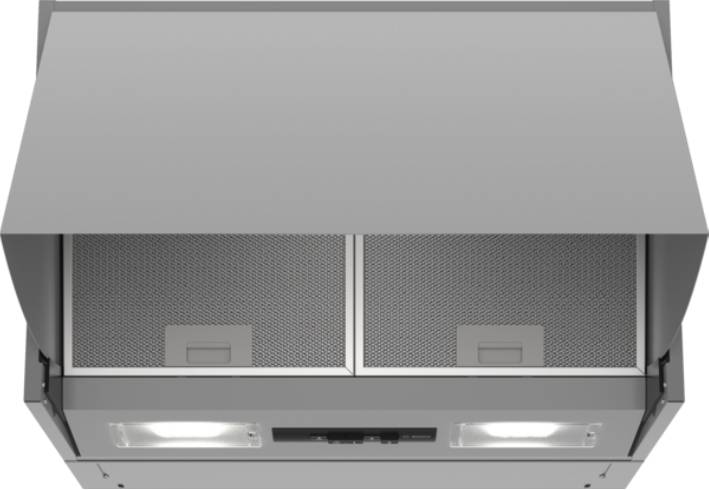

Integrated cooker hood, 60 cm, silver.
Application
For domestic applications.
Description
Integrated cooker hoods pull out when used and close neatly to conceal when not in operation.
60 cm, three speeds, LED lights, high extraction rate. Optional standard recirculation filter: DWZ0IM0A0.
Features and benefits:
- Three-speed power level options to suit your cooking style and recipes.
- Ducted or non-ducted options.
- Energy efficiency class: B.
General information
Color | Silver |
Shape | Rectangle |
Length | 271 mm |
Width | 599 mm |
Height | 402 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Kitchen extractor hoods
Standards | |
Performance testing | To EN 61591. |
Operation | Extraction.Recirculation.Guidance for specification option: For recirculated extraction charcoal filter (accessory) needed. |
Installation | Wall-mounted. |
Material and finish | Metallic silver. |
Dimensions | |
Width (maximum) | 599 mm. |
Depth (maximum) | 271 mm. |
Height | 402 mm. |
Capacity (minimum) | 625 m³/h (maximum). |
Controls | Push button control for extractor speeds and light. Three power levels. |
Features | Two 3 W LEDs, single motor, two removable metal grease filter cassettes. |
Rating | 0.256 kW. |
Electrical supply | 220–240 V, 50/60 Hz. |
Noise level at 1 m (maximum) | 70 dB(A). |
Accessories | None.DWZ0IM0A0 Standard odor filter (replacement). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

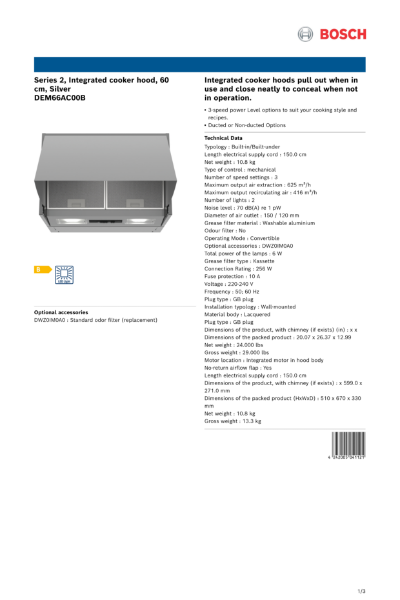

Series 2, Integrated cooker hood, 60 cm, Silver DEM66AC00B
