Intellimix Panel Mounted Basin Tap
Verified by manufacturer today
AA - Chrome Finish
AA - Chrome Finish
WRAS
Certificate type
NSF International
Certificate type
Intellimix Panel Mounted Basin Tap with integral soap dispenser available in two finishes, reducing running costs, improving sustainability and making maintenance simple.
Application
Suitable for applications in a range of sectors including:
- Education.
- Offices.
- Washrooms.
Description

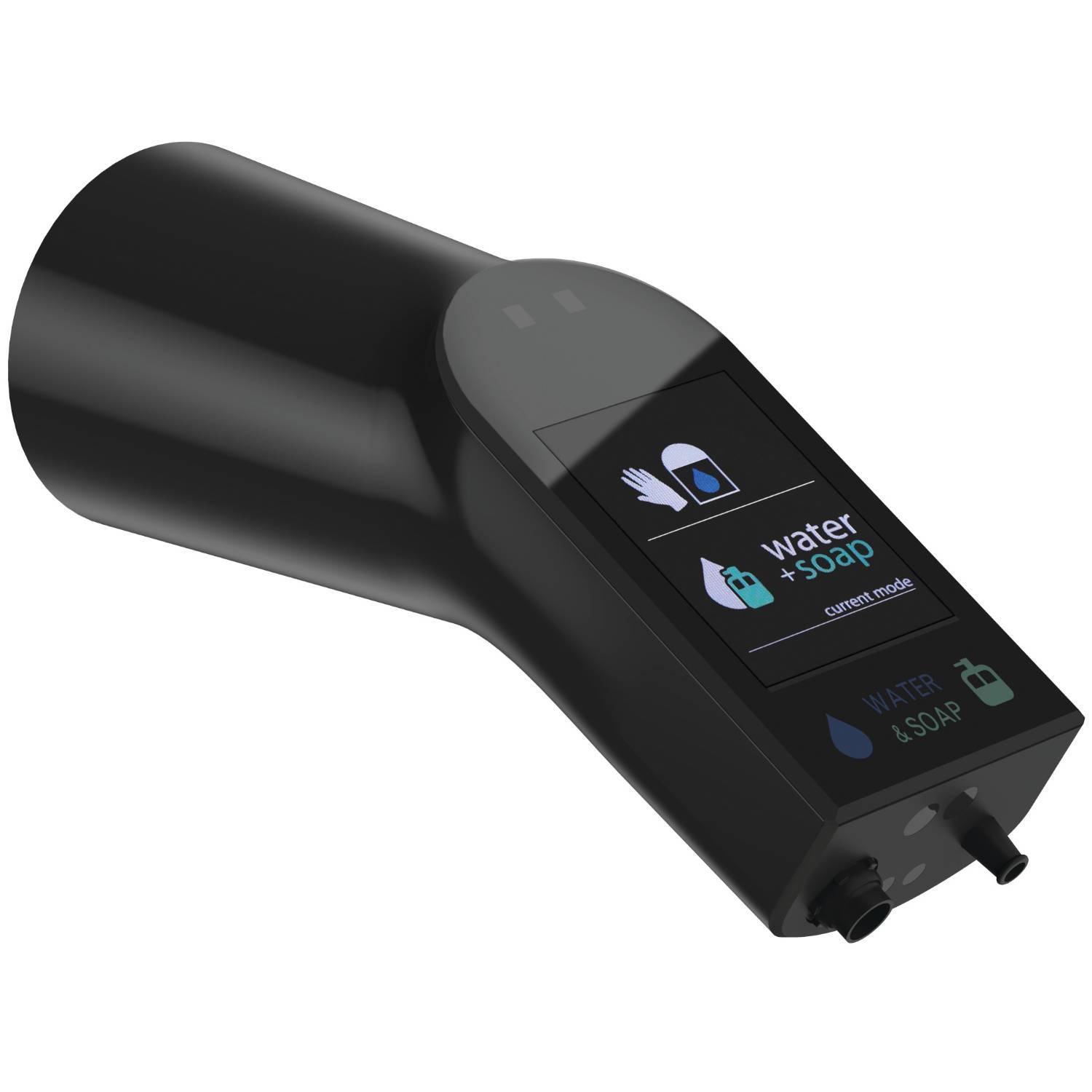

Intellimix Panel Mounted Basin Tap with integral soap dispenser
This combined tap encourages users to always wash with soap, which the World Health Organisation recommends as the most important measure we can take to avoid getting sick and spreading infections.
Intellimix® doesn’t just deliver hygiene, it also reduces running costs, improves sustainability, and even makes maintenance simple.
Features and benefits:
- Improved hygiene.
- Lasting savings.
- Next-gen sustainability.
- Designed for better.
- Two finish options.
- Utilizes physical vapor deposition (PVD) technology.
- Water saving.
General information
Color | Black |
Finish | Chrome Satin |
Material | Metal Brass |
Shape | Other |
Length | 162 mm |
Width | 60 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
SKU Code | A7708AA |
GTIN/EAN | 4015413351690 |
Specification data - Combined tap and soap dispensers
Classification data | |
Standard | To EN 248. To EN 15091. To DIN 4109-1. |
Approvals | NSF Reg4 S3 certified. WRAS approved. |
Form | |
Tap | Automatic-action thermostatic mixer taps. |
Soap dispenser | Automatic-action integrated soap dispenser. |
Operation | |
Tap | |
Activation | Manual touch-free. |
Soap dispenser | Automatic sensor. |
Timer | Adjustable. Guidance for specification option: Adjustable via app. |
Flow rate (maximum) | 1.9 L/min at 3 bar. |
Electrical supply | |
Rated operational voltage (Ue) | 230 V. Manufacturer guidanceSupply voltage connection. |
Body | |
Material | Brass. |
Finish | Chrome-plated. |
Colour | AA - chrome. |
Ingress protection (minimum) | IP67. |
Dimensions | 60 x 162 mm. Manufacturer guidanceWidth x projection. |
WorkingPressureRange | 0.5–10 bar. |
Fixing | Panel mounted, EasyFix. |
Net weight | 3.18 kg. |
Sustainability data
Material | Metal Brass |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
WRAS
WRAS - Combination Tap Assemblies
NSF International
NSF - A7512AA/B3 Intellimix and A7708AA/B3 Intellimix
Literature
Literature type
Intellimix Panel Mounted Basin Tap - Data Sheet
Intellimix Brochure
