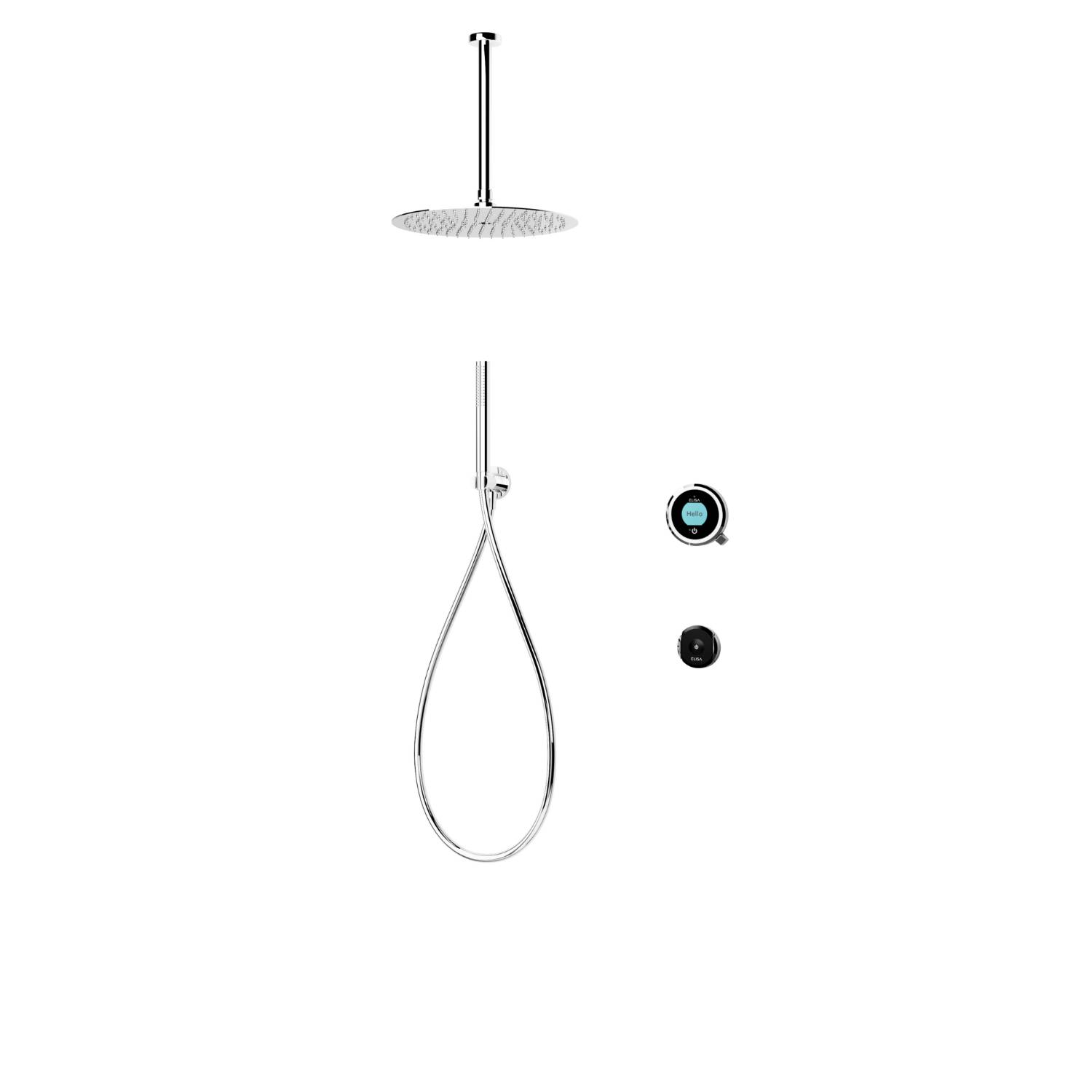

Intuition Divert Concealed Hand Shower with Ceiling Fixed Heads with Remote GP

Verified by manufacturer 9 months ago

INN.A2.BV.HSFC.21

Elisa™ Variant:

Divert concealed hand shower with ceiling fixed heads and remote GP.

Jump to:
+44 (0)1959 560003 Website

Application

Suitable for low pressure/ gravity pump water systems.

Description

The accuracy and reliability of digital technology means the highest level of control and convenience from this top of the range shower system.

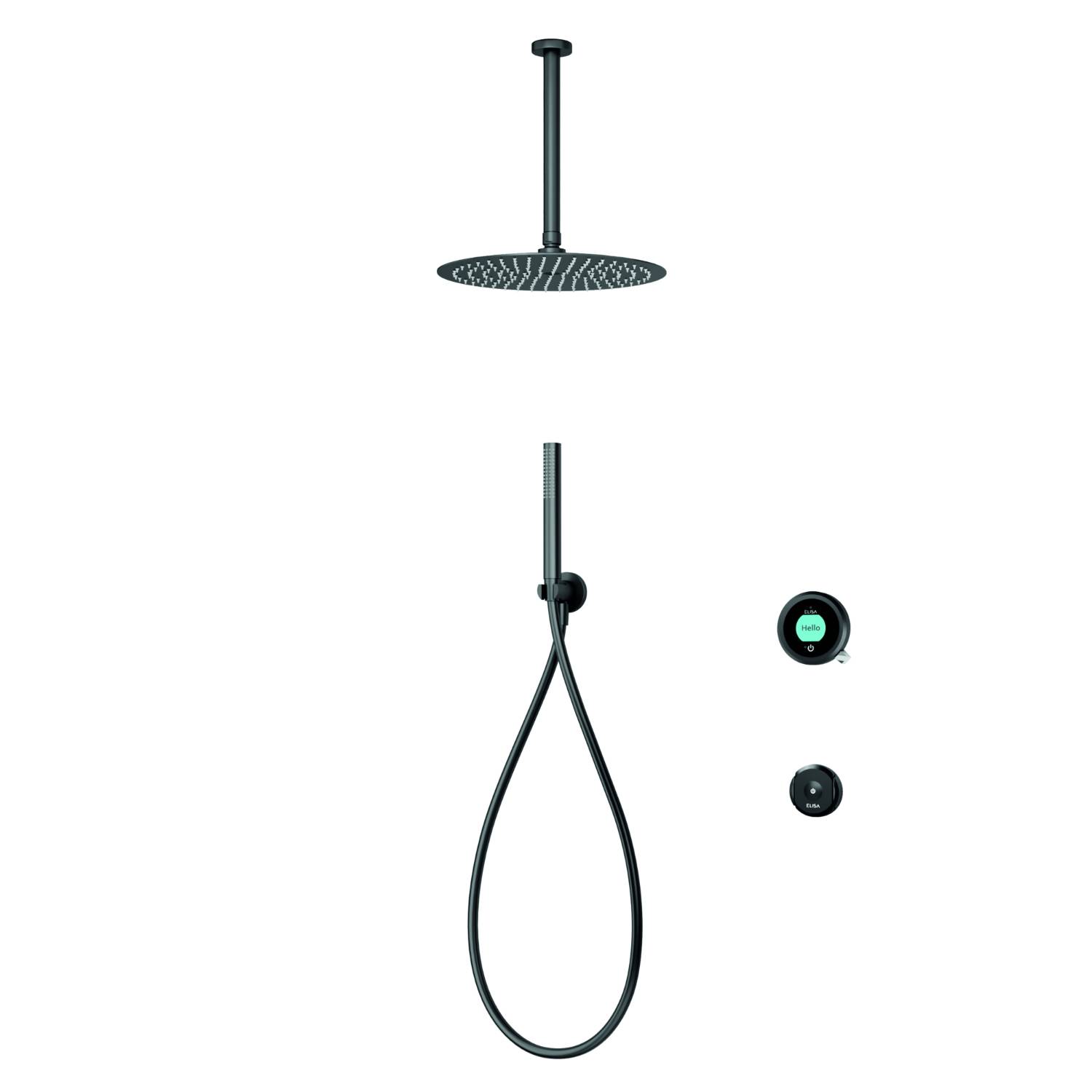

Available in polished chrome, matt black and brushed brass, the choice of contemporary colours and finishes ensure this smart shower combines stylishly with every bathroom design.


As well as the wireless remote device close to the showering area, App and voice activation allow remote operation from anywhere. Select and pre-set personal shower profile that will automatically ‘wake-up’ as the individual approach and get to exactly the right temperature and flow for the perfect shower every time.

The built-in smart valve makes a meaningful eco-contribution that doesn't compromise the shower experience.


Features and benefits:

  • Wifi, mobile app, Google Home and Amazon Alexa enable the user to control their shower remotely.
  • Safe and satisfactory thermostatic showering with adjustable maximum temperature.
  • Glide temperature control for simplistic use.
  • Auto wake up' when approaching the controller.
  • Timer feature allows the user to set the shower duration.
  • Switch between the hand shower and 300 mm fixed ceiling drencher at the touch of a button.
  • Includes wireless remote control.
  • Selectable eco mode via the App or controller.

General information

Color

Black

Silver

Guidance for specification option:

Chrome.

Other

Guidance for specification option:

Brass.

Finish

Gloss

Matt

Brushed

Material

Metal

Plastic

Shape

Other

Length

1500 mm

Guidance for specification option:

Hose length.

Width

300 mm

Guidance for specification option:

Fixed shower head.

Warranty description

Five year

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/41 Shower heads

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package

Form

Concealed wall-mounted shower mixer valve, flexible hose, spray handset and ceiling head.

Materials

-

Body

Metal and plastic.

Finish and colour

Gloss chrome.

Flow rate (maximum)

10—16 L/min.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Minimum: 5°C.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Remote control

67 x 67 x 20 mm.

HoseLength

1500 mm.

Hose

Plastic.

Shower head

300 mm.

Manufacturer guidance

Fixed Head Width.

Arm length

500 mm.

Manufacturer guidance

Fixed head arm length.

Weight

7.79 kg.

Bar

0.1—1 bar.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Thermostatic Valve

Digital valve assembly.

Divert

Yes.

Electrical requirements

240 V.

Power Levels

Three.

Batteries

Lithium ion 3.6 v, 35 g.

Cable entry

Rear.

Water supply

Rear.

Spray Patterns

One.

Manufacturer guidance

Handset / drencher spray patterns.

Sustainability data

Contains Red List materials

No

Country of product manufacture

China

Literature

Elisa Incite and Intuition Brochure 01

Elisa Incite and Intuition Brochure 01

Similar products from Elisa™

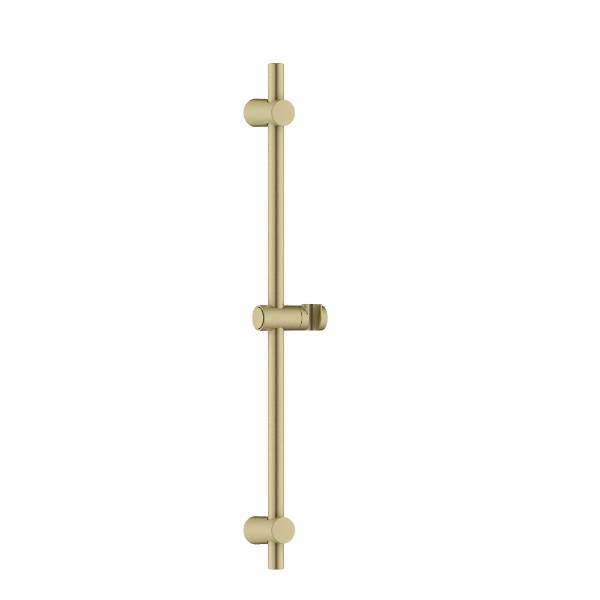

Elisa Adjustable 680 mm Shower Rail Kit

Elisa Adjustable 680 mm Shower Rail Kit

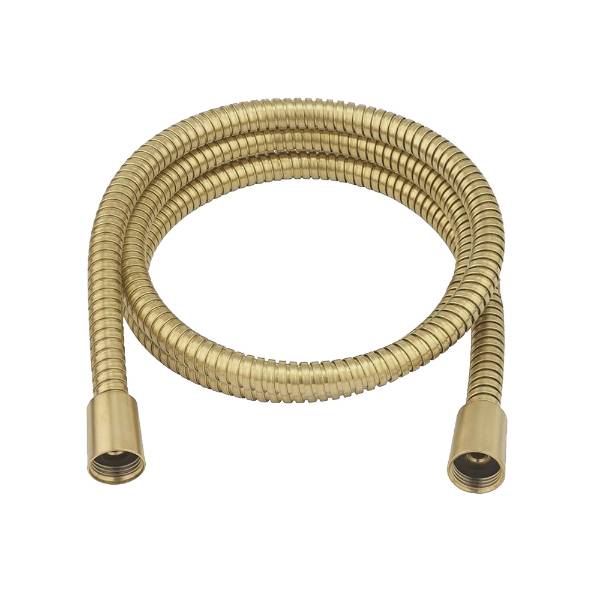

Elisa Metal 1.5 m Hose

Elisa Metal 1.5 m Hose

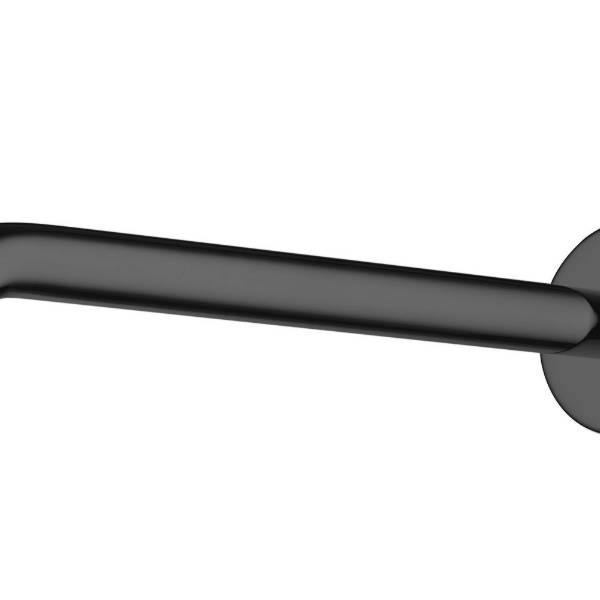

Elisa Round Wall Mounted 400 mm Easy Fit Arm

Elisa Round Wall Mounted 400 mm Easy Fit Arm

Elisa Round Wall Outlet

Elisa Round Wall Outlet

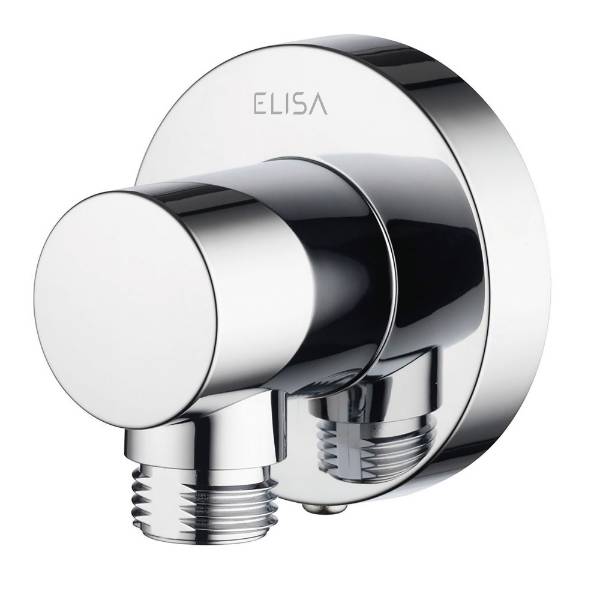

Elisa Round Wall Outlet With Combined Hand Shower Holder

Elisa Round Wall Outlet With Combined Hand Shower Holder

Elisa Smooth 1.5 m Hose

Elisa Smooth 1.5 m Hose

Incite Concealed Adjustable with Remote HP/Combi or Remote GP

Incite Concealed Adjustable with Remote HP/Combi or Remote GP

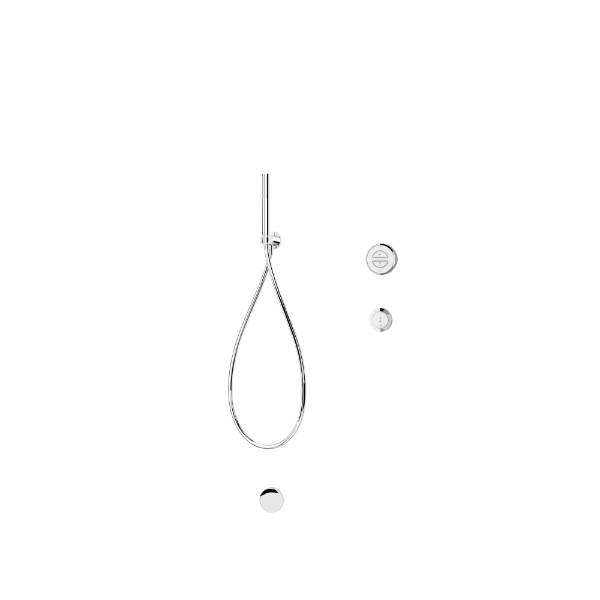

Incite Divert Concealed Hand Shower with Bath and Remote HP/Combi or Remote GP

Incite Divert Concealed Hand Shower with Bath and Remote HP/Combi or Remote GP

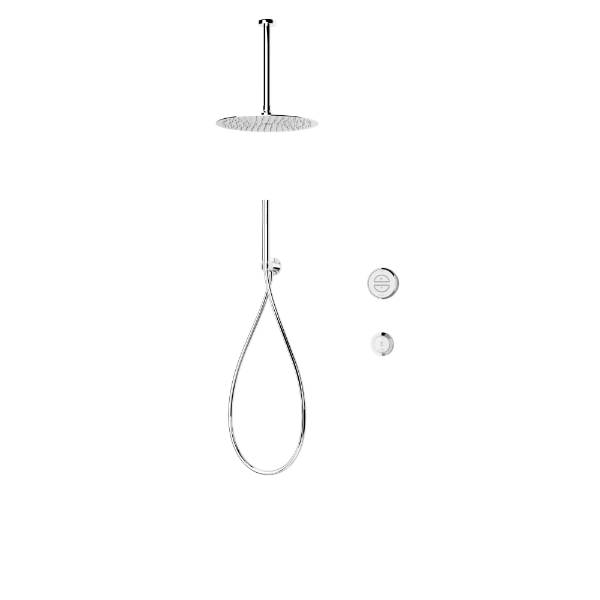

Incite Divert Concealed Hand Shower with Ceiling Fixed Heads with Remote HP/Combi or Remote GP
