Italia-Corten - Weathering Steel Louvre Cladding Barrier

Verified by manufacturer 21 hours ago

Italia/80 Corten

Lang+Fulton Variant:

A steel louvre made from Corten steel with a linear aesthetic, providing visual screening for wall cladding and compounds.

Jump to:
+44 (0)131 441 1255 Website

Application

Suitable for a wide variety of applications such as wall cladding, car park screens, compounds, plant housing, ventilation grilles, balustrades, roof screening, bin stores and cycle hubs.

Description

A louvred cladding system manufactured from Corten steel with a linear aesthetic, providing visual screening for wall cladding and compounds.


Features and benefits:

  • Made either with overlapping louvres for 100% visual screening, or with a shorter profile for 80% visual screening.
  • Horizontal louvres as standard.
  • Available with vertical louvres to provide a variable degree of visual screening, depending on the angle of view.
  • The steel construction creates a robust panel suitable for ground and street-front locations, as well as roof-top and elevated situations.
  • The louvre profile is formed from triple flanged flat bars which form a continuous linear aesthetic.
  • The louvres are secured by electrofusion to 4 mm diameter vertical round bars.
  • Panels can be designed with the louvre blades sloping upwards, which provides more effective visual screening for roof-top installation when viewed from ground level.
  • The Corten steel requires no finishing; it develops a stable rust-like patina.
  • The layer protecting the surface develops and regenerates continuously when subjected to the influence of the weather.
  • Over the course of time, it changes from russet to sand brown and finally to dark brown.

General information

Color

Brown

Guidance for specification option:

Changes from russet to sand brown and finally to dark brown over time.

Orange

Red

Other

Finish

Natural

Pre-treated

Manufacturer guidance

Requires no finishing; it develops a stable rust-like patina.

Material

Steel

Guidance for specification option:

Corten steel S355JOWP.

Cor-Ten

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_48_13 Carbon steel louvre panel unitsPrimary

CAWS

H31/10 Metal

H31/120 Metal

L10/60 Security

L10/650 Metal louvres

L10/690 Security

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Product range

Cladding Panels and Screening

Specification data - Carbon steel louvre panel units

Material

Mild steel S235JR and Corten steel S355JOWP.

Panel Type

Italia/80 Corten.

Guidance for specification option:

Provides 80% visual screening.

Orientation

Horizontal louvre blades sloping downwards on the outside of the enclosed area.

Guidance for specification option:

Standard.

Vertical louvres.

Guidance for specification option:

Provides a variable degree of visual screening, depending on the angle of view.

Bird/ Insert screen mounting

Not required.

Blanking plate.

Bird screen.

Insect screen.

Manufacturer guidance

Panels can be framed with an angle section on all four sides, to provide a mounting surface for bird and insect screens or blanking plates.

Framing

Flat bar.

Angle section.

Manufacturer guidance

  • The panels are framed on two sides.
  • Size determined by application.

Fixing

Behind louvre at 90 degrees through angled framing bar.

Through flat framing bar.

Manufacturer guidance

Panels bolted to posts or sub-structure on both sides.

Other requirements

Not required.

Shaped to suit non-uniform openings.

Guidance for specification option:

The integrity of the raw material allows it to be cut or shaped to suit non-uniform openings.

Rolled to a radius.

Guidance for specification option:

Vertical louvres can be rolled to a radius.

Screen panel

80%.

Manufacturer guidance

Visual screening.

Accessories

Not required.

Secondary support steelwork.

Guidance for specification option:

Designed and supplied as required.

Fixing to parent structure

M10 stainless steel bolts, grade A2.

Guidance for specification option:

Panel fasteners.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.42 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Literature

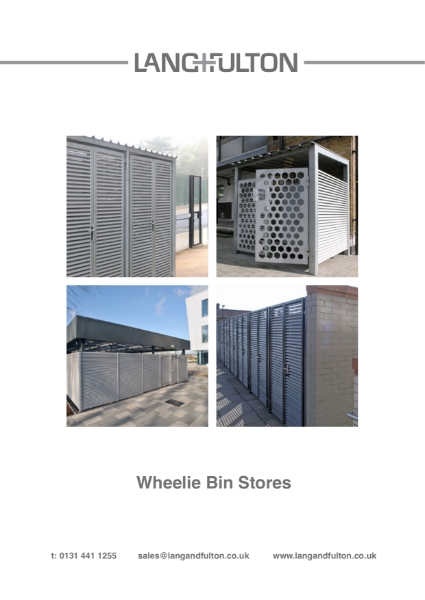

Wheelie Bin Stores and Bike Storage

Wheelie Bin Stores and Bike Storage

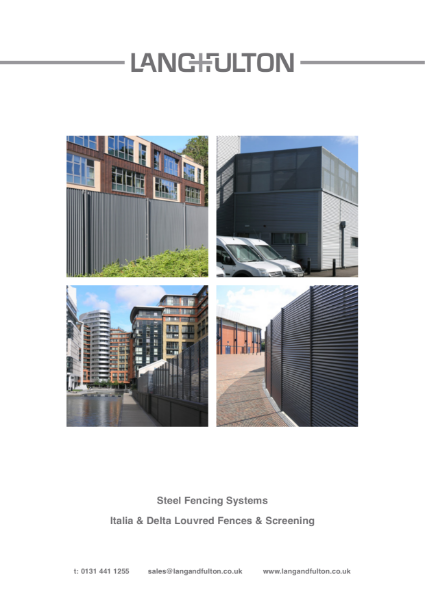

Louvred Fencing and Compounds

Louvred Fencing and Compounds

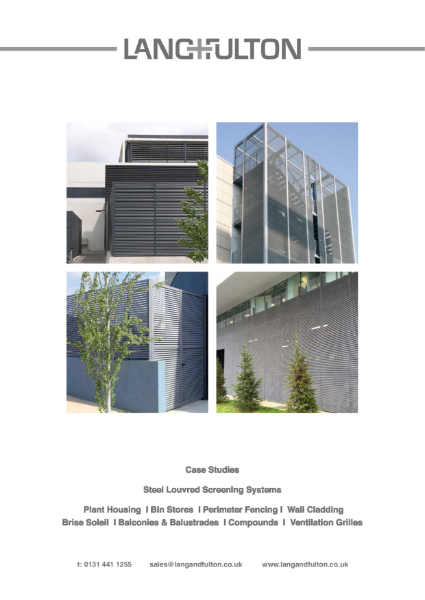

Case Studies: Steel Louvred Screening, Plant Housing, Bin Stores & Fencing

Case Studies: Steel Louvred Screening, Plant Housing, Bin Stores & Fencing

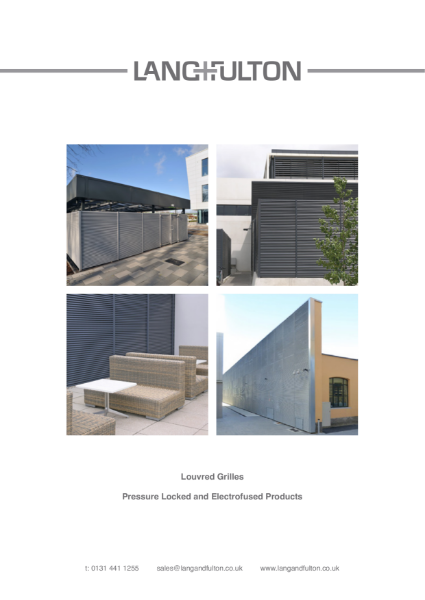

Louvred Gratings for Screening, Ventilation and Security

Louvred Gratings for Screening, Ventilation and Security

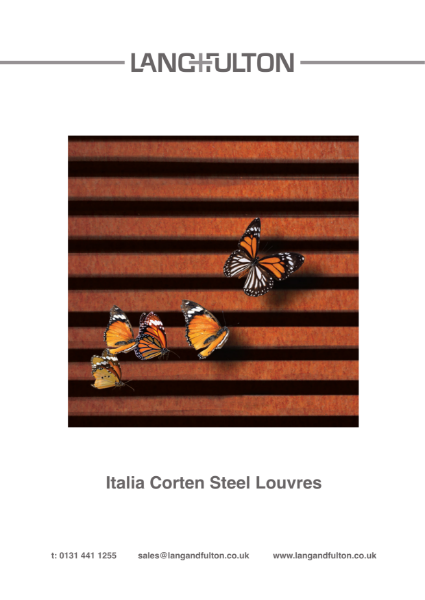

Italia Corten Steel Louvres

Italia Corten Steel Louvres

Case studies

Italia-Corten Steel Louvres contrast with Stainless Steel Mesh

Italia-Corten Steel Louvres contrast with Stainless Steel Mesh

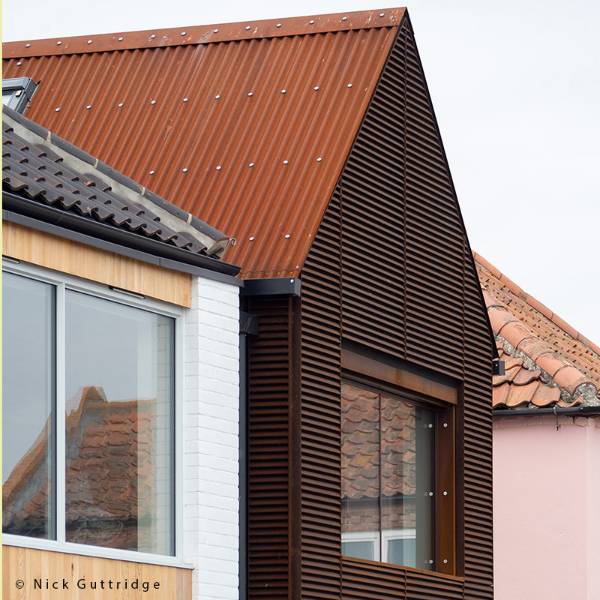

Italia-Corten for Private Housing Project Norfolk Coast

Italia-Corten for Private Housing Project Norfolk Coast

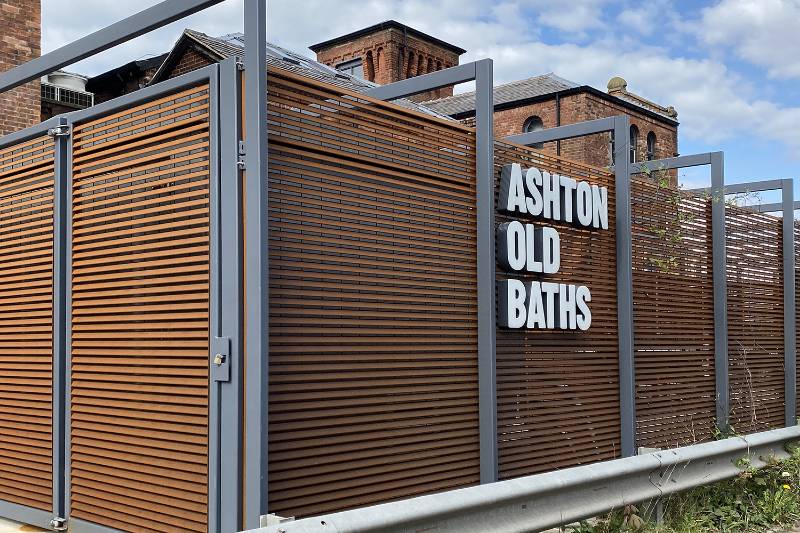

Corten Steel Louvres chosen to match Heritage Site
