Italia Wheelie Bin Stores - Steel louvre privacy secure compound

Verified by manufacturer 2 days ago

Europa-2

Lang+Fulton Variant:
Third party certifications:
  • BS EN 1090-1

    BS EN 1090-1

    Certificate type

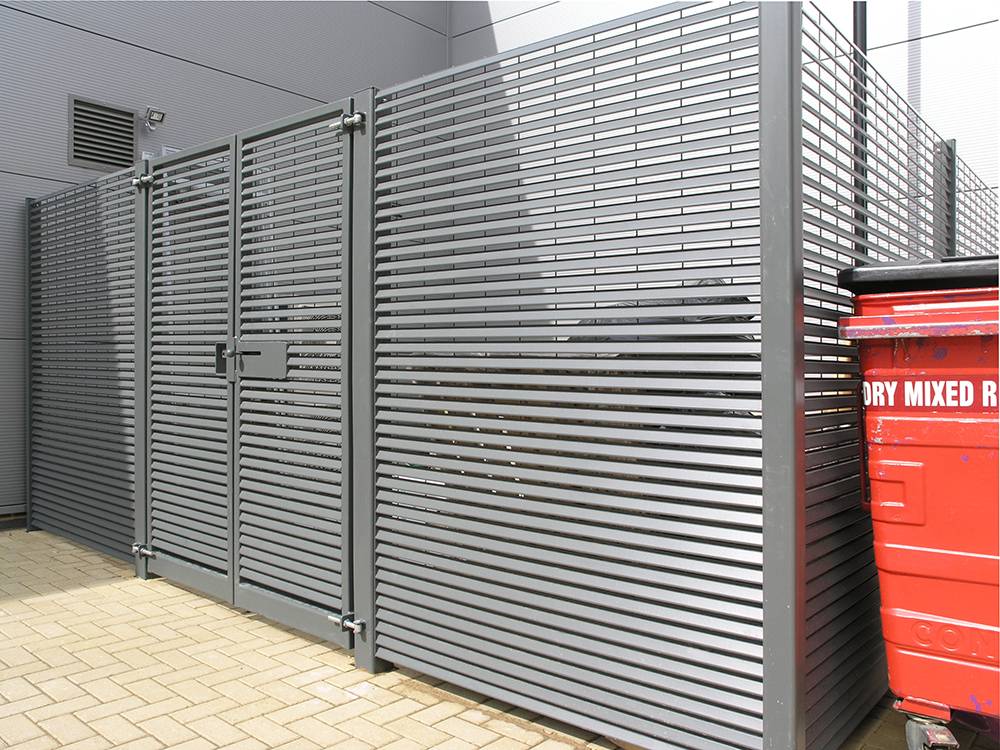

Wheelie bin stores with a robust steel construction made from louvered panels.

Jump to:
+44 (0)131 441 1255 Website

Application

Suitable as bin stores.

Description

Italia louvre bin stores have a solid steel construction to withstand the wear and tear of regular bin collection. With clean and simple lines, the louvres provide visual screening and security, as well as ventilation, natural daylight and anti-climb properties.


The Europa range of standard designs has been developed, making efficient use of modular components. Lang+Fulton also specialize in the design of bespoke wheelie bin stores and compounds to suit a particular requirement or location.


Features and benefits:

  • Available with or without roofing in 3 different sizes to accommodate 2, 4 or 6 number wheeled 1100 litre Eurobins, all with double door access.
  • Bin stores are supplied as a complete package which includes all support steelwork, accessories and fabrication drawings for quick assembly: RHS posts, SHS corner posts fitted with base plates, doors with euro-profile cylinder Locinox locks.
  • Italia-80 louvred cladding and infill panels are supplied as standard, providing 80% visual screening and 36% free area for ventilation.
  • Italia-100 is available on request for 100% visual screening.
  • All steelwork is hot-dip galvanized for optimum durability.
  • In addition, an optional polyester powder coating can be provided in any RAL colour.

General information

Color

Beige

Grey

Guidance for specification option:

Galvanized.

Other

Guidance for specification option:

Hot-dip galvanized and polyester powder coated option to any RAL colour.

Black

Blue

Show more

Manufacturer guidance

Hot-dip galvanized and polyester powder coated option to any RAL or BS colour.

Finish

Galvanized

Guidance for specification option:

Hot-dipped to BS EN ISO 1461.

Powder-coated

Guidance for specification option:

Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438.

Material

Steel

Cor-Ten

Shape

Rectangle

Guidance for specification option:

Modular.

Length

Bespoke

Width

1500 mm

Guidance for specification option:

Europa-2.

3750 mm

Guidance for specification option:

Europa-4.

5670 mm

Guidance for specification option:

Europa-6.

Height

3700 mm

Guidance for specification option:

Europa-2.

3750 mm

Guidance for specification option:

Europa-4 and Europa-6.

Uniclass

Pr_40_50_07_07 Bin storesPrimary

CAWS

B91/395 Storage unit

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Product range

Cladding Panels and Screening

Specification data - Bin stores

Dimensions

3700 x 1500 mm.

Guidance for specification option:

Bespoke sizes available, insert requirements.

Manufacturer guidance

W x D.

Material

Mild steel S235JR.

Accessories

Not required.

Roofing, Plastisol coloured finish.

Guidance for specification option:

For additional security and to deter birds, made from single skin profiled steel with Plastisol coloured finish.

Rain-water gutters.

Bump rails.

Locking padlock and sliding latch.

Panel Type

Italia-80.

Guidance for specification option:

80% visual screening.

Italia-100.

Guidance for specification option:

100% visual screening.

Italia-Corten.

Fixing

Behind louvre at 90 degrees through angled framing bar.

Through flat framing bar.

Other requirements

Not required.

Shaped to suit non-uniform openings.

Finish:

Hot-dip galvanized.

Guidance for specification option:

To BS EN ISO 1461.

Hot-dip galvanized and polyester powder coated, RAL.

Guidance for specification option:

  • Insert colour requirement.
  • To BS EN ISO 1461 and polyester powder coated to BS EN 13438 in any RAL or BS colour.

None (Corten).

Capacity

2 x 1100 L Eurobins.

Height

2000 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.42 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Third party certifications

BS EN 1090-1

BS EN 1090-1

UKCA CE Mark Certificate of Factory Production Control
