IWA 14 HVM Shallow Static Terra Jupiter Bollard - 7.2t at 50 mph - Anti-Terrorist Static Bollard

Verified by manufacturer 4 months ago

Frontier Pitts Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

IWA 14 HVM shallow static bollard – 7.2t at 50 mph. Impact rated

Jump to:
+44 (0)1293 548301 Website

Application

Suitable for high-security sites where there is limited foundation depth (typically inner city); however, a complete HVM perimeter is required. Also, public realm, crowded places and pedestrian areas where vehicles are not permitted. Shallow static HVM bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2 m maximum distance between upright faces.

Description

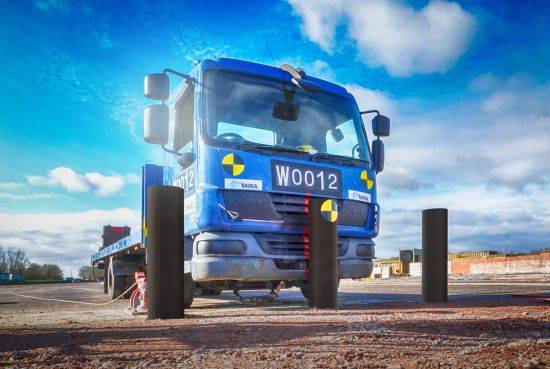

The Shallow Static Terra Jupiter Bollard is a hostile vehicle mitigation (HVM) Terra bollard which has been impact-tested to the International IWA 14 Specification, stopping a 7.2-tonne vehicle travelling at 50 mph. IWA 14 Classification Code: V/7200[N2A]/80/90:8.7 Impact tested in a set of three bollards. A range of sleeves finishes and tops also available. Static HVM Terra bollards have been proven to stop vehicles, providing HVM, counter-terrorist, impact-resistant barriers preventing vehicle as a weapon attack.


Features and benefits:

  • All made to order.
  • A Secured by Design and PSSA verified product.
  • Listed on the CPNI List of IWA 14 and PAS 68 products.

General information

Finish

Painted

Guidance for specification option:

Shotblasted, hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrially non-polluted inland sites to BS 5493.

Other

Material

Steel

Guidance for specification option:

Core: Mild (carbon) steel.

Width

273 mm

Height

1000 mm

Warranty description

One year

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Product range

Anti Terra HVM (Hostile Vehicle Mitigation) IWA14 & PAS68

Specification data - Carbon steel bollards

Standard

IWA14-1 IWA14-2.

Dimensions

-

Size and profile

273 mm diameter.

Height

1000 mm.

Length below ground

200 mm.

Post top

Flat.

Mitre.

Semi-domed.

Finishes

-

Worked finish

Shot blasted.

Applied finish

Polyester powder coated.

Guidance for specification option:

Hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrially polluted inland sites to BS 5493.

Colour

Guidance for specification option:

Insert RAL requirement.

Sleeve

Stainless steel 1.4303 (308) grade.

Stainless steel 1.4401 (316) grade.

Stainless steel bead blasted.

Reflective banding

None.

Recessed/ Surface.

Single/ Double.

Post foundations

Embedment 200 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Secured By Design

Secured By Design

Secured by Design accredited

Literature

IWA 14 & PAS 68 Terra Bollards

IWA 14 & PAS 68 Terra Bollards

IWA14 Shallow Static Terra Jupiter Bollards

IWA14 Shallow Static Terra Jupiter Bollards
