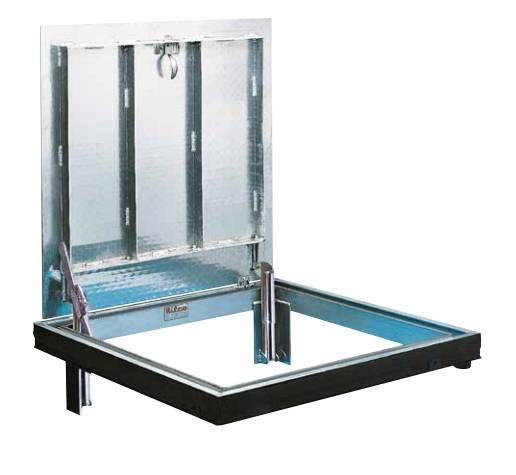

J-AL Floor Access Doors with Drainage (SINGLE LEAF)

A range of single leaf drainage doors designed for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening. These units are supplied with a threaded drain coupling, fully welded to the channel frame, for connection to a dry or wet well in the field.

The doors are constructed of 6.35 mm aluminium diamond pattern plate and reinforced for a 1464 kg/m² live load; and features all anti-corrosion hardware, standard debris gasket and a versatile anchoring system for ease of installation.

Features and benefits:

• 38 mm drain coupling welded beneath the frame.
• Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
• Adjustable anchor tabs.
