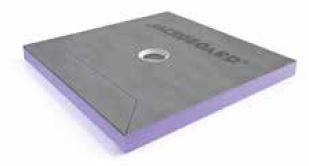

JACKOBOARD® Aqua Reno Shower Tray - Shower Tray

Verified by manufacturer 6 months ago

4512256 - 900 x 900 mm

BEWI Construction (JACKOBOARD & ICF THERMOUR) Variant:

Shower element with integrated drainage system.

Jump to:
BOS
+44 (0)120 4221089 Website

Application

Suited as a barrier-free system solution for bath renovation in existing construction.

Description

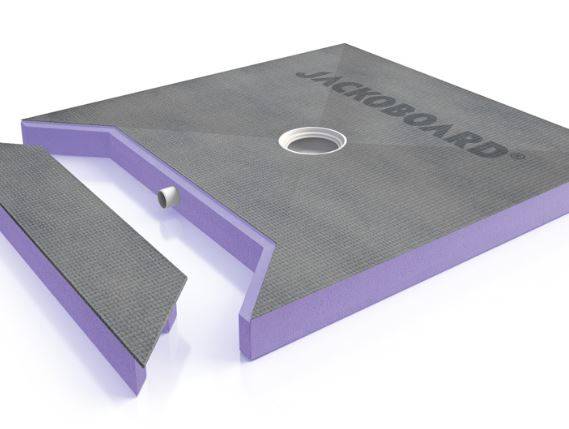

Level access system solution for fast renovation. Minimal installation height of just 65 mm and drainage system integrated within the shower element, JACKOBOARD® Aqua Reno shower elements are particularly suited for renovation work with a low floor installation height or where the existing floor cannot be disturbed. They have a waterproof core made of extruded polystyrene foam (XPS) and a special coating on both sides that permits direct tiling without the need for additional preparatory work. Integrated floor drain eliminates the need disturbing the floor – therefore saving time and money during installation.


Features and benefits:

  • COMPLETE manufacturing process controlled by JACKON BY BEWI, resulting in value engineered price points to aid the QS stage of the project.
  • Manufactured in Germany with healthy UK stock.
  • Made of extruded polystyrene foam.
  • Waterproof
  • Tiles can be applied directly.
  • Minimal installation height that start from just 65 mm.
  • Incorporated drainage fall.
  • Square or rectangular shape.
  • Dimensions: 900 x 900, 1400 x 900 and 1800 x 900 mm.
  • Custom shapes and sizes available on request.
  • Excellent thermal insulation properties λD = 0.035 W/(m·K).
  • Drainage flow rate 0.5 l/s.
  • Water trap height: 22 mm.
  • Wheelchair-accessible.
  • Compressive strength >300 kPa.
  • With integrated drainage system.
  • Supplied complete with high-quality stainless-steel grate.

General information

Color

Purple

Grey

Finish

Coated

Guidance for specification option:

Reinforced cementitious coating.

Material

High density extruded polystyrene (XPS)

Stainless steel

Shape

Square

Rectangle

Length

900 mm

1400 mm

1800 mm

Bespoke

Width

Bespoke

Height

65 mm

75 mm

Warranty description

25 year

Uniclass

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/377 Wet room showers

N13/40 Shower units

N13/45 Wet room showers

N13/43 Shower trays

Specification data - Shower trays

Form

Square.

Materials

-

Body

Extruded polystyrene foam.

Finish and colour

Reinforced cementitious coating.

Size

900 x 900 mm.

Waste hole

Centre.

Integral accessories

JACKOBOARD® 2K tray sealing kit.

Centres

450/450.

Manufacturer guidance

Drain centre from the edge.

Drain

Solid brushed, stainless-steel grate.

Thickness

65 mm.

CompressiveStrength

300 kPa.

Fall

Integrated.

Fire performance

Euroclass E.

Thermal conductivity (maximum)

0.034 W/(m.K).

Manufacturer guidance

Thermal conductivity (λD) according to EN 13164 (XPS core).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
