Application

For fast, easy cladding of all standard bathtub models and for further processing and finishing directly with tiles, plaster or filler compound.

Description

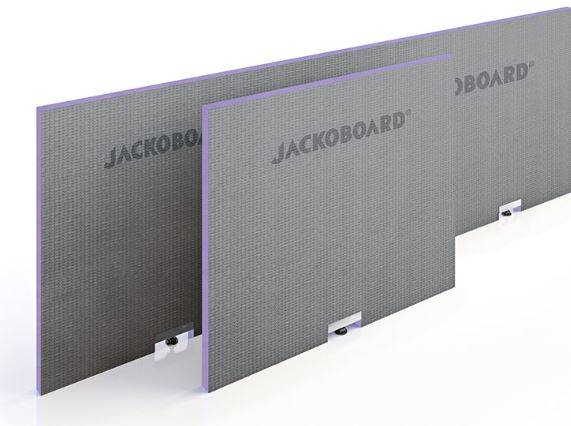

JACKOBOARD® Wabo tub construction elements are specially designed for the easy and time-saving cladding of bathtubs. They are easy to work with and their four different formats and height-adjustable feet facilitate the cladding of all standard bathtub models. With their waterproof extruded polystyrene (XPS) foam core and special coating on both sides, they can be finished directly with tiles, plaster or filler compound.


Features and benefits:

  • Complete manufacturing process controlled by JACKON BY BEWI, resulting in value engineered price points to aid the QS stage of the project.
  • Manufactured in Germany with healthy UK stock.
  • Bath panel for bathtub paneling.
  • Easy to install.
  • Easy to work with.
  • Can be trimmed to size.
  • Reinforced cement on both sides.
  • Includes adjustable feet.
  • Can be covered directly with tiles, plaster or render.
  • Made of extruded polystyrene foam.
  • Waterproof.
  • With special coating on both sides.
  • Low weight, approx. 3—6 kg/m².
  • Thickness: 30 mm.
  • Excellent thermal insulation properties with λD = 0.035 W/(m·K).
  • High compressive strength >300 kPa.
  • For rooms subject to high moisture loads.

General information

Color

Purple

Grey

Finish

Coated

Guidance for specification option:

Reinforced cementitious coating.

Material

High density extruded polystyrene (XPS)

Shape

Rectangle

Length

2100 mm

1850 mm

850 mm

Width

600 mm

Height

30 mm

Warranty description

25 year

Uniclass

Pr_40_20_76_07 Bath panelsPrimary
Pr_25_71_63_29 Extruded polystyrene (XPS) boards

CAWS

N13/356 Bath panels

Specification data - Bath panels

Form

Side.

End.

Materials

-

Body

Extruded polystyrene (XPS) foam core.

Finish and colour

Reinforced cementitious coating.

Integral accessories

Adjustable feet.

Length

2100 mm.

Width

600 mm.

Thickness

30 mm.

Weight

3—6 kg/m².

Thermal conductivity (maximum)

0.035 W/(m·K).

CompressiveStrength

>300 kPa.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
