JAKOB Living Green Wall – Rope & Rod - Living Green Wall

Verified by manufacturer today

MMA Architectural Systems Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

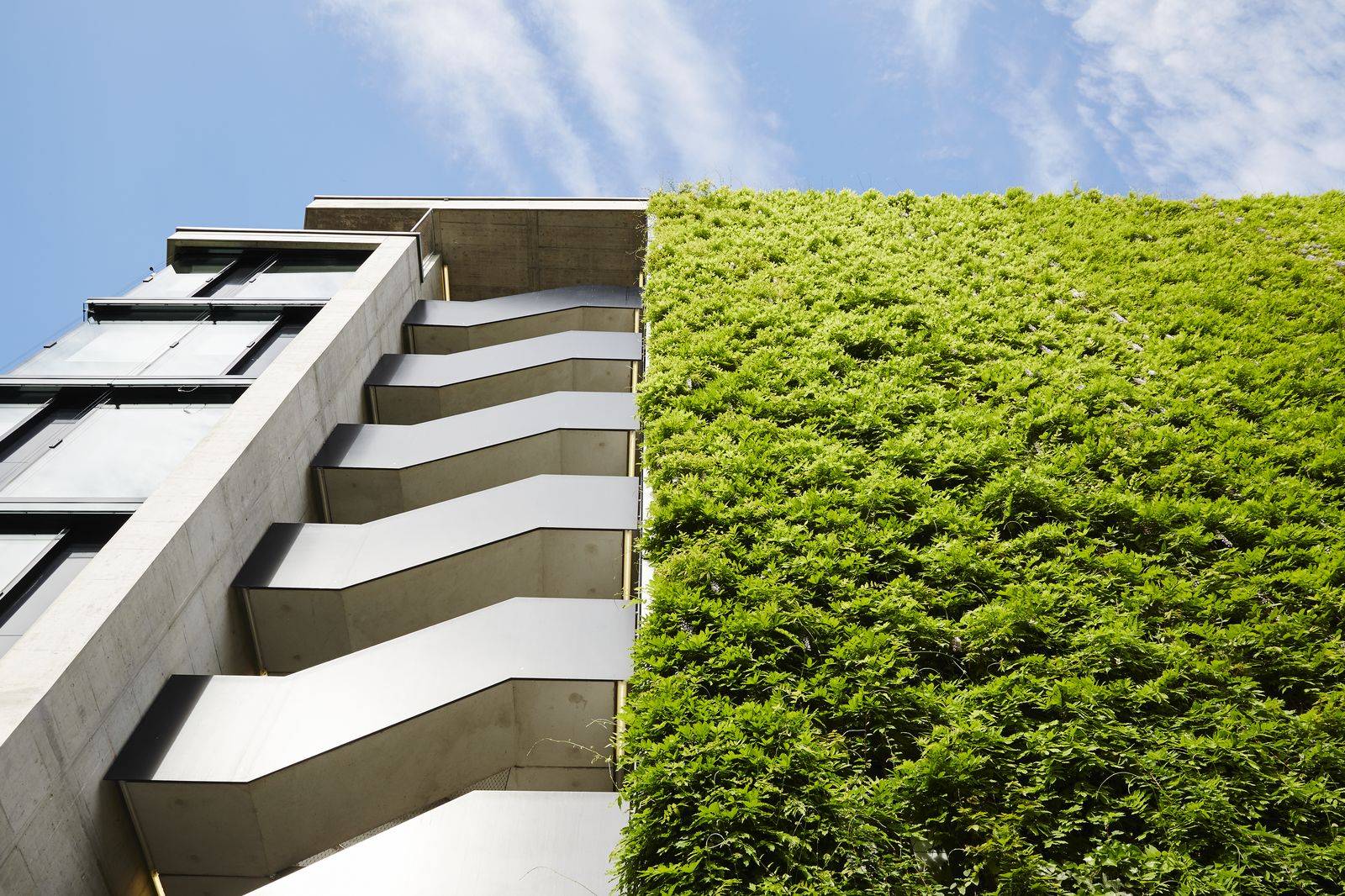

Stainless steel rope and rod trellis Green Wall system with Climbing Plants. Increases biodiversity and contributes towards sustainability goals. (Trellis Style).

Jump to:
01761 419427 Website

Application

  • For new build or retrofit projects.
  • Plant Types: suitable for climbers and scrambling plants. e.g. Trachelospermum Jasminoides (Star Jasmine) / Holboellia Latifolia (Sausage Vine).
  • Suitable for internal or external locations.
  • Fixing to masonry is straightforward, but attaching this type of green wall to cladding requires careful pre-planning and consideration of fixing locations. Manufacture can offer specification/technical advice on this.

Description

Green Wall – Rope and Rod Trellis, manufactured from 'marine grade' 316 stainless steel.


Using a combination of stainless steel ropes and rods the system creates a sustainable and cost-effective trellis, for climbing plants to form a Green Wall.


The Greening system is equally suited to new build and retrofit projects and can be made to virtually any desired size, with a range of fixings available for fitting to different substrates e.g. concrete, steel-work or brick-work.



Features and benefits:

  • Contributes towards sustainability and can be essential for planning.
  • Provides habitat for wildlife and can help improve biodiversity.
  • Greatly improves facade aesthetic.
  • In urban areas, green walls improve air quality by absorbing CO2, releasing oxygen, and trapping pollutants.
  • Jakob Green wall systems can reduce energy costs by up to 30% by providing insulation in winter and shading in summer, helping to regulate building temperature.
  • Green walls reduce noise by absorbing sound, making a positive impact for the building’s occupants and the local environment.
  • Stainless steel trellis parts are fully recyclable.
  • Climbing plants grow up the Green Wall system.
  • Significantly less maintenance required in comparison to pocket based systems. Irrigation systems can be provided if required.
  • Available in virtually any width, length, height or shape.
  • Plants are attached to the trellis structure instead of the building facade, preventing the facade from being permanently damp or causing damage to brickwork, render, etc.
  • Lightweight, easy and fast to install.
  • Flexibility - can be made to size on site.
  • The system has passed engineering calculations for numerous project applications.

General information

Color

Other

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_45_63_64_86 Tensioned wire trellisesPrimary

CAWS

Q31/420 Climbing plants

Specification data - Tensioned wire trellises

Cable

-

Material

316 grade stainless steel.

Configuration

300 x 300 mm grid spacing.

Guidance for specification option:

Standard.


Generally 300 x 300 Grid, but can be custom shaped. The horizontal element (rod) cannot be supported by the vertical rope any less frequently than 300 mm. If there are no horizontals rods, robes can be spread out at users preference.

Other.

Guidance for specification option:

Spacings greater than 300 x 300 mm are not recommended. While vertical spacings of up to 500 mm are permissible, horizontal spacings should not exceed 300 mm. Please specify any additional requirements.


Consult manufacturer for more details and insert requirements.

Manufacturer guidance

Generally 300 x 300 Grid, but can be shaped to your needs.

The horizontal element (rod) cannot be supported by the vertical rope any less frequently than 400 mm. If there are no horizontals. you may space the ropes apart as far as you wish.

Size (diameter)

4.0 mm (wire), 3.7 mm (rod).

Fixing brackets

-

Material

316 grade stainless steel.

Offset

100 mm.

150 mm.

200 mm.

Manufacturer guidance

Offset from wall or structure.

Accessories

Not required.

Wall mounted bird box.

Wall mounted bat box.

Wall mounted bee box.

Wall mounted bug hotel.

Clamps

Cross clamp, plastic.

Cross clamp, grade 316 stainless steel.

Manufacturer guidance

By selecting the stainless steel cross clamp, the Green Wall system becomes 100% recyclable.

Sustainability data

Contains Red List materials

No

Country of material origin

South Korea

Country of product manufacture

Switzerland

Material

Stainless steel

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.09 kg CO₂ eq/kg

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Expected Life

Lifetime

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Alcumus ISO 9001 Certificate 2022-2025

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Alcumus ISO 14001 Certificate 2022-2025

CHAS

CHAS

CHAS Certificate Accreditation

Constructionline Gold

Constructionline Gold

Constructionline Gold - Certificate of Membership

Literature

G2 Green Solutions Technical Catalogue

G2 Green Solutions Technical Catalogue

Green Walls Overview Brochure

Green Walls Overview Brochure

G2 Green Solutions References Catalogue

G2 Green Solutions References Catalogue

Rope & Rod Green Wall Specification Guide

Rope & Rod Green Wall Specification Guide

Living Green Wall – JAKOB Rope & Rod Green Wall Elevation 3.0 (All G2)

Living Green Wall – JAKOB Rope & Rod Green Wall Elevation 3.0 (All G2)
