JORDAHL® Toothed Fixing Straps JVB
Verified by manufacturer 2 months ago
JORDAHL® Toothed Straps JVB-N
JORDAHL® Toothed Straps JVB-N
Toothed connection straps to provide adjustable positioning between connected components.
Application
For transferring high tensile loads between structural and facade elements while allowing vertical movement due to thermal differentials or foundation settlement.
Typical Applications:
- Windload restraint of precast facade panels.
- Windload restraint of retained facades with new structures constructed behind.
Description

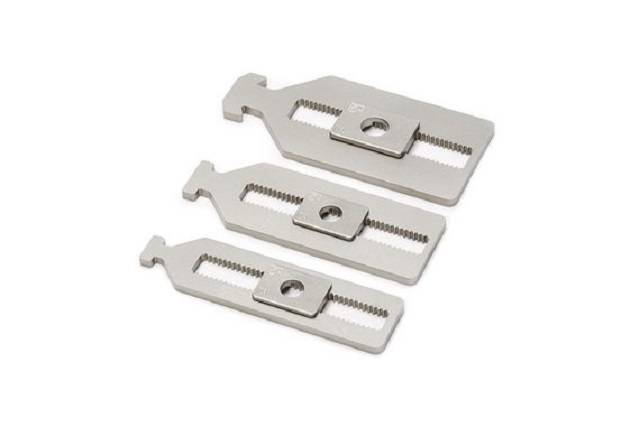

JORDAHL® Toothed Straps JVB together with JORDAHL® channels are used as wind load restraint connections between various combinations of structural and facade components. Steel, concrete and brick components can be connected by the system.
Using bolted connections through slotted assemblies, the interlocking teeth of the toothed straps allow adjustment of positioning while acting horizontal loads are safely transferred. The strap is allowed to slide vertically to accommodate differential thermal movement or structural settlement.
Features and benefits:
- Can transfer high tensile and compressive loads.
- Allows adjustment of positioning between connected components.
- Allows differential thermal movement between components
General information
Color | Silver |
Finish | Zinc plated |
Material | Steel Stainless steel |
Shape | Other |
Length | 88 mm 92 mm 104 mm 112 mm 122 mm Manufacturer guidance88 - 392mm |
Uniclass | |
CAWS | E42/340 Channels and slots |
Specification data - Stainless steel slot ties
Configuration | For tension load connections. Adjustment range ±38 mm. |
Properties | |
Dimensions | |
Length | Guidance for specification option: Insert requirement from manufacturer's literature. |
Anchors | Cold formed toothed anchor channels. |
Series | Guidance for specification option: Insert requirement from manufacturer's literature. |
Anchor spacing | 150 mm. 450 mm. |
Channel thickness | 3 mm. 6 mm. |
Sustainability data
Country of product manufacture | Germany |
Material | Steel Stainless steel |
Literature
Jordahl JTA and JXA Anchor Channel Fixings
DoP Jordahl Toothed Straps
