Verified by manufacturer 4 months ago
630 x 100 x 250 mm
BBA Agrément Certificate
Certificate type

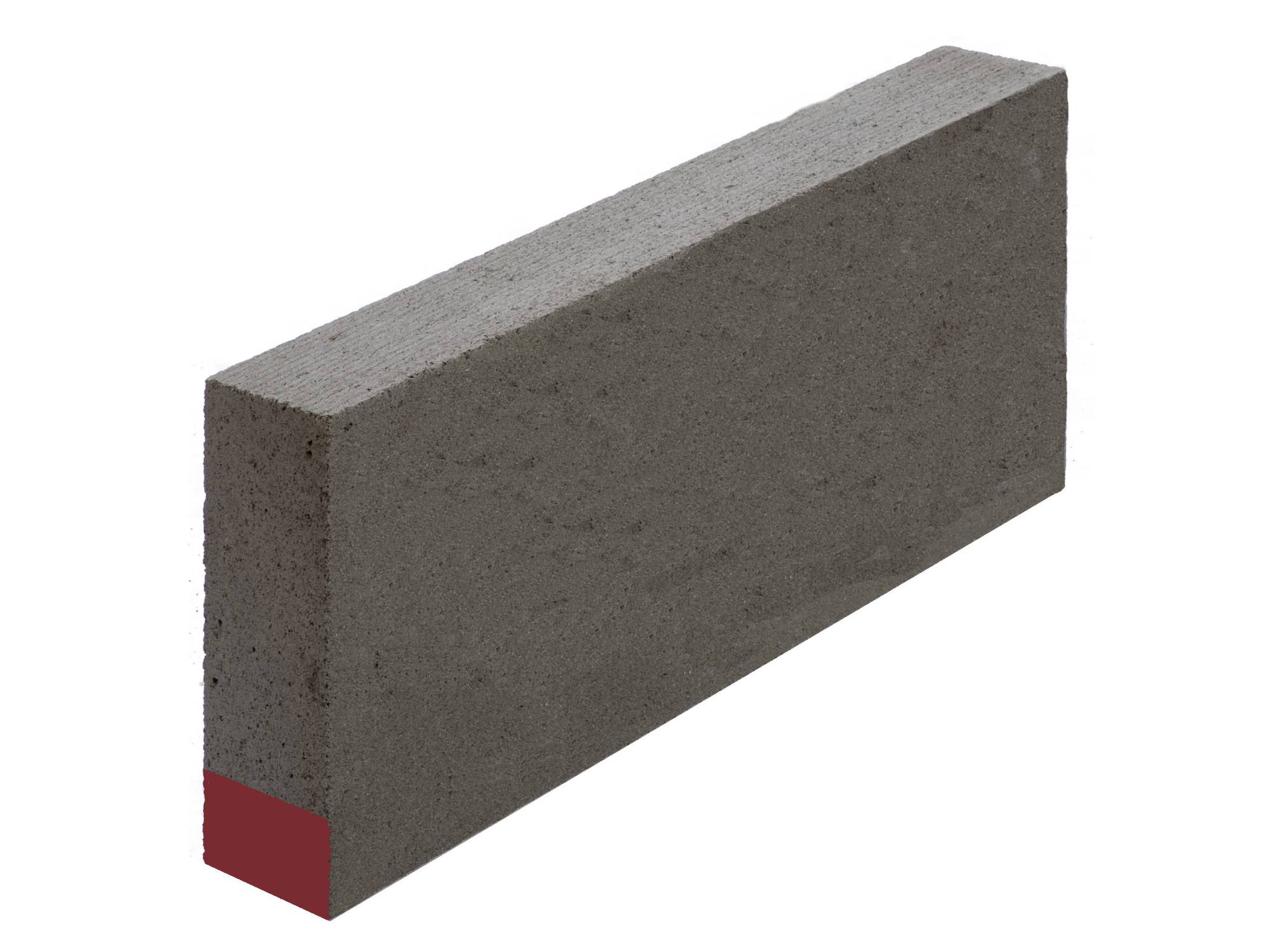

Super Strength Grade Aircrete for large format building.
Suitable for loadbearing and non-loadbearing applications in all forms of walling including single leaf, cavity, partitions, retaining and basements:
Larger, super strength, aerated autoclaved concrete blocks offering beneficial productivity, with as few as 6.3 blocks completing 1 m² of walling.
Features and benefits:
Color | Grey |
Finish | Smooth Scratched |
Material | Autoclaved aerated concrete (AAC) Guidance for specification option: (AAC). |
Shape | Rectangle |
Length | 630 mm |
Width | 100 mm 140 mm |
Height | 250 mm |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Standard | To BS EN 771-4. |
Configuration | Group 1. |
Mean compressive strength (minimum) | 8.7 N/mm². |
Category | I. |
Thermal conductivity (maximum) | 0.18 W/m·K. |
Recycled content | 80%. |
Work sizes (length x width x height) | 630 x 100 x 250 mm. |
Tolerance category | TLMA. |
Density | 730 kg/m³. |
Reaction to fire | Euroclass, A1. |
Moisture movement | 0.4 mm/m. |
Shear bond strength | 0.30 N/mm². |
AcousticRating | Unfinished: 41.5 dB; lightweight plaster: 44.1 dB; dense plaster: 47.0 dB. |
Weight | 14 kg. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | At end of life. Manufacturer guidanceSuitable for end of life recycling. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
