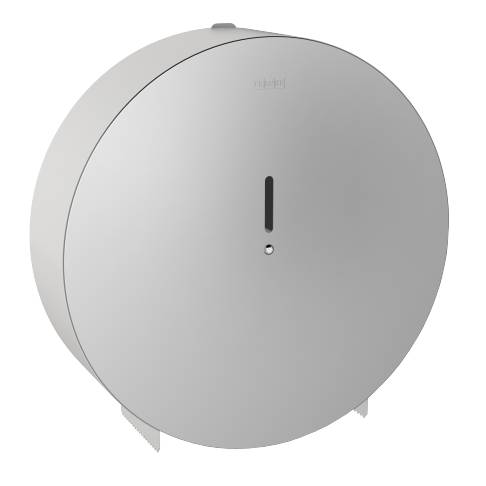

Jumbo Toilet Roll Holder - CHRX670

Verified by manufacturer over a year ago

KWC DVS Limited

Jumbo roll holder for wall mounting.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Jumbo roll holder for wall mounting.

Description

Jumbo roll holder for wall mounting.


Features and Benefits:

  • Stainless steel.
  • Surface satin finished.
  • Material thickness 0.9 mm.
  • Has a closed round casing with inspection window.
  • Paper withdrawal over two tear-off edges and locked with hexagonal allen screw, for 1 roll with maximum Ø 350 mm, including stainless steel screws, dowels and hexagonal allen key.


Product variants:

  • CHRX670
  • CHRX669

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Guidance for specification option:

grade 1.4301 (304)

Shape

Circle

Length

369 mm

Width

369 mm

Height

108 mm

Manufacturer guidance

Projection.

Warranty description

Five year

Uniclass

Pr_40_20_76_88 Toilet roll holdersPrimary

Specification data - Toilet roll holders

Form

Wall mounted.

Materials

Stainless steel.

Guidance for specification option:

grade 1.4301 (304)

Finish and colour

Satin.

Product Reference

Jumbo Toilet Roll Holder - CHRX670

Sustainability data

Contains Red List materials

No

Country of material origin

United Arab Emirates

Country of product manufacture

United Arab Emirates

Recyclability

-

Manufacturer guidance

Recyclable

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Case studies

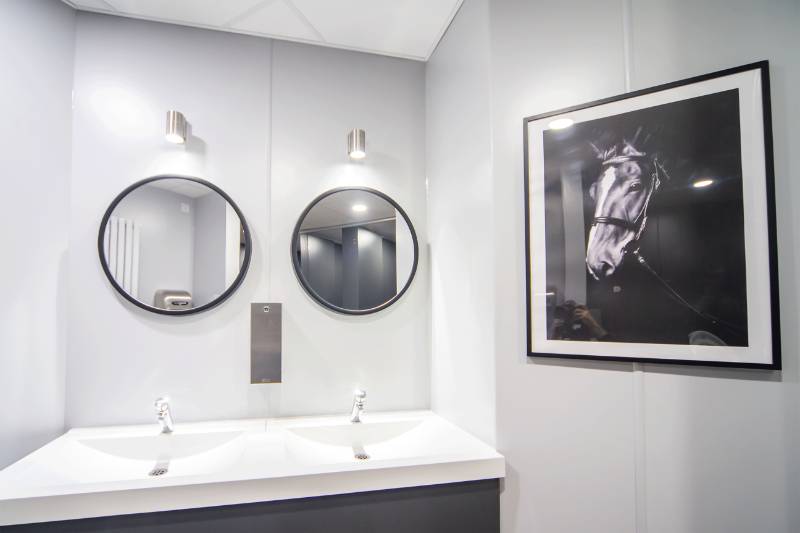

Leicester racecourse washroom revamp
