Kampus Blind®

Verified by manufacturer 7 months ago

Aluzion Blinds Ltd

Heavy Duty Safe Roller Blind for education and civic projects.

Jump to:
+44 (0)845 382 2000 Website

Application

Heavy duty roller blind designed for education and civic institutions and projects. Also suitable for healthcare and residential applications where child-safety and low risk self-harm is a concern.

Description

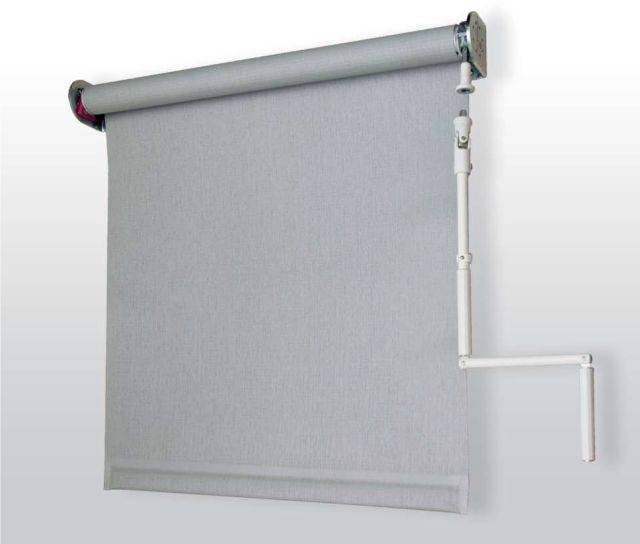

Heavy duty safe roller blind with detachable / attached crank operation


Features and benefits:

  • A heavy duty crank operated roller blind with a magnetic detachable / attached crank handle as standard.
  • Sealed in hembar as safety feature for primary education
  • Safe By Design to EN13120
  • Fabrics are fire resistant, and some can be wiped clean and be weather resistant. Porous fabrics allow good air exchange for natural ventilation. Glare control fabrics can have varying degrees of openness, to allow a view outside and may also be translucent, so that the need for artificial lighting is reduced.
  • Options include high performance energy saving fabrics with available technical data and 100% opaque fabrics for room darkening.
  • Strong bright steel brackets featuring Kampus Safety-Lock ‘K’
  • The roller tube is a strong and robust design extruded from steel to provide a rigid barrel which will resist deflection.
  • The crank operation mechanism is manufactured from steel and is a sealed and tamper-proof unit to increase life and the handle can either be permanently fixed or detachable with magnetic connection to prevent unauthorised operation.
  • 10-year warranty


General information

Finish

Zinc plated

Guidance for specification option:

4 mm Zinc plated steel with 'K' Safety Lock.

Material

Fabric

Steel

Length

3500 mm

Width

3500 mm

Warranty description

30 year

Uniclass

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/240 Blinds

N10/70 Blinds

Specification data - Roller blinds

Standards

To BS 5867, EN 13120.

Position

Internal to vertical glazing.

Dimensions (minimum width x depth)

3.5 m x 3.5 m.

Guidance for specification option:

Area: 10 m².

Headrail

-

Material

Extruded aluminium.

Blinds

-

Material

Glare Control.

Guidance for specification option:

flame-retardant, strong tear resistant, breathable, weatherproof with view through

Blackout function

Blackout.

Guidance for specification option:

flame-retardant, strong tear resistant, weatherproof

Finish

Steel with bright finish.

Colour

-

Manufacturer guidance

Standard UV-stabilised colour range; fabric accepts printing logos, text or images in one or more colours.


Pattern

Jasper.

Amethyst.

Sapphire.

Emerald.

Tube

-

Material

Galvanized steel.

Diameter

48 mm.

Operation

Manual operation by crank handle; attached / detachable.

Operating effort

Class 1.

Mechanism endurance

Class 1.

Accessories

Not required.

Custom bracket options are available including custom RAL finishes.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Guidance for specification option:

Where facilities exist.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Subject to fabric specified.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Aluzion Kampus Blind™ Specification and Data Sheet

Aluzion Kampus Blind™ Specification and Data Sheet
