Katherm QE
Verified by manufacturer 2 months ago
825 mm-long
825 mm-long
UK Conformity Assessed (UKCA)
Certificate type
Fan-assisted trench heating system with electric heating element.
Application
Suitable for all areas of buildings in which effective heating and cold air screening is required. Katherm QE units can provide energy-saving and low-noise heating particularly when the use of LPHW is not provided for or possible.
- Hotels/ motels.
- Sales rooms and showrooms.
- Office and meeting rooms.
- Homes and conservatories.
- Restaurants and cafes.
Description
The Katherm QE offers a solution without the need to connect to a water supply. The high heat output is supported by the fan. Protection class IP 65 ; With grille fixings - acting as touch guards. With Optiline Roll-up Grille.
Features and benefits:
- Electric heating element wiring.
- Connection area.
- Cover plate.
- Grille fixing EC tangential fan.
- Unit height: 112 mm.
- Unit Width: 207 mm.
- Available unit lengths: 825, 1250, 1700 mm.
General information
Color | Grey |
Finish | Anodized |
Material | Steel |
Shape | Rectangle |
Length | 825 mm 1250 mm 1700 mm |
Width | 207 mm |
Height | 112 mm |
Uniclass | |
CAWS | T90/477 Trench convectors T90/477 Trench convectors |
Specification data - Trench convectors
Arrangement | Fan assisted. |
Mounting | Fully recessed. |
Output | 800 W.660 W.500 W.320 W.160 W.Manufacturer guidanceHeat output. |
Outlet grilles | Roll-up grille. |
Accessories | None.Dummy sections.Guidance for specification option: Can be added the end of or between active units, to achieve continuous runs. Insert requirements under 'Length'. |
Width | 207 mm. |
Height | 112 mm. |
Length | 825 mm. Guidance for specification option: Single active unit. Other. Guidance for specification option: Active unit(s) can be placed together, with or without dummy sections, to achieve continuous runs. Consult manufacturer for details and insert requirements or drawing reference/ schedule. |
Grille finish | Aluminium, natural anodized. |
Sustainability data
Country of material origin | Germany |
Third party certifications
UK Conformity Assessed (UKCA)

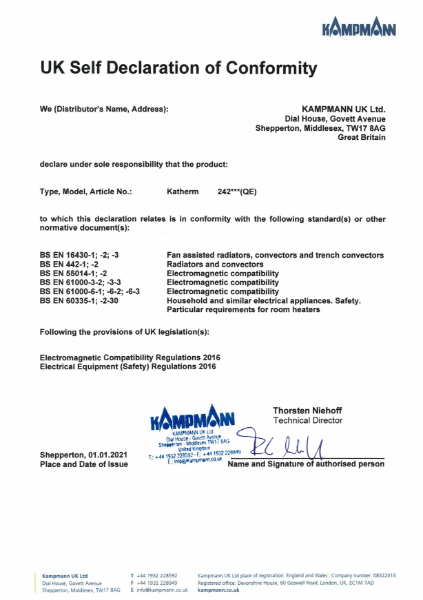

Katherm QE UKCA Declaration
Literature

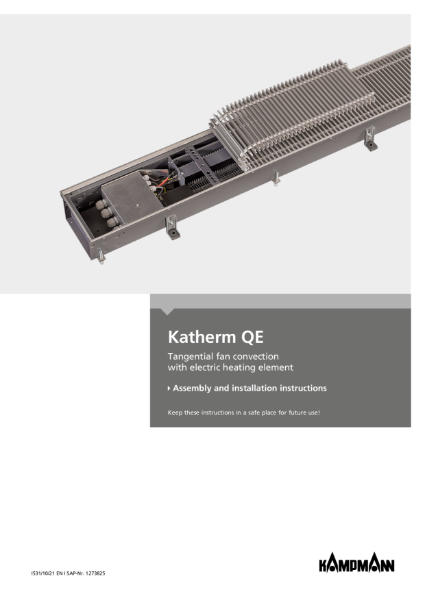

Katherm QE Install Manual

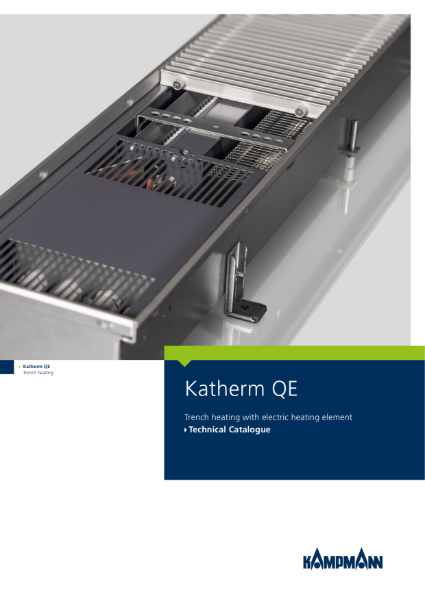

Katherm QE Technical Catalogue
