Katkin Access Panel Locks

Verified by manufacturer 3 months ago

Allgood Ltd Variant:

A range of locks for use with access panels, duct doors, removable skirtings and cupboard doors.

+44 (0)121 359 4415 Website

Application

Applicable use with duct doors, removable skirtings, access panels and cupboards door. Suitable for left or right hand hinged doors or removable panels.

Description

Allgood type 8397 Katkin access panel lock is designed for use with duct doors, removable skirtings, access panels and cupboard doors.


Features and benefits:

  • The locks are flush fitting, thief resistant and suitable for left or right hand hinged doors or removable panels.
  • The special captive key can only be removed in the locked position and can also be utilized as a lifting/ opening device to lift out access panels.
  • The Katkin key MA8397A incorporates a hole for chain and is plated steel finished.
  • Locks have been included in satisfactory fire tests to BS EN 1634 (30 minute fire doors - 8397/45).


===========================

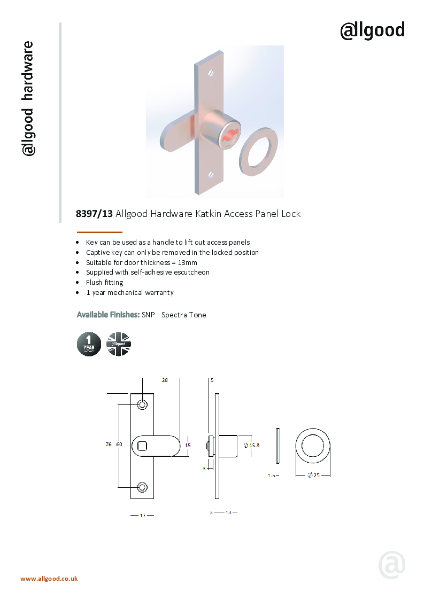

8397/13 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 13mm

• Flush fitting

• 1 year mechanical warranty


===========================

8397/19 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 19mm

• Flush fitting

• 1 year mechanical warranty


===========================

8397/25 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 25mm

• Flush fitting

• 1 year mechanical warranty


===========================

8397/35 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 35mm

• Flush fitting

• 1 year mechanical warranty


===========================

8397/38 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 38mm

• Flush fitting

• 1 year mechanical warranty


===========================

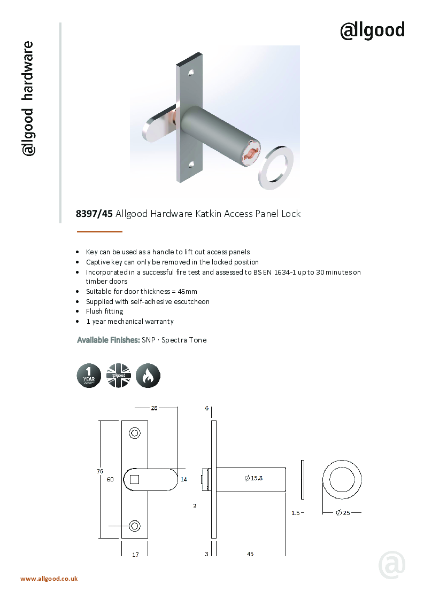

8397/45 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Incorporated in a successful fire test and assessed to BS EN 1634-1 up to 30 minutes on

timber doors

• Suitable for door thickness = 45mm

• Flush fitting

• 1 year mechanical warranty


===========================

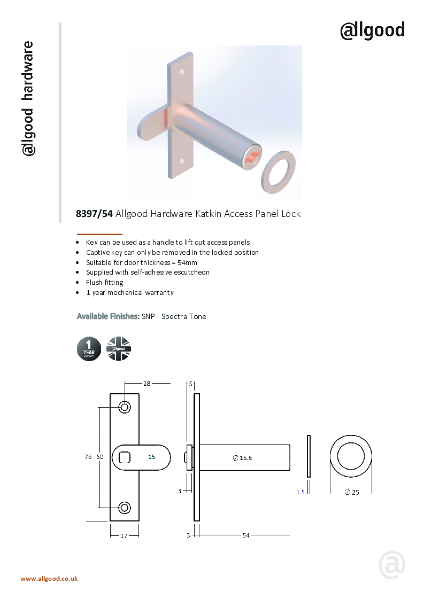

8397/54 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 54mm

• Flush fitting

• 1 year mechanical warranty


===========================

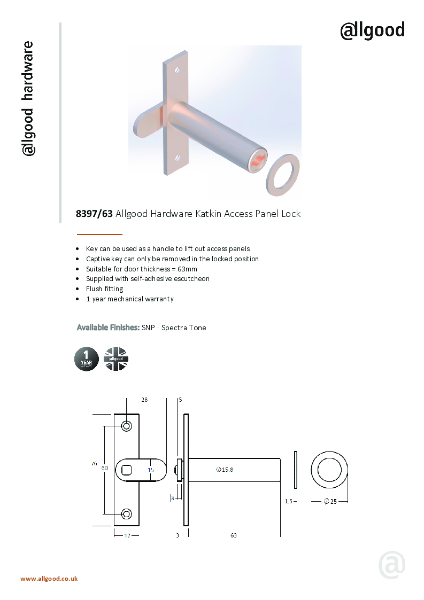

8397/63 Allgood Hardware Katkin Access Panel Lock

• Key can be used as a handle to lift out access panels

• Captive key can only be removed in the locked position

• Suitable for door thickness = 63mm

• Flush fitting

• 1 year mechanical warranty


===========================


General information

Color

Silver

Finish

Polished

Anodized

Material

Aluminium

Warranty description

One year

SKU Code

8397/13, 8397/19, 8397/25, 8397/38, 8397/45, 8397/54, 8397/63
