Keesafety Guardrail

Verified by manufacturer 3 months ago

Guardrail - Kee Safety KeeGuard®

Eurosafe Solutions Ltd Variant:

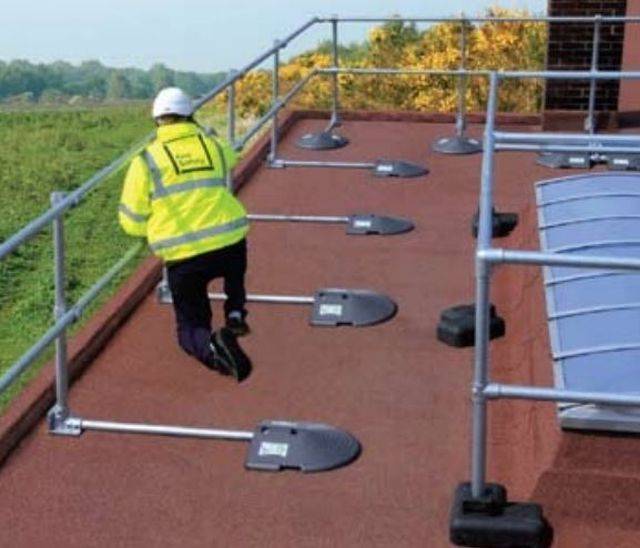

Modular freestanding guardrail system.

Jump to:
+44 (0)114 250 7411 Website

Application

Permanent or temporary freestanding roof edge protection.

Description

A modular free-standing roof edge protection system that does not penetrate the roof surface.


Features and benefits:

  • Easy to handle.
  • Recycled PVC weights provide stability and galvanized Kee Klamp® fittings and tubes complete the system.
  • It is supplied in prefabricated kit form with a minimum number of assemblies which allows for ease of installation.
  • It is a safe, versatile system that delivers reliable collective protection.
  • Available in galvanized steel and aluminium versions.
  • Provides collective protection for all rooftop working.
  • Meets the requirements of the ‘Working At Heights’ legislation.
  • Complies with BS 13700:2021, BS EN ISO 14122-3, and BS EN 13374 Class A.
  • Recycled PVC weights ensure no penetration of the roof surface.


Components:

  • Top rails.
  • Mid rails.
  • Uprights.
  • Connections.
  • Base weights.

General information

Color

Black

Guidance for specification option:

Base Weights

Silver

Guidance for specification option:

Stanchions and rails

Other

Guidance for specification option:

Metal components can be powder coated to any RAL.

Finish

Galvanized

Powder-coated

Material

PVC

Guidance for specification option:

100% recycled polyvinyl chloride (PVC).

Aluminium

Steel

Length

Bespoke

Height

1100 mm

Uniclass

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary

CAWS

L35/170 Guarding system

Product range

Freestanding Guardrail

Specification data - Metal pedestrian parapet systems

System performance

Free-standing, galvanized steel.

Preparatory work

To system manufacturer’s recommendations.

System accessories

Not required.

Access gate, self-closing.

Guidance for specification option:

For compliance with BS EN 14122-3.

Base weight cover.

Guidance for specification option:

Insert requirements, consult manufacturer for information.

Coloured cover strip.

Guidance for specification option:

Insert requirements, consult manufacturer for information.

Toe board.

Special order.

Guidance for specification option:

Insert requirement, consult manufacturer for information.

Design

As drawing.

Guidance for specification option:

Insert reference, consult manufacturer for information.

Uprights

Radiused.

Guidance for specification option:

For KeeGuard® and KeeGuard® Lite only.

Raked.

Standard.

Guidance for specification option:

For KeeGuard® and KeeGuard® Lite only.

Base weight colour

Grey.

Guidance for specification option:

Standard.

Orange.

Guidance for specification option:

Offers increased visibility. To highlight a trip hazard.

Special order.

Guidance for specification option:

Insert requirements.

Fixing

Manufacturer's standard.

Guidance for specification option:

For KeeGuard® Topfix.

Freestanding.

Guidance for specification option:

Standard.

Wall plates.

Finish/ Colour

Not applicable.

Guidance for specification option:

For KeeGuard® Foldshield Aluminium, KeeGuard® Lite and KeeGuard® Topfix Aluminium.

Galvanized.

Guidance for specification option:

To BS 729, corrosion-resistant.

Powder coated, RAL.

Guidance for specification option:

Insert colour requirement.

Height

1100 mm.

Tube

Guidance for specification option:

Dependent on material and system, consult manufacturer for information.

Manufacturer guidance

Tube size.

BaseMaterial

PVC.

Guidance for specification option:

100% recycled polyvinyl chloride (PVC).

Base size (l x w x h)

460 x 500 x 85 mm.

Weight

13.5 kg.

Manufacturer guidance

Base weight.

Spacing

2000 mm.

Manufacturer guidance

Maximum upright spacing.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Base weights
