Kight KV-5 - Power Generating System
Verified by manufacturer 8 months ago
Certificate of Compliance
Certificate type

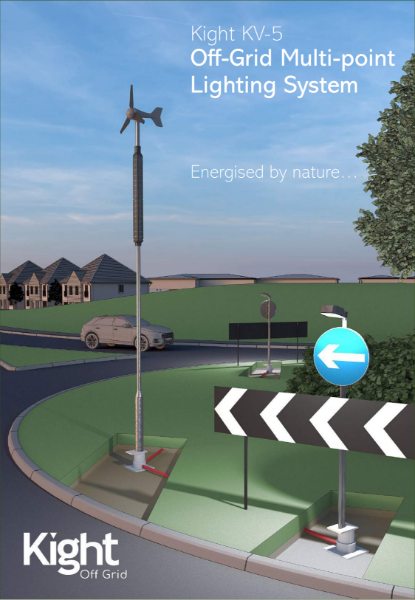

Fully off-grid, power-generating system for lighting multiple signs, bollards and other street furniture.
Application
Permanent or semi-permanent solutions.
Creates multi-point lighting for highways signage, bollards and street furniture.
Suitable applications include:
- Roundabouts.
- Traffic islands.
- Parks and open spaces.
Description
Fully off-grid, permanent and semi-permanent multi-point lighting system.
Features and benefits:
- Designed, tested and manufactured in the UK.
- Reliable alternative to traditional on-grid solutions.
- 100% off-grid, no 'back-up' on grid connection required.
- Dual-energy input from solar panels and wind turbine.
- Next-generation battery storage technology.
- Tested to -25/+50 degrees with no loss of efficiency.
- Long battery life, 20 years plus. Battery remains 97% efficient after 10 000 cycles.
- No loss of battery efficiency in sub-zero conditions.
- Easy and quick to install with no infrastructure required.
- Silent and clean with no emissions.
- Fully monitored and controlled via Kight's private network.
- Zero running costs.
General information
Color | Black Grey Silver Beige Blue |
Finish | Galvanized |
Material | Steel |
Shape | Circle |
Width | 76 mm |
Height | 6000 mm 7000 mm 5000 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/575 Lighting columns |
SKU Code | KV-5 |
Specification data - Renewable powered lighting columns
Standard | Complies with BS Standard lighting column. |
Height (nominal) | 6000 mm. 7000 mm. Manufacturer guidanceOverall height of power generating column. |
Renewable technologies | |
Photovoltaics | |
Cell type | Manufacturer's standard. Guidance for specification option:
|
Format | 3 x 50 W solar panels. Guidance for specification option:
|
Nominal output | 150 W peak solar. Supplies power to any low voltage lighting system. Guidance for specification option: Consult manufacturer for details. |
Wind turbines | |
Wind turbine type | KLE-300. Guidance for specification option:
|
Rating | Related power: 300 W. |
Battery | |
Type | Manufacturer's standard. |
Capacity | 150 W peak solar. 300 W peak wind. 40 Ah/ 12 V/ 552 W/h. |
Connectivity | Remote monitor LoRa end node. |
Accessories | Roundabout and traffic island signage lighting. General signage lighting. Bollard lighting. Pathway uplighters. Handrail LEDs. Bulkhead lighting. Manufacturer guidanceLantern height 5 or 6 m depending on application; consult manufacturer for details. |
Material and finish | Galvanized steel. |
Colour | Guidance for specification option: Available in a wide range of colours; consult manufacturer and insert requirements. |
Width | 76 mm. Manufacturer guidanceShaft width. |
Impact protection (minimum) | IK10. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Third party certifications
Certificate of Compliance
BS EN 61000-3-3:2013+A1:2019+A2:2021
Certificate of Compliance
BS EN 61547:2009
Certificate of Compliance
BS EN 62262 IK10
Certificate of Compliance
BS EN IEC 55015:2019+A11:2020
Certificate of Compliance
BS EN IEC 61000-3-2:2019+A1:2021
Certificate of Compliance
IP66 Ingress Protection
Literature
Literature type
Kight Green Energy Lighting and Energy Generation Solutions Brochure
Kight Off-Grid - General Product Data Sheet
Monocrystalline Solar Panel Specification
KV5 - Product Data
Case studies
Surrey County Council Off-Grid Sign Lighting
