Kingspan Aquazone

Verified by manufacturer 2 months ago

Kingspan Insulation Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Water–infiltration reduction membrane for inverted roofs.

Jump to:
BOS
+44 (0)1544 388601 Website

Application

Suitable for new builds and refurbishment projects. Can also be used over Kingspan GreenGuard insulation on inverted roofs. For paving slabs or specifications without the gravel ballast, consult manufacturer for fire classification details.

Description

A high performance, non-woven polyethylene, water-infiltration reduction membrane with excellent water vapour permeability. Suitable for use on inverted roofs finished with gravel ballast, green roof systems and concrete pavers on appropriate supports.


Manufactured in accordance with ISO 9001: 2015 Quality Management Systems and ISO 14001: 2015 Environmental Management Systems.


Features and benefits:

  • Good water vapour permeability.
  • Resistant to liquid water passage.
  • Reduces insulation thicknesses required to achieve specified thermal transmittance (U-values).
  • Durable – heat and UV stable.
  • Lightweight.
  • Easy to handle and install.
  • Resists mould and bacterial growth, and does not provide food value to vermin.
  • Will not encourage insect attack.
  • Manufactured in accordance with BS 476-3.

General information

Color

White

Finish

Smooth

Material

Polyethylene

Guidance for specification option:

Non-woven.

Shape

Rectangle

Length

100000 mm

Width

3000 mm

Height

0.19 mm

Guidance for specification option:

0.185 mm to 3 decimal places.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J41/99 Water flow-reducing layer

J31/390 Water flow-reducing layer

J31/130 Inverted roof coating

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J42/120 Inverted roof covering

J41/390 Water flow-reducing layer

J42/390 Water flow-reducing layer

Product range

Membrane

Specification data - Plastics sheets

Material

Polyethylene.

Purpose

Water resistance.

Standard

To EN 13859-2: 2010.

Performance characteristics

-

Tensile strength (minimum)

280 N/50 mm (longitudinal); 280 N/50 mm (transverse).

Tear resistance

50 N (longitudinal); 45 N (transverse).

Water vapour resistance (minimum)

0.003 Sd.

Fire performance

To BS EN 13501-1:2018, Euroclass RtF E.

Third-party certification

British Board of Agrément (BBA) Certificate.

Guidance for specification option:

BBA Certificate No 14/5102.

Form

Non-woven.

Spun-bonded.

Physical properties

-

Colour

White

Weight (minimum)

0.06 kg/m².

Dimensions

-

Thickness (minimum)

0.185 mm.

Width (minimum)

3 m.

Roll length (minimum)

100 m.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

BBA Agrément Certificate

BBA Approval Inspection Testing Certificate No. 14/5102

Literature

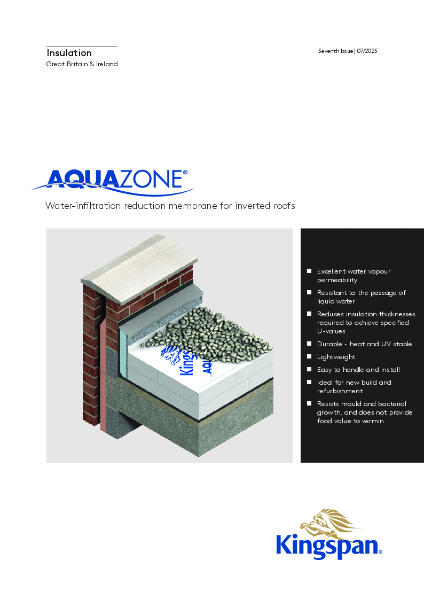

Aquazone Membrane for Inverted Roofs - 03/24

Aquazone Membrane for Inverted Roofs - 03/24
