Kingspan K-Roc Rainscreen Slab - Rock Mineral Fibre Insulation
Verified by manufacturer 28 days ago

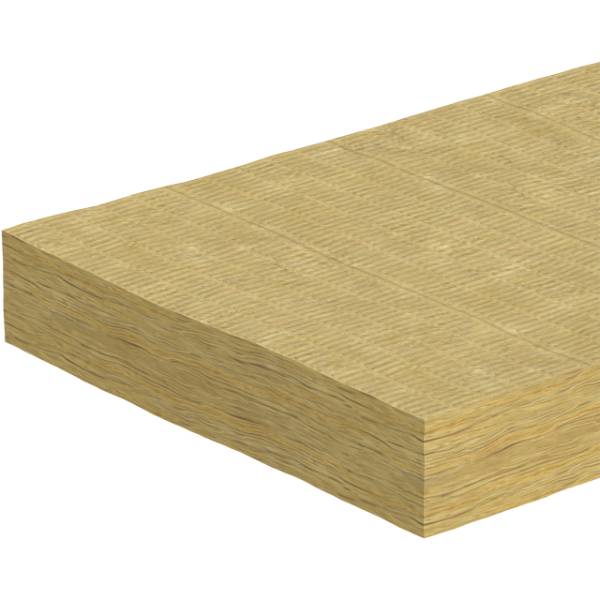

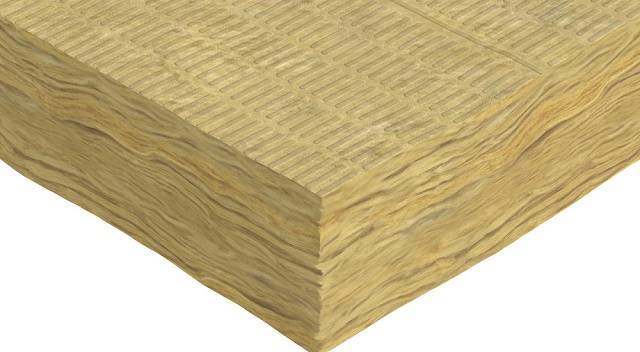

Kingspan K-Roc Rainscreen Slab - 30 mm
Kingspan K-Roc Rainscreen Slab - 30 mm
BBA Agrément Certificate
Certificate type
Rock mineral fibre insulation for use behind rainscreen façades, including steel and timber frame systems with a masonry outer leaf
Application
Insulation for use behind rainscreen facades.
Description
Kingspan K-Roc Rainscreen Slab is a rock mineral fibre insulation.
Features and benefits:
- Thermal conductivity of 0.034 W/mK.
- A1 Euroclass.
- Successfully tested in a façade system to BS 8414-2: 2015 + A1: 2017 in accordance with the performance criteria set out in BR 135.
General information
Color | Brown |
Finish | Smooth |
Material | Mineral fibre |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 30 mm 50 mm 60 mm 75 mm 80 mm |
Uniclass | |
CAWS | H92/776 Thermal insulation |
Product range |
Specification data - Mineral fibre slab insulation
Standard | To BS EN 13162. |
Third-party certification | British Board of Agrément (BBA) Certification.Guidance for specification option: BBA Certificate No 20/5845. |
Thermal conductivity (maximum) | 0.034 W/m·K. |
Thickness (minimum) | 30 mm. |
Density | 45 kg/m³. |
Edges | Square. |
Fire performance | To BS EN 13501-1:2018, Euroclass RtF A1. |
Recycled content | 0% (minimum) to BS EN ISO 14021. |
Cross Section | Uniform thickness. |
Face Size (length x width) | 1200 x 600 mm. |
Sustainability data
Material | Mineral fibre |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 3 |
Third party certifications
Literature
Kingspan K-Roc Rainscreen Slab brochure
