Exposed demountable - Tegular edge (rebated)
The laminated finish of HYGENA Acoustic creates a smooth, white appearance. It provides good levels of sound absorption and excellent sound attenuation the perfect tile for healthcare environments.

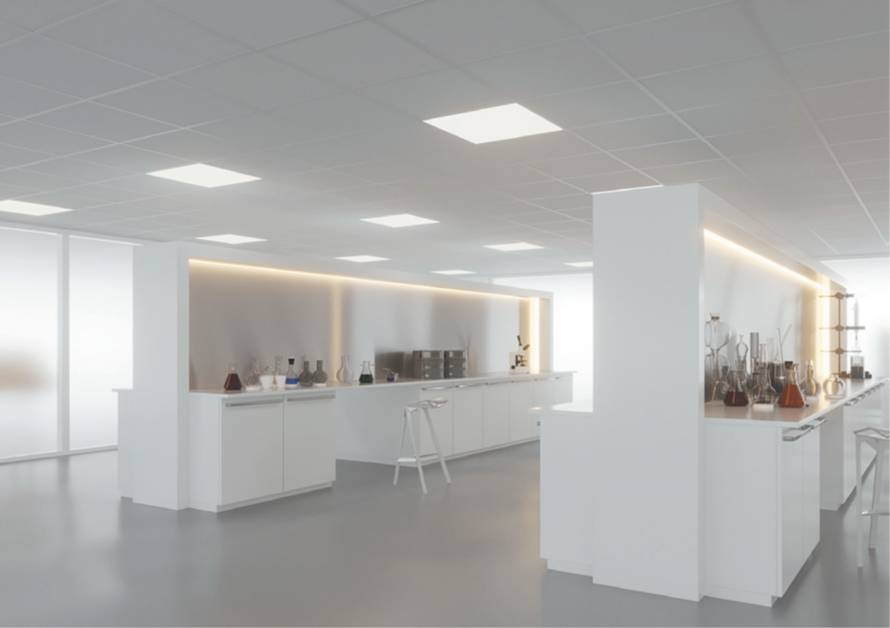

For use in healthcare facilities, the food industry and laboratories.
HYGENA Acoustic 15 mm has a laminated finish and a smooth, white appearance. It provides good levels of sound absorption and excellent sound attenuation. The surface is washable and anti-microbial.
Features and benefits:
Color | White |
Finish | Smooth |
Material | Mineral wool |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm |
Height | 15 mm |
Warranty description | Manufacturer guidancePlease refer to Manufactures EPD |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system |
Standard | To EN 13964. |
Third-party certification | Indoor Air Quality Rating A+, Eurofins Indoor Air Comfort Gold certification. |
Fire performance | |
Reaction to fire | To EN 13501-1, Euroclass A2-s1, d0.Guidance for specification option: Class A as per ASTM E 84. |
Unit type | Ceiling tile. |
Material | Fibre. |
VOC emissions | To EN 13964, Class E1.Guidance for specification option: For formaldehyde emissions. |
Recycled content | 48% (minimum) to BS EN ISO 14021. |
Unit size | |
Face dimensions | 600 x 600 mm. |
Thickness | 15 mm. |
Surface texture | Laminated. |
Colour | White. |
Edge profile | Tegular 24/90.Tegular 15/90. |
Sound absorption | To BS EN ISO 354 and EN ISO 11654, αw = 0.80 (H) - Class B. |
Light reflectance | 87%. |
Weight | 2.9 kg/m². |
Sound attenuation | To EN ISO 10848-2 and EN ISO 717-1, Dn,f,w = 28 dB. |
System | Exposed demountable - System C. |
Sound reduction | To EN ISO 10140-2 and EN ISO 717-1, Rw = 13 dB. |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Mineral wool |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidancePlease refer to EPD |
Recyclability | Manufacturer guidancePlease refer to EPD |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 48 % |
