Knud Holscher collection: Hand dryer w/ square details
Verified by manufacturer 27 days ago
147082P3010
147082P3010
QA Certificate
Certificate type
UL Certified
Certificate type

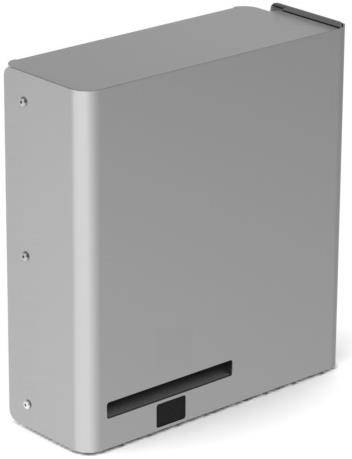

Hand dryer w/ square details
Application
Stainless steel hand dryer wall mounted.
Description
Wall mounted automatic hand dyer in a classic Danish design by Knud Holscher.
Features and benefits:
- Motor with carbon brushes.
- Brushes last 12 000–15 000 hours.
- Drying time: 10–12 seconds.
- Effective airflow: 70–94 m³/h.
- Air velocity: 120–180 km/h.
- Air temperature (100 mm distance): 42°C.
- Protection rating: IPX1.
- Consumption: 1.3–4.8 A (240 V); 1.4–9.5 A (120 V).
- Motor power: 110–250 W.
- Rpm: 8 500–11 500.
- Heating element power: 900 W.
- CE and UL certified.
General information
Color | Black Copper Gold Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | 133 mm |
Width | 285 mm |
Height | 300 mm |
Warranty description | 20 year Guidance for specification option: For stainless steel (non-movable) parts. Two year Guidance for specification option: For mechanism. |
Uniclass | |
CAWS | N13/472 Hand dryers |
Specification data - Hand dryers
Electrical supply | |
Power rating | 1010–1150 W.Manufacturer guidanceHeating off: 110–250 W. |
Rated operational voltage (Ue) | 100–240 V. |
Frequency | 50-60 Hz. |
Body | |
Material | Stainless steel, AISI 1.4301 (316) grade. |
Finish | Brushed.Manufacturer guidancePVD coatings are Physical Vapour Disposition - consult manufacturer for further details. |
Colour | Gold. |
Noise level at 1 m (maximum) | 70–80 dB.Guidance for specification option: Noise level (at 2 m) |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel |
Recyclability | 100 |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications

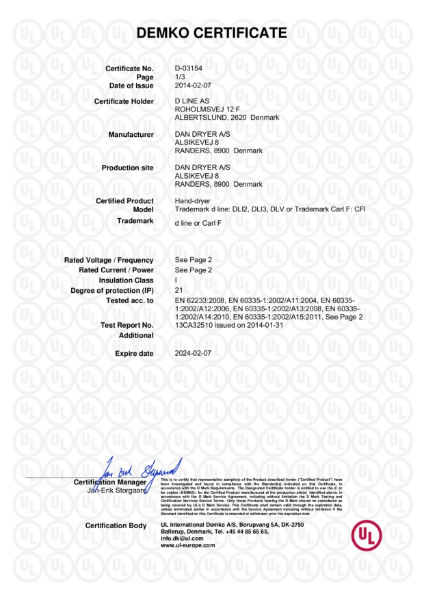

QA Certificate
Hand dryer (QA Certificate)
QA Certificate
Hand dryer
QA Certificate
Hand dryer
UL Certified

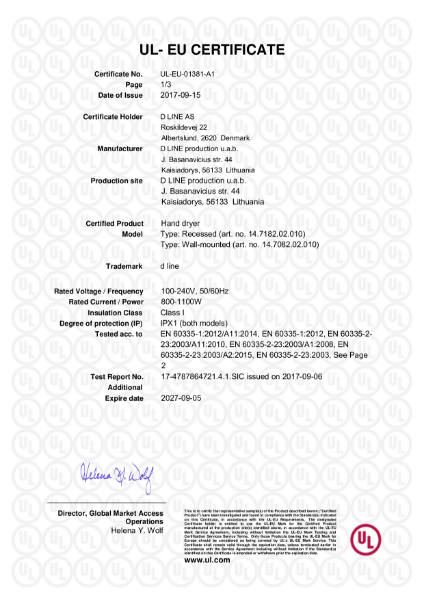

EN60335 (UL-EU)
Literature
Book of curated collections

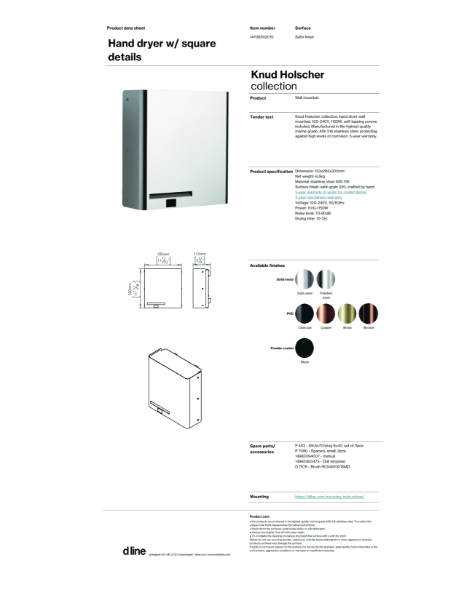

Hand dryer w/ square details (data sheet)
d line brand book
d line warranty declaration
