Knud Holscher collection: Sanitary panel HK
Verified by manufacturer 3 months ago
Washroom recessed panel (paper towel dispenser, waste bin).
Application
Stainless steel Sanitary panel HK
Description

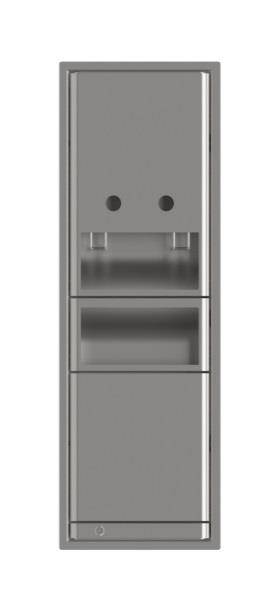

Recessed panel (paper towel dispenser/ waste bin), HK, module size 6, in a classic Danish design by Knud Holscher.
Features and benefits:
- Self-locking mechanism and one point opening with d line key.
- Paper towel dispenser 'H', module size 3.
- Towels: C, Z, Multi and Interfold (minimum 230 x 80 mm is recommended).
- Magazine size (w x h x d): 260 x 350 x 105 mm.
- Capacity: 350 piece two layer interfold (approximately).
- Waste bin 'K', 8 L capacity with open aperture (280 x 280 x 120 mm), module size 3.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Width | 331 mm Guidance for specification option: With frame skirt. |
Height | 977 mm Guidance for specification option: With frame skirt. |
Warranty description | 20 year Guidance for specification option: For stainless steel (non-movable) parts. |
Uniclass | |
CAWS | N13/442 Paper towel dispensers N13/474 Waste bins |
SKU Code | 14710006001 |
Specification data - Multi-function dispensers
Material | 1.5 mm stainless steel, AISI 1.4301 (316) grade. |
Finish and colour | Satin 320 grain stainless steel, hand crafted (14.7100.09.117). Polished stainless steel (16.7100.06.001). Telegrey RAL 7047. White RAL 9016. Black RAL 9005. Dusty Grey RAL 7037. Manufacturer guidancePVD coatings are Physical Vapour Disposition - consult manufacturer for further details. |
Projection | Wall projection: 21 mm. Guidance for specification option: Opened: 335 mm, maximum. |
Opening | 306 x 942 x 106 mm. Guidance for specification option: Minimum wall opening (w x h x d). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
