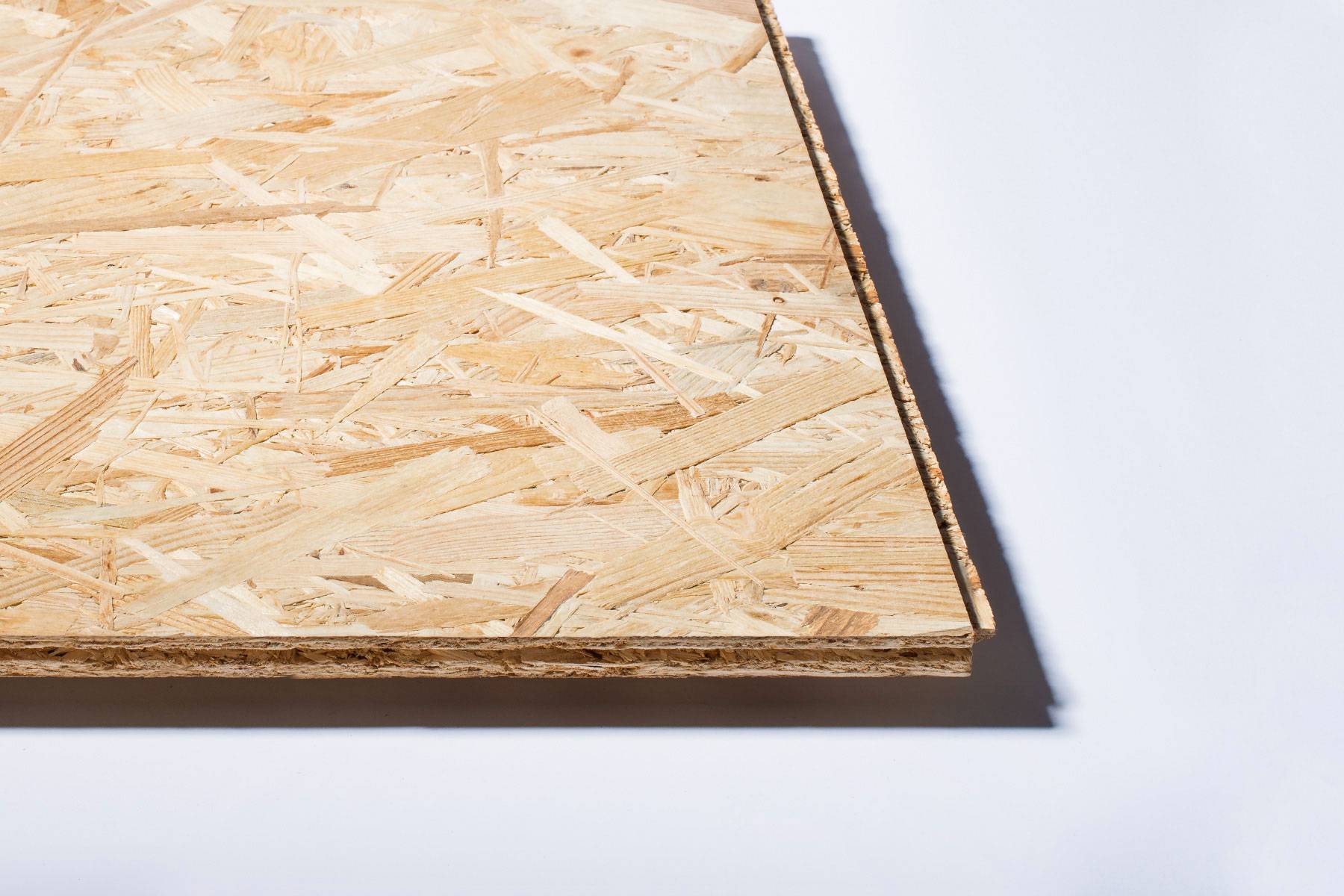

Kronobuild OSB 3 Superfinish T&G4 Flooring - Oriented Strand Boards
Verified by manufacturer 4 months ago
Oriented strand boards for flooring.
Application
Suitable for use in flooring for the building trade.
Description
Kronobuild OSB 3 Superfinish T&G4 Flooring has high load-bearing capacity, durability and resistance. Kronobuild OSB 3 is developed and manufactured to a high ecological standard.
Some international regions may offer variations in dimensions and thickness. Consult with manufacturer direct for options and availability.
Features and benefits:
- Increased resistance to humid conditions.
- High load-bearing capacity and stiffness for construction purposes.
- High dimensional accuracy and shape stability.
- High flexibility and impact resistance.
- Easy workability with common woodworking tools.
- Environmentally friendly, recyclable product.
- Emission class E1 (to EN ISO 12460-5).
General information
Color | Other Guidance for specification option: Natural. |
Material | Oriented strand board (OSB) |
Shape | Rectangle |
Length | 2400 mm |
Width | 600 mm |
Height | 18 mm |
Uniclass | |
CAWS | K11/235 Oriented strand board floating floor K11/135 Battened oriented strand board floating floor K11/335 Oriented strand board flooring K11/35 Oriented strand board flooring |
Product range |
Specification data - Oriented strand boards (OSBs)
Standards | To EN 300 and EN 13986. |
Grade | To BS EN 300, type OSB/3. |
Reaction to fire classification | |
Non-flooring applications | To BS EN 13501-1, Class D-s2, d0. |
Thickness | 18 mm. |
Edges | Tongued and grooved all edges. |
Dimensions | 2400 x 600 mm. |
Bond | To EN 319, >10–18 mm: 0.32 MPa. |
BendingStrength | To EN 13986, 8.2–16.4 N/mm². Guidance for specification option: Thickness: >10-18 mm (minor/major axis). |
CompressiveStrength | To EN 13986, 12.7–15.4 N/mm². Guidance for specification option: Thickness: >10-18 mm (minor/major axis). |
Modulus of elasticity | To EN 12369-1, 1980–4930 N/mm². |
Sound absorption | To EN 13986, 0.1–0.25 α. Guidance for specification option: Frequency range 250–500 Hz - Frequency range 1000–2000 Hz. |
ThermalConductivity | To EN 12664, 0.1 W/mK. |
Moisture resistance | To EN 317, 15% (over 24 hours). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kronobuild®OSB 3 T&G DoP
