Kronodesign® Avant-garde - Acrylic faced MDF
Verified by manufacturer 5 months ago
Acrylic Matt (AM)
Acrylic Matt (AM)
Medium-density fibreboard (MDF) with an acrylic gloss finish.
Application
- For interior frontals within high-end residential projects such as luxury kitchens, bathrooms as well as retail and commercial spaces.
- Vertical applications recommended. Please consult with the manufacturer for horizontal applications.
Description

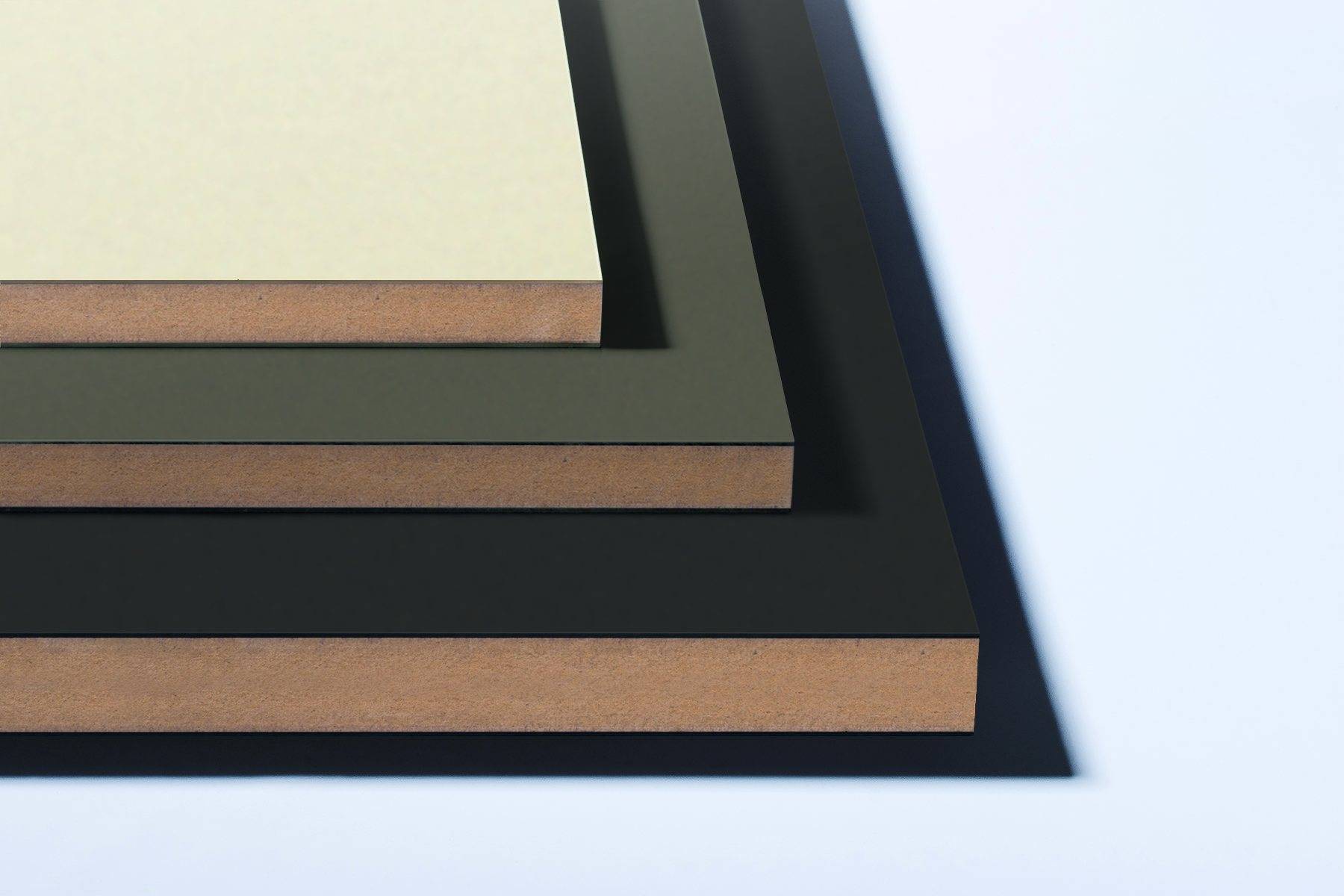

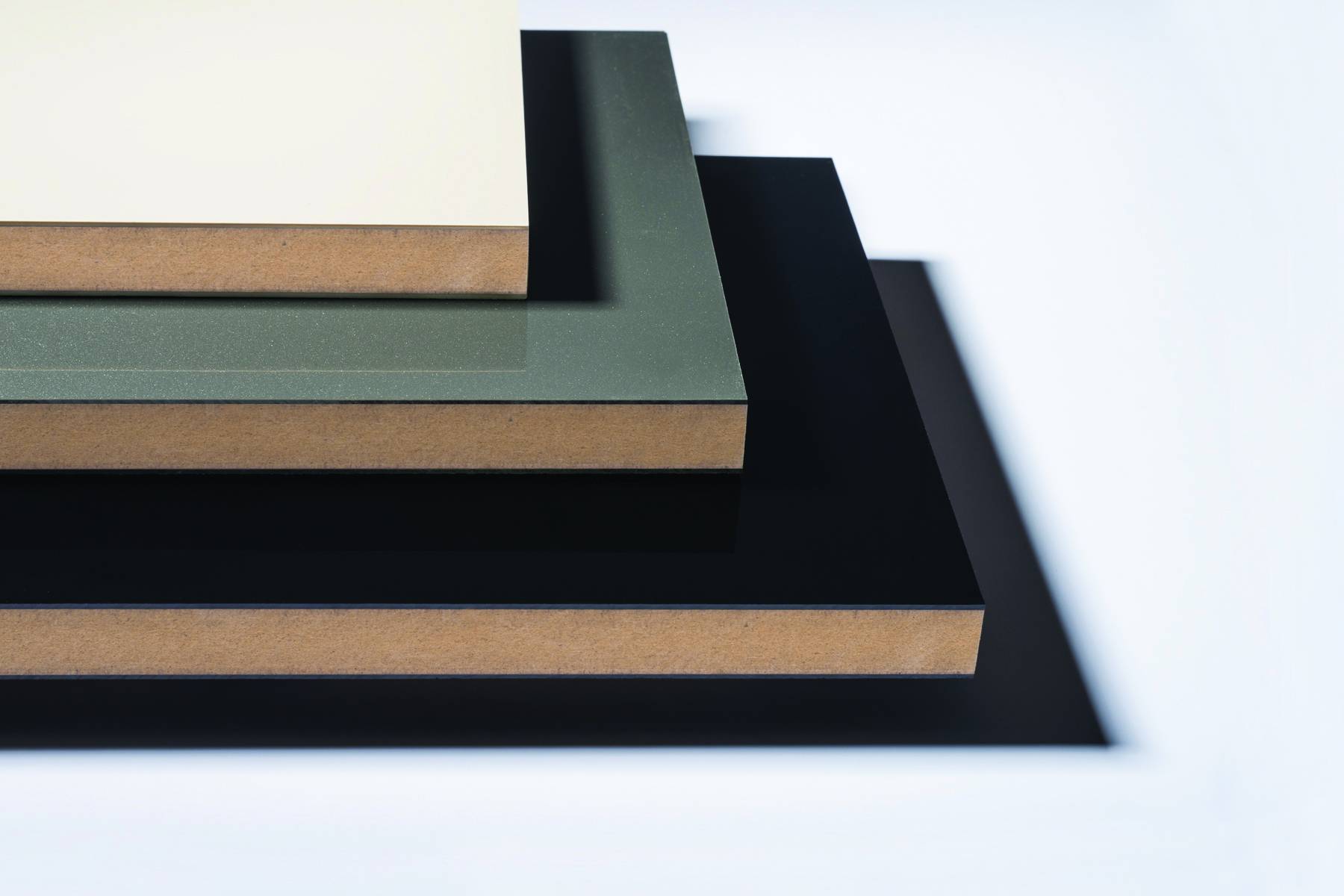

Medium-density fibreboard (MDF) with an acrylic gloss finish. Based on a 17 mm MDF material covered with 0.7 mm gloss lacquered acrylic on the front side, and 0.6 mm high-impact polystyrene film on the reverse.
Features and benefits:
- Offers high gloss levels.
- Improved scrub resistance.
- Supplied with a PE foil to protect the surface.
- High chemical resistance.
- High UV stability.
- Emission class E1 (to EN ISO 12460-5).
Consult with manufacturer direct for options and availability.
General information
Color | Beige Black Brown Cream Grey |
Finish | Matt Gloss |
Material | Medium-density fibreboard (MDF) |
Shape | Rectangle |
Length | 2800 mm |
Width | 1300 mm |
Height | 18.3 mm |
Uniclass | |
CAWS | N10/10 Purpose-made N12/440 Purpose-made N12/440 Purpose-made K13/160 Proprietary K13/160 Proprietary N10/110 Purpose-made N11/380 Purpose-made units K13/150 Purpose-made |
Specification data - Medium-density fibreboards (MDF)
Standard | To EN 316; EN 622-5. |
Grade | To BS EN 622-5, type MDF. |
Formaldehyde class | To BS EN 12460-5, Class E1.Guidance for specification option: ≤ 4mg/ 100 g. |
Sheet size | 2800 x 1300 mm. |
Thickness | 18.3 mm. |
Finish as delivered | |
Applied finish | |
Face veneer | 0.7 mm matt lacquered acrylic on the front side of the board, and 0.6 mm high-impact polystyrene film on the reverse. |
Colour | 0190 AM Black.0514 AM Ivory.6299 AM Cobalt Grey.7045 AM Satin.7166 AM Latte.8685 AM Snow White. |
Bond | To EN 319, ≥0.55 N/mm². |
Density | To EN 323, 780±20 kg/m³. |
Swelling capability | To EN 317, ≤12% (over 24 hours). |
BendingStrength | To EN 310, ≥20 N/mm². |
Modulus of elasticity | To EN 310, ≥2200 N/mm². |
MoistureContent | 4–11%. |
Gloss level | To DIN 67530, <8 GLE. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kronodesign® Product Brochure
Kronodesign® UK Stock List
