Kronodesign® MF MDF Boards
Verified by manufacturer 5 months ago
2620 x 2070 x 25 mm
2620 x 2070 x 25 mm
Melamine faced medium density fibreboard (MF MDF) for use in the furniture and interior design industries.
Application
Applicable for use in the furniture and interior design industries. Widely used for modern furniture including interior frontals and interior tops, as well as kitchen and bedroom door manufacturing.
For special applications please consult with the manufacturer.
Description

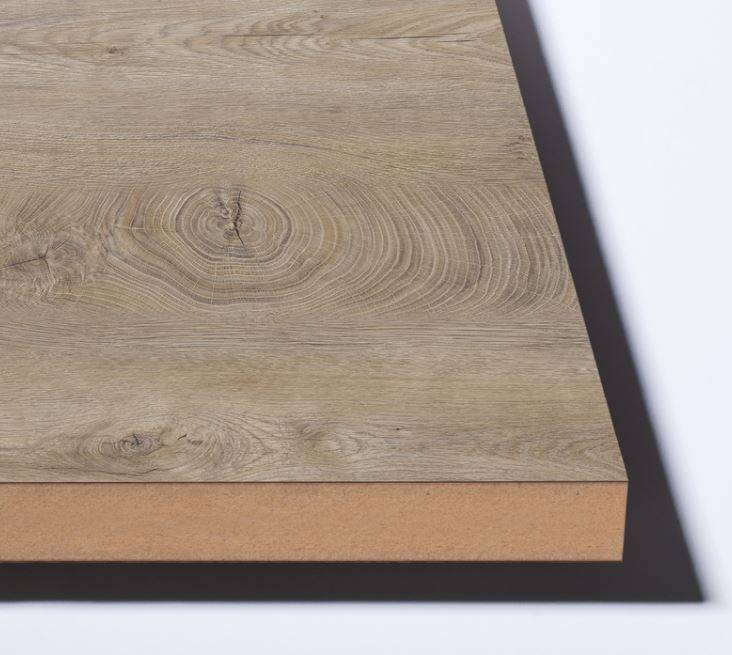

The core of the material is composed of wood fibres, giving a flat and smooth surface with consistent density and stability making it suitable for processing.
Features and benefits:
- UV stability.
- Easy to maintain.
- Stain resistant.
- Emission class E1 (to EN ISO 12460-5).
- FSC certified.
- Anti-bacterial in accordance with ISO 22196:2011.
Consult with manufacturer direct for options and availability.
General information
Color | Beige Black Brown Cream Grey |
Finish | Gloss Matt Textured Woodgrain |
Material | Medium density fibreboard (MDF) Melamine |
Shape | Rectangle |
Length | 2620 mm |
Width | 2070 mm |
Height | 15 mm 18 mm 25 mm |
Uniclass | |
CAWS | K11/875 Medium-density fibreboard P20/200 Medium-density fibreboard K11/59 Medium-density fibreboard P20/35 Medium-density fibreboard N11/380 Purpose-made units N10/110 Purpose-made K13/150 Purpose-made K13/160 Proprietary N12/440 Purpose-made K13/160 Proprietary N12/440 Purpose-made N10/10 Purpose-made |
Specification data - Medium-density fibreboards (MDF)
Standard | BS EN 13986. |
Grade | To BS EN 622-5, type MDF.Guidance for specification option: Standard. |
Reaction to fire classification | |
Flooring | To BS EN 13501-1, Class Dfl-s1. |
Excluding flooring | To BS EN 13501-1, Class D-s2, d0. |
Formaldehyde class | To BS EN 12460-5, Class E1. |
Sheet size | 2620 x 2070 mm. |
Thickness | 15 mm.18 mm.25 mm. |
Finish as delivered | |
Applied finish | |
Face veneer | Melamine faced, one side.Melamine faced, two sides. |
Bond | To EN 13986, 0.55 N/mm². |
Swelling capability | To EN 13986, 10%. Manufacturer guidanceOver 24 hours. |
BendingStrength | To EN 13986, 18 N/mm². |
Modulus of elasticity | To EN 13986, 2100 N/mm². |
Sustainability data
Country of product manufacture | United Kingdom Guidance for specification option: Please contact the manufacturer for international availability. |
Recyclability | Guidance for specification option: Maintaining the principles of Circular Economy, these materials can be reused, they can also be recycled by reintroducing the material(s) back into production processes. For further information please consult with the manufacturer directly. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
