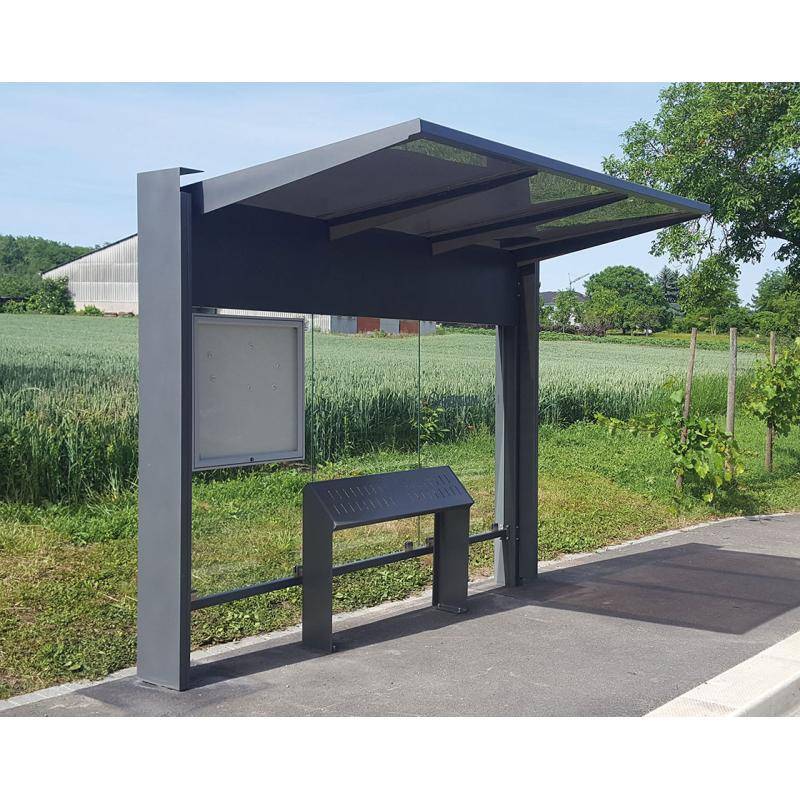

KUBE cantilever bus shelter

Verified by manufacturer 7 months ago

306710 - Without side cladding.

Procity Variant:

Bus shelters.

Jump to:
BOS
+44(0)1528488444 Website

Application

Bus shelter for external installation. Bus shelters provide shelter from adverse weather conditions such as rain, snow, wind, and excessive sunlight, ensuring passengers can wait for their buses comfortably regardless of the weather.

Description

The cantilever bus shelter of the Kube collection offers a minimalist architectural style and the possibility of side and front signage. This bus shelter is both aesthetic and functional, in accordance with urban and public space planning standards. This bus stop shelter is part of the "KUB." urban furniture line.


Features and benefits:


  • Concreted directly into ground.
  • Main structure constructed from steel, 180 x 100 x 5 mm verticals with 120 x 120 mm horizontal beams.
  • Roof made from 8 mm polycarbonate with anti-UV treatment.
  • Rear and side cladding in 8 mm safety glass.
  • As standard comes with timetable display case, 750 x 750 mm (6 A4).
  • KUBE. bus shelter - Bus shelters - Bus shelters - Procity UK

General information

Color

Grey

White

Blue

Red

Black

Show more

Finish

Galvanized

Painted

Material

Steel

Polycarbonate

Glass

Shape

Rectangle

Length

3016 mm

Width

1550 mm

Guidance for specification option:

Depth

Height

2450 mm

Warranty description

Ten year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary
Pr_20_65_78_77 Semi-closed shelters

CAWS

B91/320 Bus shelter

B91/420 Waiting shelter

B91/385 Shelter

B91/330 Canopy

Specification data - Open-sided shelters

Shelter description

Bus shelter.

Dimensions

-

Plan size

3016 x 1550 mm.

Height

2450 mm.

Frame

-

Material

Steel tube.

Finish

Galvanized and painted.

Guidance for specification option:

RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect.

Colour

Red.

Blue.

Green.

Brown.

Grey.

White.

Black.

Procity grey.

Corten effect.

Roof covering

Polycarbonate (8 mm) with anti-UV treatment.

Integral services

None.

Accessories

Timetable display case.

Configuration

Without side cladding.

Cladding

None.

FrameMaterial

Steel, zinc painted.

Guidance for specification option:

Zinc paint colours: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect.

Steel, texture painted.

Guidance for specification option:

Textured paint colours: SG3020G, SG3004G, SG3004G, SG5010G, SG6005G, SG8017G, SG7044G, SG9010G, SG9005G, Other Colours available.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recyclability

Steel is 100% recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
