KWC DVS 1000mm Disposal Unit (DU H)

Verified by manufacturer 5 months ago

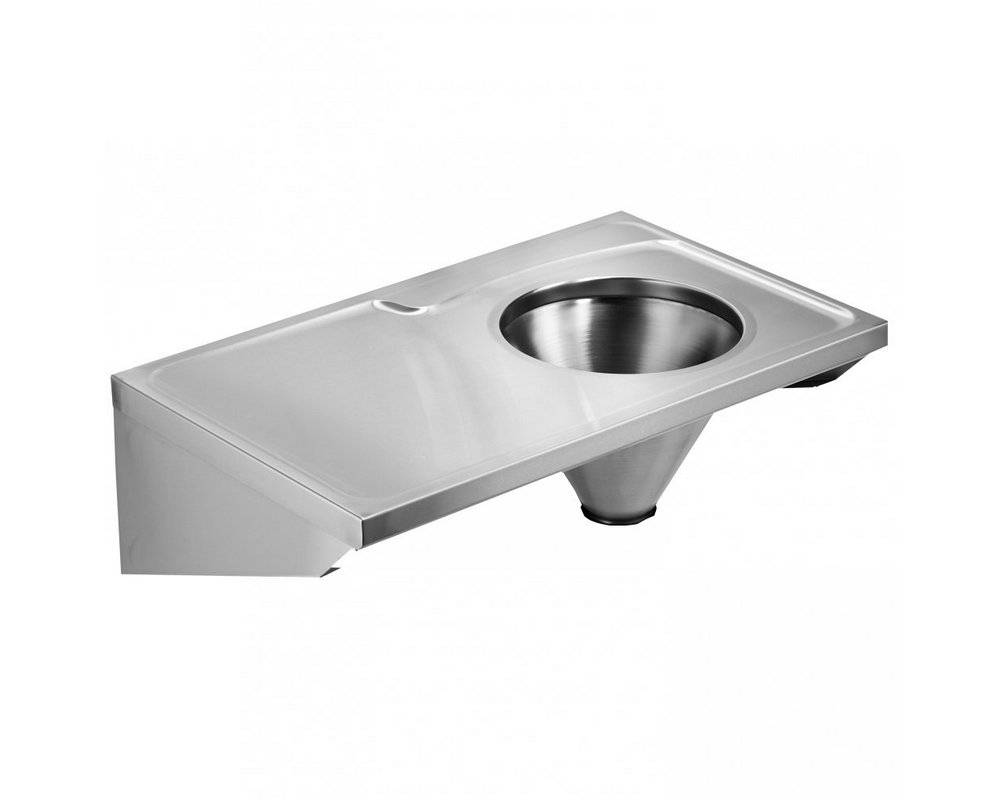

Left hand drainer - G22016L

Bushboard Washroom Systems Ltd Variant:

HBN compliant stainless steel hospital disposal unit with right or left hand drainer (ref: DU H).

Jump to:
+44 (0)1536 533620 Website

Application

Suitable for healthcare for disposal of liquid and solid waste in connection with clinical procedures. Typical room applications are dirty utility or disposal. For use with panel or wall mounted taps.

Description

A DU H hospital disposal unit manufactured from 1.2 mm thick, grade 1.4301 (304) stainless steel with a satin polish finish. The top is turned down on all four edges and incorporates a wet area recess. It is fitted with a sluice hopper at one end and has a back inlet for duct mounted cisterns. The hopper has a 110 mm diameter outlet that can accept a P or S trap, available as an extra. 9 litre capacity plastic cisterns with plastic downpipe are available and fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply.


The unit can be mounted on either stainless steel cantilever brackets, or stainless steel front leg supports. Front leg supports give a working height of 900 mm and have adjustable feet which can be screwed to the floor for extra stability.


Features and benefits:

  • Grade 1.4301 (304) stainless steel.

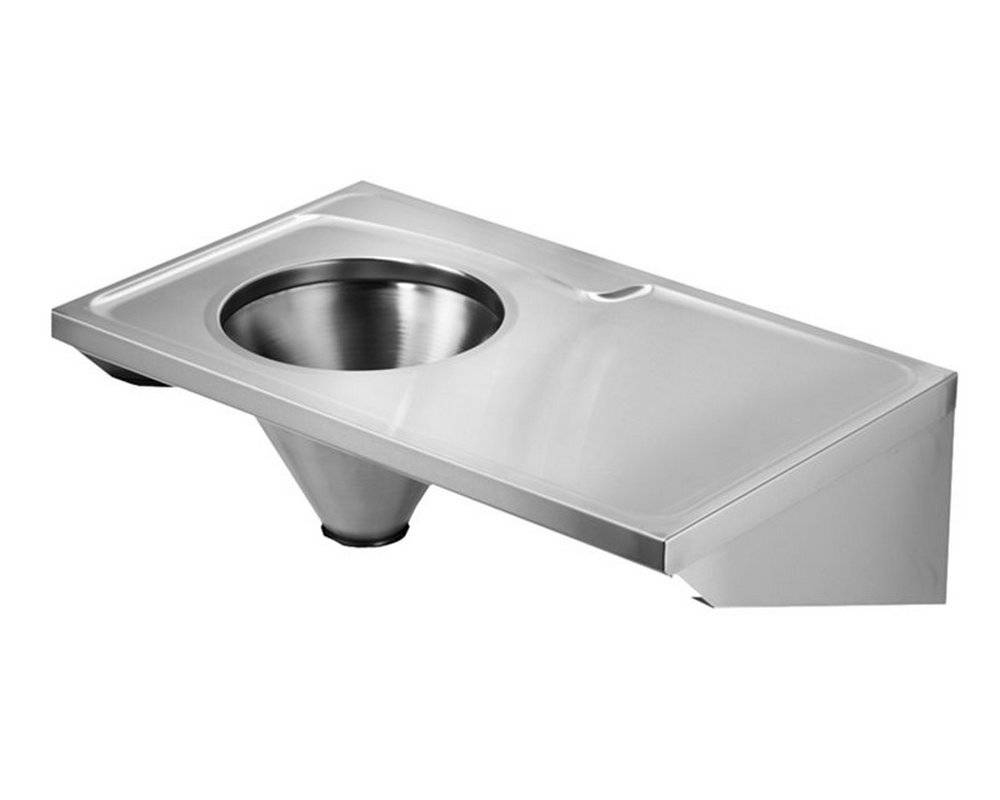

  • Left hand or right hand drainer (when facing the front of the unit).
  • Mounted on brackets or front leg supports.
  • Suitable for duct mounting.
  • Manufactured in accordance with the old HTM64 standard and the Health Building Notes 00-10, part C.
  • HBN 00-10 Part C compliant ref: DU H

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

1000 mm

Width

600 mm

Height

300 mm

900 mm

Guidance for specification option:

Working height with front leg supports.

Uniclass

Pr_40_20_93_37 Hospital pattern disposal unitsPrimary

CAWS

N13/382 Slop hoppers

N13/386 Disposal units

Specification data - Hospital pattern disposal units

Form

1000 x 600 mm hopper with plain top.

Finish and material

Satin stainless steel, Type 1.4301 (304).

Guidance for specification option:

Material thickness: 1.2 mm.

Hand

Left-hand drainer.

Options

Not required.

9 L plastic cistern with plastic downpipe.

P trap.

S trap.

Mounting

Wall mounted - stainless steel cantilever brackets.

Floor mounted - stainless steel front leg supports.

Weight

11.30 kg.

Manufacturer guidance

Net/ gross weight.

Outlet size

DN 100.
