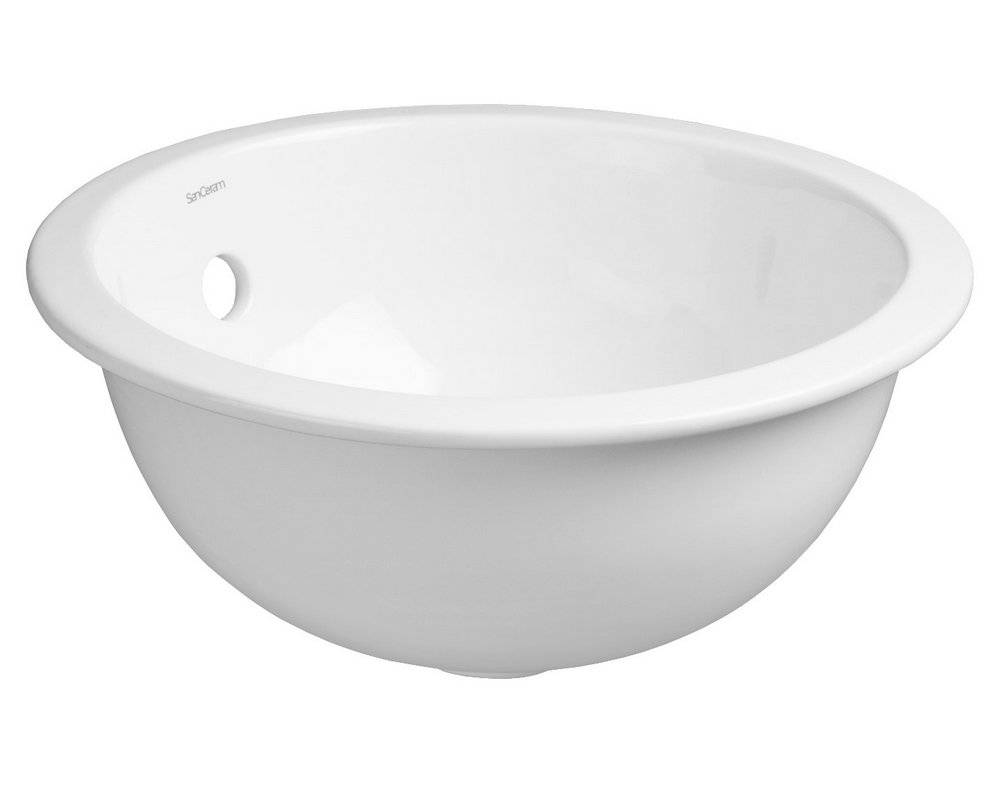

Langley Inset/ Undermounted 400 Washbasin
Verified by manufacturer 5 months ago
Countertop/ under mounted vanity basin.
Application
Suitable for all sectors excluding healthcare.
Description
Countertop/ under mounted vanity basin with no tap hole and overflow.
Features and benefits:
- Part of the Langley range.
- Minimalistic design.
- External overflow.
- Can be installed over counter or under counter.
- Bottom outlet for ease of maintenance.
- 400 mm diameter.
- Manufactured from high grade vitreous china.
General information
Color | White |
Finish | Smooth |
Material | Vitreous china |
Shape | Circle |
Length | 404 mm |
Width | 404 mm |
Height | 193 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Form | Vanity top (under-mounted).Vanity top (inset). |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | Alpine white. |

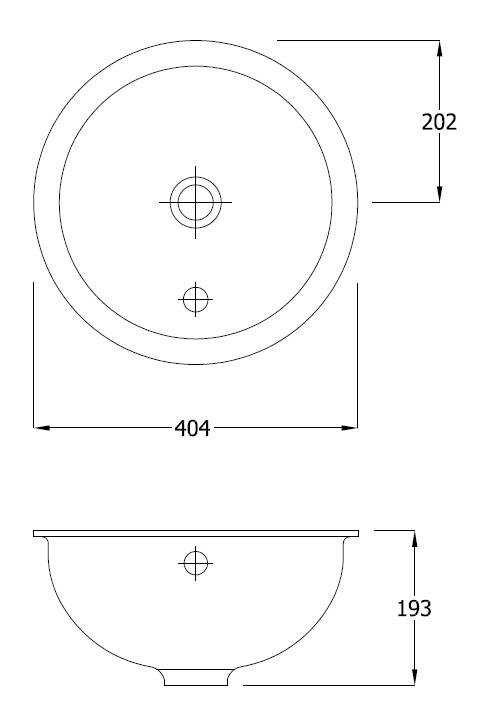

Size | 404 x 404 x 193 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Rear overflow hole. |
Waste | TSWC101.Guidance for specification option: 1 ¼” strainer waste 80 mm, slotted. TSWC103.Guidance for specification option: 1 ¼” swivel waste, slotted. TSWC105.Guidance for specification option: 1 ¼” plug and chain waste, slotted tail. TSWC107.Guidance for specification option: 1 ¼” click clack waste, slotted. |
Integral accessories | TSWC111.Guidance for specification option: Waste overflow adapter (required). |
Trap | A10R. Guidance for specification option: 1 ¼” resealing plastic bottle trap. TSWC112. Guidance for specification option: 1 1/4” metal bottle trap. TSWC114. Guidance for specification option: 1 1/4” modern metal bottle trap. |
Weight | 7.1 kg. |
Washbasin Fixing Clips | Not required. 0600212. Guidance for specification option: Fixing clips for under mounting (4 per basin). |
