LAS9010 Flush Bolt and Drop Seal

Verified by manufacturer 5 months ago

Lorient

Medium duty door flush bolt with drop seal.

Jump to:
+44 (0)1626 834252 Website

Application

For double swing doors, on both right and left-handed doors for the bottom or top of the door to secure the door leaf, and protect against sound, smoke, fire, draught, light and insects.

Description

Security flush bolt for double leaf doors to secure the inactive leaf. It is activated by a discreet Lorient branded lever, that drops the bolt into a sleek keep in the floor. Specifically designed for use with the rebated, high-performance drop seal; together they provide combined security, with acoustic, smoke and energy containment at the bottom of the door. Classified to BS EN 12051.


Features and benefits:

  • LAS9010 is a security device, its unique wrap-around shape of bolt enhances security.
  • Flush bolt integrates seamlessly with the drop seal; no extra kits required.
  • Smooth locking action with branded levers.
  • Does not penetrate the drop seal gasket.
  • Fixing: Semi-mortised onto the top or bottom of the door, fixing screws are supplied.
  • Suitable gap width: 1–13 mm.

General information

Color

Silver

Finish

Brushed

Material

Stainless steel

Guidance for specification option:

Flush bolt - Brushed stainless steel.

Aluminium

Guidance for specification option:

Drop seal

Shape

Rectangle

Length

435 mm

535 mm

635 mm

735 mm

835 mm

Show more

Manufacturer guidance

Drop seal standard lengths. Note: each length can be cut to the next size down. The 335mm can be cut back to 255mm.

Width

24 mm

Height

242 mm

Uniclass

Pr_30_36_08_77 Single point boltsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/582 Door bolts

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

P21/860 Door seals

Specification data - Single point bolts

Standard

To BS EN 12051.

Classification grades (minimum)

-

Category of use

To BS EN 12051, grade 1.

Durability (number of test cycles)

50 000 cycles.

Fire safety

To BS 476-20 and BS 476-22, up to 60 minutes.

Guidance for specification option:

When combined with an FD60 door.

Subject to door leaf construction/ specifications and inclusion of cladding kit. Cladding kits must be used for fire-rated variants.

Corrosion resistance

To BS EN 12051, grade 3.

Security

To BS EN 12051, grade 1.

Bolt type

Flush bolt.

Size

24 x 242 mm.

Guidance for specification option:

W x H.

Material and finish

Brushed stainless steel.

Guidance for specification option:

Flush bolt.

Colour

Black.

Grey.

Integral accessories

Flush bolt bottom plate.

Guidance for specification option:

40 x 50 x 2 mm (w x l x h).

Drop seal

Silicone rubber.

Acoustic drop seal

To BS EN ISO 10140-1, up to 41 dB.

Length

335 mm.

435 mm.

535 mm.

635 mm.

735 mm.

Show more

Sustainability data

Country of product manufacture

United Kingdom

Literature

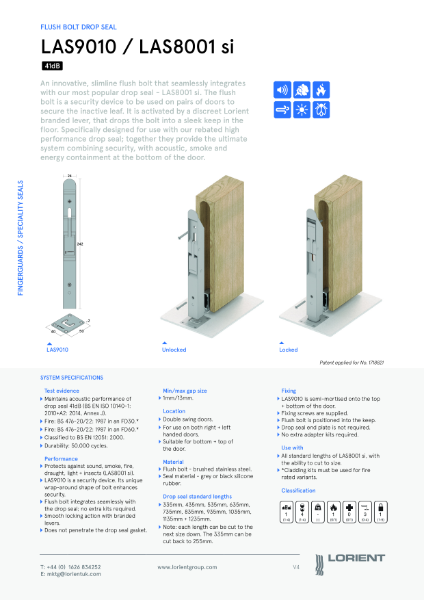

LAS9010 Flush bolt + drop seal datasheet
