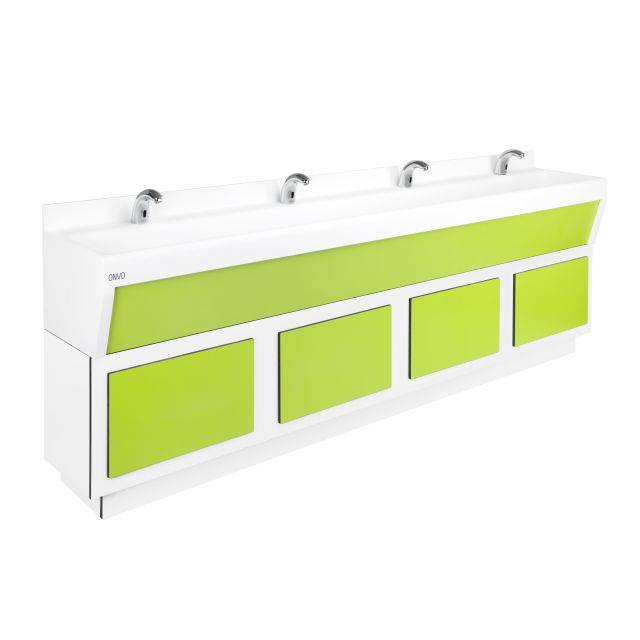

Latherwash 2D Curve with Modular Frame

Verified by manufacturer 11 months ago

1202D/C/MF

ONVO Modular Limited Variant:

Slim washing trough with modular frame.

Jump to:
+44 (0)161 3025340 Website

Application

Suitable for use in public bathrooms or educational facilities accommodating KS2–KS4.

For installations where the pipework below the trough needs to be concealed, or where the trough cannot be cantilevered off the wall.

Description

Slim washing trough with modular frame.


Features and benefits:

  • Curved front edge with a radius of 20 mm and coved splashback with a radius of 10 mm.
  • Available in variations to suit any number of users.
  • Taps are to be mounted onto the deck of the trough, and therefore no void is required behind.
  • The modular frame comes to site fully pre-assembled with all specified panel colours.
  • Bespoke sizes are available on request; consult manufacturer for details.
  • Other colour/ finishes are available; consult manufacturer for details.
  • Frame and front panels: Solid grade laminate (SGL).


Recommended fixing heights: 700 mm for use in primary schools, 800 mm for use in KS3, 850 mm for use in KS4.

General information

Color

White

Finish

Laminate

Material

Corian

Warranty description

Ten year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/346 Washing troughs

Specification data - Wash troughs

Form

Wall mounted.

Stations

Two.

Materials

-

Body

Corian.

Finish and colour

Laminate, glacier white.

Size

400 mm.

Guidance for specification option:

Depth.

Water supply, overflow and waste holes

-

Waste

1 ½” chrome fitting provided.

Product Reference

Latherwash 2D Curve with Modular Frame

Length

1200 mm.

Guidance for specification option:

Suitable for two users.

Front panel

White.

Other.

Guidance for specification option:

Any Solid Grade Laminate (SGL) colour can be matched, consult manufacturer for details.

Frame panels

White.

Other.

Guidance for specification option:

Any Solid Grade Laminate (SGL) colour can be matched, consult manufacturer for details.

Accessories/ Other requirements

Not required.

Push Button Self Closing Tap (220).

Guidance for specification option:

Deck mounted. Chrome. Flow rate: 3 L/min.

Operation pressure: 0.5–8 bar.

Run time: 7–15 seconds.

Pre-mixed temperature control.

Supplied with a three year warranty.

CE marked, WRAS and BREEAM approved. Contributes towards LEED credits.

Sensor Tap (141C).

Guidance for specification option:

Chrome. Flow rate: 4 L/min. Battery powered. 115 mm long.

Sensor Tap (142C).

Guidance for specification option:

Chrome. Flow rate: 4 L/min. Mains powered. 115 mm long.

Soap Dispenser (766C).

Guidance for specification option:

Chrome, push operation. Capacity: 1 L. 114 mm long.

Fixings

Modular frame.

Guidance for specification option:

Modular frame system included to fix to specialist Corian under trough rib system.
