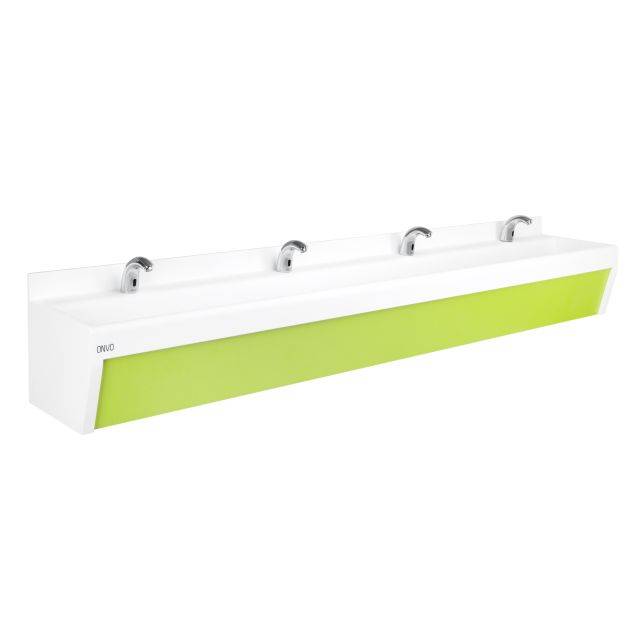

Latherwash 2D Curve
Verified by manufacturer 11 months ago
1202D/C
1202D/C
Slim washing trough for installing directly on to solid walls.
Application
Suitable for use in public bathrooms and educational facilities for installation directly onto a solid wall in areas which have a lack of void space.
Description
Slim washing trough for installation directly to solid walls.
Features and benefits:
- Curved front edge with a radius of 20 mm and coved splashback with a radius of 10 mm.
- Available in variations to suit any number of users.
- Taps are to be mounted onto the deck of the trough, and therefore no void is required behind.
- No boxing in underneath is required, creating a minimalistic, floating effect.
- Bespoke sizes are available on request; consult manufacturer for details.
- Other colours and finishes are available; consult manufacturer for details.
- Front panel: Solid grade laminate (SGL).
Recommended fixing heights: 700 mm for use in primary schools, 850 mm for use in secondary schools.
General information
Shape | Rectangular |
Color | White |
Finish | Laminate |
Material | Corian |
Warranty description | Ten years |
Uniclass | |
CAWS | N13/346 Washing troughs |
Specification data - Wash troughs
Form | Wall mounted. |
Stations | Two. |
Materials | |
Body | Corian. |
Finish and colour | Laminate, glacier white. |
Size | 400 mm.Guidance for specification option: Depth. |
Water supply, overflow and waste holes | |
Waste | 1 ½” chrome fitting provided. |
Product Reference | Latherwash 2D Curve |
Length | 1200 mm. Guidance for specification option: Suitable for two users. Requires three fixing brackets. |
Front panel | White. Other. Guidance for specification option: Any Solid Grade Laminate (SGL) colour can be matched, consult manufacturer for details. |
Accessories/ Other requirements | Not required. Push Button Self Closing Tap (220). Guidance for specification option: Deck mounted. Chrome. Flow rate: 3 L/min. Operation pressure: 0.5–8 bar. Run time: 7–15 seconds. Pre-mixed temperature control. Supplied with a three year warranty. CE marked, WRAS and BREEAM approved. Contributes towards LEED credits. Sensor Tap (141C). Guidance for specification option: Chrome. Flow rate: 4 L/min. Battery powered. 115 mm long. Sensor Tap (142C). Guidance for specification option: Chrome. Flow rate: 4 L/min. Mains powered. 115 mm long. Soap Dispenser (766C). Guidance for specification option: Chrome, push operation. Capacity: 1 L. 114 mm long. |
Weight | 27 kg. Guidance for specification option: 602D. 42 kg. Guidance for specification option: 1202D. 58 kg. Guidance for specification option: 1802D. 73 kg. Guidance for specification option: 2402D. 88 kg. Guidance for specification option: 3002D. |
Fixings | Steel brackets. Guidance for specification option: Tension in top fixing location: 2.96 kN. Shear in bottom fixing location: 1.92 kN. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
