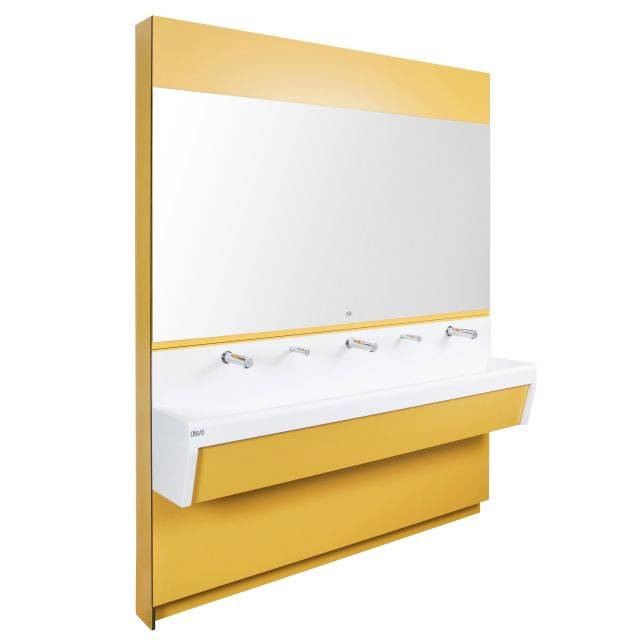

Latherwash 2W Curve With Modular Wall

Verified by manufacturer 11 months ago

1202W/C/MW

ONVO Modular Limited Variant:

Wash trough with modular wall.

Jump to:
+44 (0)161 3025340 Website

Application

Suitable for use in public bathrooms.

Description

A load-bearing wall for the cantilevered wash trough.


Features and benefits:

  • The wall is a floor standing steel frame which is fixed back to the wall of the room and has all the panels fixed to it.
  • Enables full access to all plumbing work through the hinged mirror.
  • The installation is quick due to all panels being clip on and pre-fitted.
  • Available in variations to suit two to five users.
  • Curved front edge with a radius of 20 mm.
  • Modular bracket system included.
  • Includes acrylic mirror.
  • Front/ Wall panel: Solid grade laminate (SGL, wide range of colours available) and can be matched exactly to cubicle manufacturer's colours.

General information

Finish

Laminate

Material

Corian

Acrylic

Warranty description

Ten year

Size

500 mm

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/346 Washing troughs

Specification data - Wash troughs

Form

Wall mounted.

Stations

Two.

Materials

-

Body

Corian.

Acrylic.

Finish and colour

Laminate.

Size

500 mm.

Guidance for specification option:

Depth.

Water supply, overflow and waste holes

-

Waste

1 ½” chrome fitting provided.

Product Reference

Latherwash 2W Curve With Modular Wall

Type

1200 mm (1202W/C/MW).

Guidance for specification option:

Two users.

Fixings

Modular wall with brackets for fixing to Corian under trough rib system.

Accessories

None.

Curvewash 2W.

Latherwash 2W.

Push Tap 260.

Sensor Tap 180.

Guidance for specification option:

Flow rate: 4 L/s. Chrome finish. Mains powered.

Show more

BIM objects

Platform Compatible Version
Revit
-

1
