Verified by manufacturer 5 months ago
67410/AN/W
Certificate of Approval
Certificate type

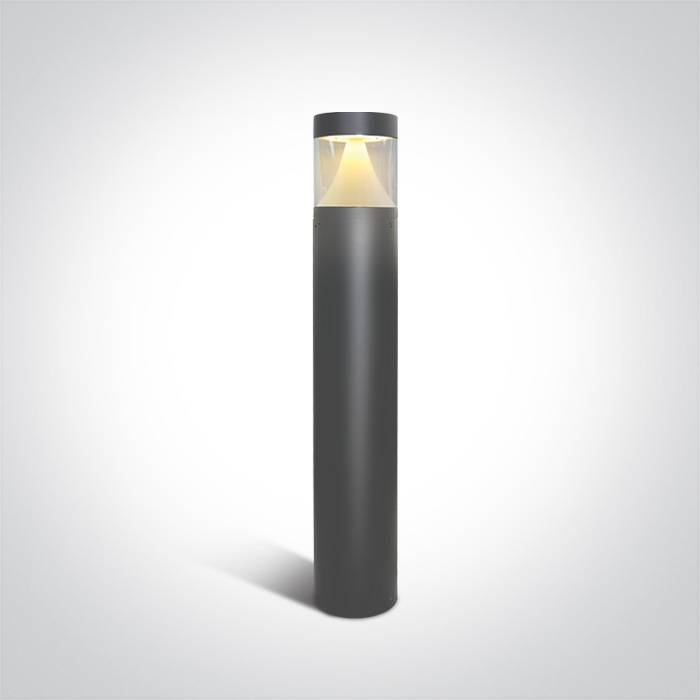

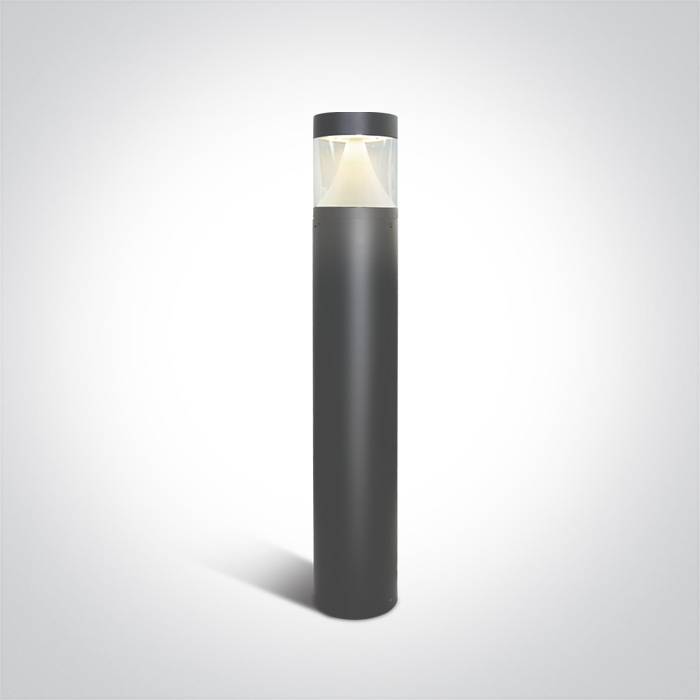

LED cone reflector bollard. 12W LED Bollard, IP65 for Garden illumination. Supplied with non-dimmable LED driver. Complies with standard EN60598-1 and any other specific standards.
Suitable for use in home gardens, business Units, commercial and retail applications.
12 W LED Bollard for garden illumination.
Features and benefits:
Color | Grey Other Guidance for specification option: LED colour temperature: 3000 K or 4000 K. |
Material | Polycarbonate Metal Guidance for specification option: Die cast. |
Shape | Circle |
Length | 800 mm |
Width | 120 mm Guidance for specification option: Diameter. |
Height | 800 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/560 External luminaires |
Standard | To BS EN 60598-1 and BS EN 60598-2-22.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Outdoor LED bollard for garden illumination. |
Classification | |
Electric shock | To BS EN IEC 60598-1, Class I. |
Ingress protection (minimum) | IP65. |
Suitability for direct mounting on normally flammable surfaces | Suitable for direct mounting on normally flammable surfaces.Guidance for specification option: F Mark. |
Circumstances of use | Normal. |
Rated maximum ambient temperature | -20 to +55℃. |
Impact protection (minimum) | IK08. |
Controlgear position | Integral within luminaire. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
LED luminaires | |
Safety standard | Class II. |
Initial LED luminaire efficacy (minimum) | 83.33 lm/W. |
Wattage | 12 W. |
Colour temperature | 3000 K. |
Colour rendering index (Ra) | 80. |
Output | 1000 lm. Manufacturer guidanceLumen output. |
Input | Constant current. |
Input current | 500 mA. |
Colour | Anthracite. Manufacturer guidanceBollard colour. |
Dimensions | 800 x Ø120 mm. Manufacturer guidanceHeight x diameter. |
Country of material origin | China |
Country of product manufacture | China |
