Legacy Slimline Partition - Partition System
Verified by manufacturer 3 months ago
CAB membership
Certificate type
CAB Closed Loop Recycling Scheme
Certificate type
For partitions or less demanding facade work, a modular sash construction system which integrates fully with the Comar 1 system.
Application
Ideally suited for partitions and creating useable spaces without compromising light or space. Can also be used for less demanding facade work.
Description
For partitions or less demanding facade work, the non thermal Legacy Slimline Partition comprises a two part channel and plate mullion clipped together to form 45 x 45 mm box section enabling a modular sash construction system which integrates fully with the Comar 1 system. All extrusions have screw-fixing ports for added strength and offer a range of profiles to support both aluminium and timber doors.
Features and benefits:
- Aluminium alloy 6063 T5 or T6 to BS 1474.
- Accuracy: Height and width: ± 1.5 mm.
- Accuracy: Difference in length of diagonals: 4 mm.
General information
Color | Other Black Grey |
Finish | Anodized Powder-coated |
Material | Aluminium Guidance for specification option: Aluminium alloy aluminium alloy 6063 T5 or T6 to BS 1474. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option:
30 year Guidance for specification option:
25 year Guidance for specification option:
Other Guidance for specification option:
|
Uniclass | |
CAWS | L10/56 Glazed screen system L10/560 Glazed screen system |
Specification data - Aluminium window walls
Dimensions and configurations | Guidance for specification option: Consult with Comar for recommendations and details. |
Product performance | |
Fire performance | |
Fire resistance | Guidance for specification option: Consult with Comar for recommendations and details. |
Environmental | |
Acoustic performance rating | Guidance for specification option: Consult with Comar for recommendations and details. |
Framing | |
Finish as delivered | |
Coating | Anodized.Powder-coated. |
Colour | Guidance for specification option: Consult manufacturer and insert requirements. |
Glazing or infill | |
Composition | Guidance for specification option:
|
Doors | |
Panels | Guidance for specification option: Consult with Comar for recommendations and details. |
Fixing features | Guidance for specification option: Consult with Comar for recommendations and details. |
Accessories | Guidance for specification option: Consult with Comar for recommendations and details. |
Seals | EDPM glazing gaskets and seals. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
Third party certifications
CAB membership
Council for Aluminium in Building
CAB Closed Loop Recycling Scheme
Council for Aluminium in Building Closed Loop Recycling Member 2024
Literature
Comar life expectancies and warranties to BS 7543:2015

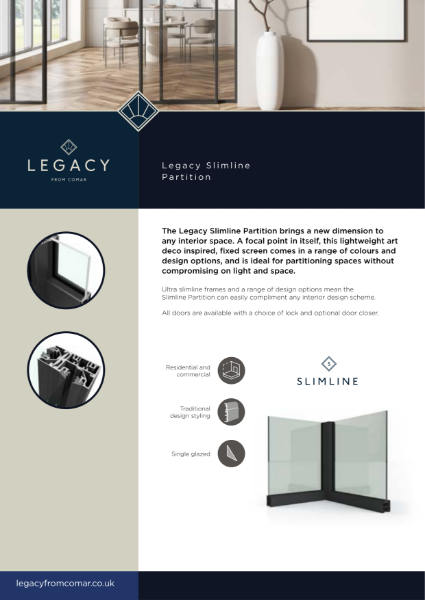

Legacy Slimline Partition
