Grass Concrete Ltd

Split or square faced, unplanted dry bonded retaining wall block.

Jump to:
+44 (0)1924 379443 Website

Application

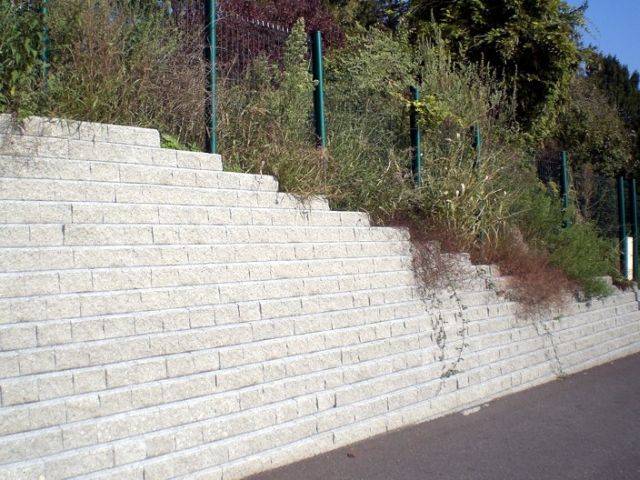

  • Split textured or smooth faced retaining walls.
  • Marine walls.
  • Bridge abutments.

Description

Dry laid, interlocking concrete blocks that simply lock into place to a preset face angle creating a simple dry-build solution to an engineering problem.


Features and benefits:

  • Delivered to site in 1000 mm wide units that are then easily split into smaller units to form a natural stone appearance.
  • positioning of interlocking splines enables the wall to be constructed to a number of different angles.
  • When combined with our BETONAP geogrids, significant resistance to overturning can be achieved.

General information

Color

Grey

Finish

Coarse

Material

Concrete

Guidance for specification option:

Machine pressed and vibrated concrete based upon a 35n/mm² compressive strength mix.

Shape

Rectangle

Length

200 mm

Width

1000 mm

Height

130.5 mm

Uniclass

Pr_20_93_71_15 Concrete interlocking blocksPrimary

CAWS

F10/18 Concrete facing blockwork

F10/110 Clay facing brickwork

F10/255 Concrete facing blockwork

F10/215 Concrete facing brickwork

F10/5 Facing brickwork

Q10/25 Concrete block

Q10/150 Concrete block

D41/310 Drystack interlocking masonry

Product range

Betoconcept range

Specification data - Concrete interlocking blocks

Dimensions

200 x 1000 x 130.5 mm.

Colour

Buff.

Natural.

Red.

Bond

Header.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100% recyclability

Literature

Betoconcept

Betoconcept
