Liberator Powered Ventilator

Verified by manufacturer 5 months ago

W-Liberator FCO

Colt International Ltd Variant:
Third party certifications:
  • Certificate of constancy of performance

    Certificate type

Powered smoke and hot gas extract ventilator.

Jump to:
+44 (0)23 9245 1111 Website

Application

Smoke and hot gas extraction; suited to most industrial and commercial buildings.

Can provide day-to-day ventilation for climate control.

Description

Ventilator for extraction of smoke and hot gases in the event of a fire.


Features and benefits:

  • Suited to most industrial and commercial buildings.
  • Can provide day-to-day ventilation for climate control as well as smoke ventilation.
  • Fulfils the time/ temperature requirements of EN 12101-3, achieving F200 (200°C/120 min), F300 (300°C/60 min) and F400 (400°C/ 120 min) in accordance with EN 12101-3.
  • Available in roof- or wall-mounted versions.
  • Shutter, flap or louvred ventilator as termination.
  • Robust, reliable and durable and low weight – made from aluminium.
  • Low power consumption

General information

Finish

Mill

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_65_67_29_64 Powered smoke and heat exhaust ventilatorsPrimary

CAWS

H11/437 Louvres

L10/47 Roof ventilators

L10/490 Roof ventilators

Product range

Mechanical Smoke Ventilators

Specification data - Powered smoke and heat exhaust ventilators

Standard

To BS EN 12101-3.

Fire performance

-

Classification

Achieves F200 120, F300 60 and F400 120.

Guidance for specification option:

In accordance with EN 12101-3.

Application category

Dual purpose use.

Snow load classification

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Duty

-

Air volume

3.6–8.9 m³/s.

Guidance for specification option:

12 900–32 050 m³/h.

Sound power level

58–87 dB(A) at 3 m.

Guidance for specification option:

Sound pressure level.

Electrical supply

-

Nominal voltage

Manufacturer's standard.

Frequency

Manufacturer's standard.

Electrical safety

Manufacturer's standard.

Mounting

Wall.

Arrangement

Shutters with louvred ventilation as termination.

Materials

-

Frame

Corrosion-resistant aluminium alloy.

Louvres

Manufacturer's standard.

Finish

Mill finish.

Powder-coated, RAL.

Guidance for specification option:

Insert requirements.

PVF2, colour.

Guidance for specification option:

Insert requirements.

Controls

Spring mechanism (to open)/ rotary electric motor (to close).

Guidance for specification option:

With fusible links to open the shutter at a pre-defined temperature.

Type

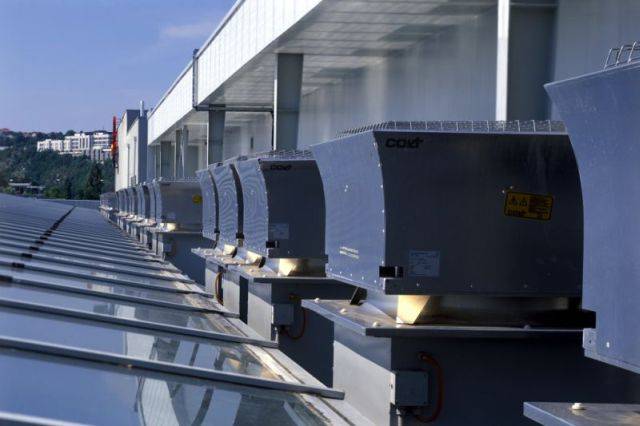

T-Liberator: Roof mounted with four spring loaded shutters and an aerodynamic cowl

WL/FLAP Wall mounted, single insulated flap ventilator

WL/FCO Wall mounted, louvred ventilator

Ingress protection

IP55.

Insulation

Class H.

Fan

630 mm.

800 mm.

Manufacturer guidance

Nominal size.

Third party certifications

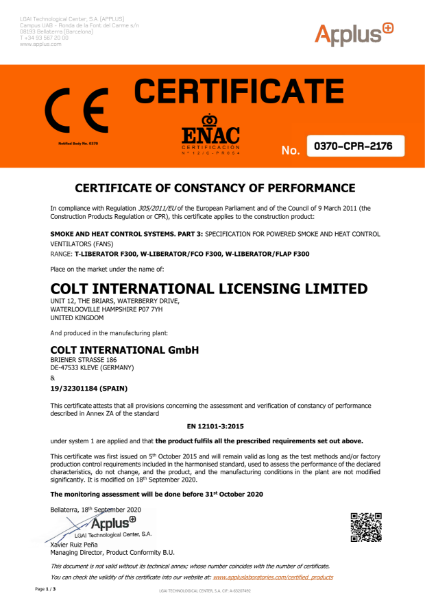

Certificate of constancy of performance
