Linea 2 Wall - Solid Timber Acoustic Wall Cladding

Name: Linea 2 Wall - Solid Timber Acoustic Wall Cladding
Brand: Acoustic Products Ltd
SKU: rynEjVLFJ8bkdFbaawXsuQ

Verified by manufacturer 4 months ago

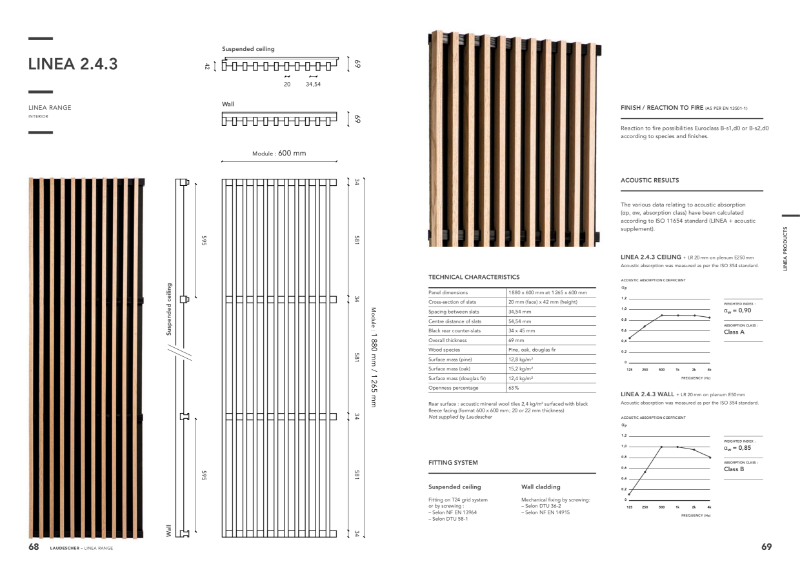

LINEA 2.4.3

Acoustic Products Ltd

Third party certifications:

Cradle to Cradle Certified
Certificate type
EPD
Certificate type
FSC
Certificate type
PEFC
Certificate type
Certified B Corporation
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

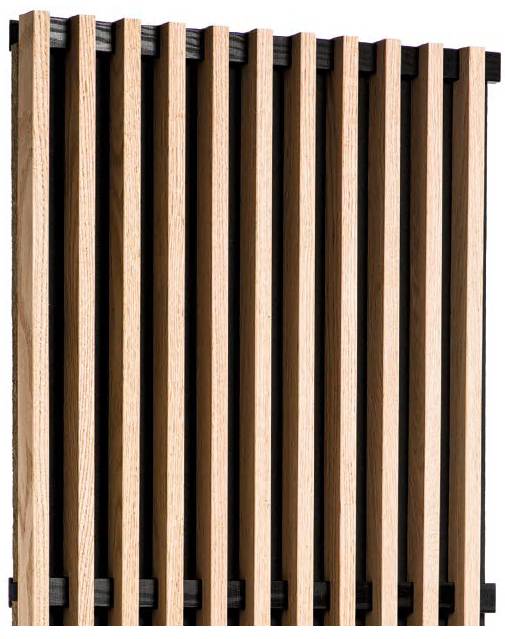

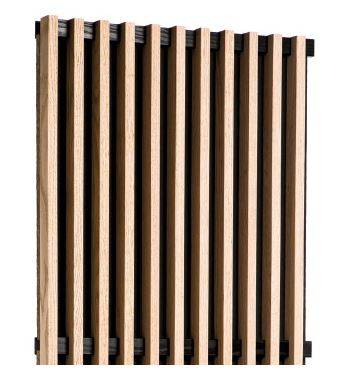

Solid timber acoustic wall cladding for internal environments.

Jump to:

+44 (0)1227 281140 Website

Application

Wall cladding.

Description

Timber panels are specifically engineered to integrate standard acoustic absorbing tiles, increasing their acoustic performances. They can be used to control the sound environment in each type of space, from meeting rooms to auditoriums, based on certified results from laboratory.

Features and benefits:

Available in Pine, oak or douglas fir.
Reaction to fire possibilities Euroclass B-s1,d0 or B-s2,d0 according to species and finishes.
Compliant with standard EN 14915 Solid wood paneling and cladding.
ISO 9001 (quality commitment).

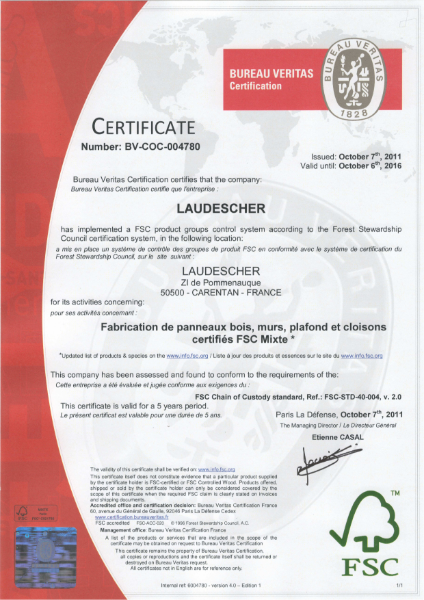

FSC ® LABEL –no FSC-C125874.
PEFC TM LABEL– no PEFC /10-31-2391 (sustainable forest management).
LINEA range certified Cradle to Cradle™ Bronze level.
CE marking.

General information

Color	Brown White Black Other
Finish	Varnished Waxed
Material	Timber
Shape	Rectangle
Length	1880 mm 1265 mm
Width	600 mm
Height	69 mm 95 mm 117 mm

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Standard	To BS EN ISO 11654.
Third-party certification	CE marked, FSC ® and PEFC™ Label.
Form	Panel.
Rigidity	Rigid.
Application	Wall mounting.
Material	Solid timber.
Material density	12.8 kg/m². Guidance for specification option: Pine. 15.2 kg/m². Guidance for specification option: Oak. 12.4 kg/m². Guidance for specification option: Douglas fir.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class B to BS EN ISO 11654. Guidance for specification option: LINEA 2.4.3 WALL + LR 20 mm on plenum E50 mm.
Fire performance	-
Reaction to fire	To BS EN 13501-1, B-s1,d0. To BS EN 13501-1, B-s2, d0. Manufacturer guidance According to species and finishes. Consult manufacturer and insert requirement.
Dimensions	-
Size (length x width)	1880 x 600 mm. 1265 x 600 mm.
Thickness (overall)	69 mm.
Profile	Linear.
Edges	Square.
Surface pattern	Solid.
Finish	Natural. Varnished. Waxed.
Colour	Natural pine. Natural oak. Natural douglas fir. Clear varnish. White wash soft varnish. White wash varnish. White wax. Honey wax. Chocolate wax. Cherry wax. Mahogany wax. Grey wax. Wenge wax. Oak wax. White oak wax. Douglas wax. Green wax. Black wax.
Accessories	Not required. Additional counter-slat. Additional slat. Angled cutting profile. Internal/ external corner profile. Extension finishing profile. Particle black plate. Particle plate machining option. Panel machining option with inseraion of particle plates.

Sound absorption	0.85 αw. Guidance for specification option: LINEA 2.4.3 WALL + LR 20 mm on plenum E50 mm.
Cross section	20 x 42 mm. Guidance for specification option: Face x height. Manufacturer guidance Cross-section of slats.
Spacing	34.54 mm. Manufacturer guidance Spacing between slats.
Centres	54.54 mm. Manufacturer guidance Centre distance of slats.
Slats	34 x 45 mm. Manufacturer guidance Back rear counter slats.
Fitting	Mechanical fixing by screwing. Manufacturer guidance According to: DTU 36-2. NF EN 14915.
