LINEA 9 Suspended Ceiling - Solid Timber Acoustic Panel

Name: LINEA 9 Suspended Ceiling - Solid Timber Acoustic Panel
Brand: Acoustic Products Ltd
SKU: jmnfeFtEJEEYMHLkSMBaZe

Verified by manufacturer 4 months ago

LINEA 9.2.1

Acoustic Products Ltd

Third party certifications:

Cradle to Cradle Certified
Certificate type
EPD
Certificate type
FSC
Certificate type
PEFC
Certificate type
Certified B Corporation
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

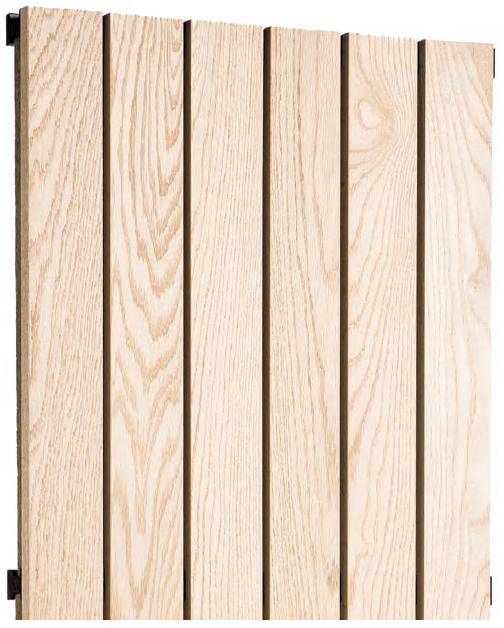

Solid timber acoustic suspended ceiling.

Jump to:

+44 (0)1227 281140 Website

Application

Suspended ceiling applications.

Description

Timber panels are specifically engineered to integrate standard acoustic absorbing tiles, increasing their acoustic performances. They can be used to control the sound environment in each type of space, from meeting rooms to auditoriums, based on certified results from laboratory.

Features and benefits:

Available in Pine, oak, douglas fir or spruce.
Reaction to fire possibilities Euroclass B-s1,d0 or B-s2,d0 according to species and finishes.
Compliant with standard EN 14915 Solid wood paneling and cladding.
ISO 9001 (quality commitment).
FSC ® LABEL –no FSC-C125874.
PEFC TM LABEL– no PEFC /10-31-2391 (sustainable forest management).
LINEA range certified Cradle to Cradle™ Bronze level.
CE marking.

General information

Color	Brown White Black Other
Finish	Varnished Waxed
Material	Timber
Shape	Rectangle
Length	1880 mm 1265 mm
Width	600 mm
Height	60 mm 55 mm

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K10/215 Suspended ceiling system K10/485 Suspended ceiling grids K40/105 Suspended ceiling system K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Standard	To BS EN ISO 11654.
Third-party certification	CE marked, FSC ® and PEFC™ Label.
Form	Panel.
Rigidity	Rigid.
Application	Ceiling mounting.
Material	Solid timber.
Material density	14.7 kg/m². Guidance for specification option: Pine. 17.5 kg/m². Guidance for specification option: Oak. 14.3 kg/m². Guidance for specification option: Douglas fir. 13.9 kg/m². Guidance for specification option: Spruce.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class D to BS EN ISO 11654. Guidance for specification option: LINEA 9.2.1 CEILING + LR 20 mm on plenum E250 mm.
Fire performance	-
Reaction to fire	To BS EN 13501-1, B-s1,d0. To BS EN 13501-1, B-s2, d0. Manufacturer guidance According to species and finishes. Consult manufacturer and insert requirement.
Dimensions	-
Size (length x width)	1880 x 600 mm. 1265 x 600 mm.
Thickness (overall)	60 mm.
Profile	Linear.
Edges	Square.
Surface pattern	Solid.
Finish	Natural. Varnished. Waxed.
Colour	Natural pine. Natural oak. Natural douglas fir. Natural spruce. Clear varnish. White wash soft varnish. White wash varnish. White wax. Honey wax. Chocolate wax. Cherry wax. Mahogany wax. Grey wax. Wenge wax. Oak wax. White oak wax. Douglas wax. Green wax. Black wax.
Accessories	Not required. Additional counter-slat. Additional slat. Angled cutting profile. Internal/ external corner profile. Extension finishing profile. Particle black plate. Particle plate machining option. Panel machining option with inseraion of particle plates.

Sound absorption	0.30 αw. Guidance for specification option: LINEA 9.2.1 CEILING + LR 20 mm on plenum E250 mm.
Cross section	90 x 20 mm. Guidance for specification option: Face x height. Manufacturer guidance Cross-section of slats.
Slats	34 x 45 mm. Manufacturer guidance Black rear counter-slats.
Spacing	10 mm. Manufacturer guidance Spacing between slats.
Centres	100 mm. Manufacturer guidance Centre distance of slats.
Fittings	T24 grid system. Screwing. Manufacturer guidance According to: NF EN 13964. DTU 58-1.
