Linear and Trapezoidal Firestop - Linear firestop
Verified by manufacturer 2 months ago
ROCKWOOL Linear Firestop 2A:100 x 50 x 1000 mm
ROCKWOOL Linear Firestop 2A:100 x 50 x 1000 mm
A range of strips and pre-shaped blocks for fire-stopping gaps.
Application
Linear and Trapezoidal Firestop Systems have been developed to provide up to four hours firestopping at the junctions of compartment walls and floors.
Description

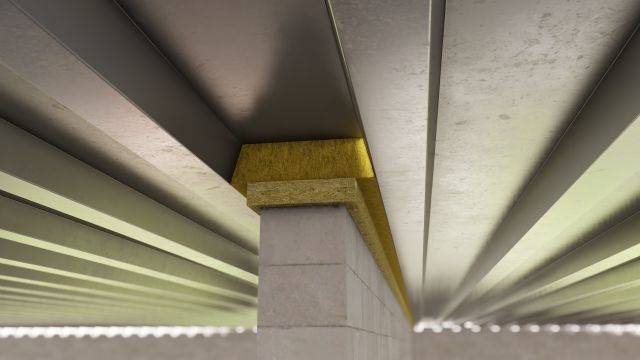

A range of strips and pre-shaped blocks of ROCKWOOL high-density stone wool insulation for fire-stopping gaps at the top of fire-resistant walls to the underside of floor and roof constructions. ROCKWOOL has expertly developed Linear and Trapezoidal Firestop Systems to provide resistance at the junctions of compartment walls and floors, with a product solution tailored to suit various profiles.
Part of the ROCKWOOL FIREPRO© range, this product provides solutions to a wide range of construction elements including masonry walls with a density of at least 400 kg/m³, as well as ensuring both fire integrity and insulation criteria for concrete decks, composite decks and simple profiled sheeting.
Features and benefits:
- Up to four hours fire resistance.
- Suitable for walls ranging from 400 kg/m³.
- Manufactured for a wide range of profiles.
- Easy installation.
- Minimizes acoustic flanking transmission.
General information
Color | Brown |
Finish | Natural |
Material | Rock fibre mineral wool |
Shape | Rectangle Trapezoid |
Length | 1000 mm 300 mm |
Width | 100 mm 150 mm 200 mm |
Height | 30 mm 40 mm 50 mm 100 mm |
Uniclass | |
CAWS | F30/670 Head of non-loadbearing walls G30/240 Fire resisting profile fillers |
Specification data - Mineral wool fire-stopping
Material | |
Type | Flexible. |
Density | 110 kg/m³. |
Fire performance | Euroclass A1 non-combustible, up to four hours. |
Thickness | 50 mm. |
Width | 100 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Rock fibre mineral wool |
Recyclability | Can be recycled Guidance for specification option: ROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
