Linebacker® PAS 68 Crash Fence

Verified by manufacturer 4 months ago

Jacksons Fencing Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Galvanized steel cable crash fence impact tested in accorandance to PAS 68.

Jump to:
0800 408 4757 Website

Application

For high security sites and public areas.

Description

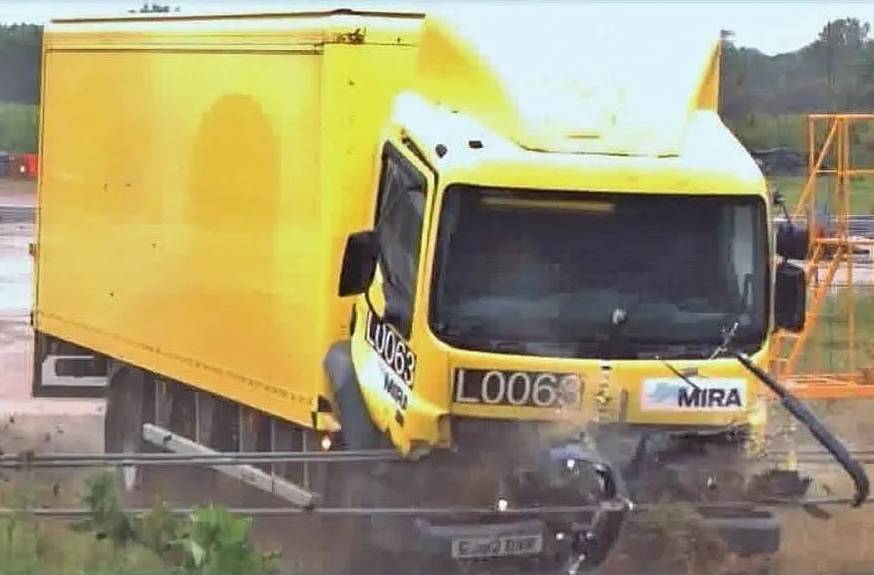

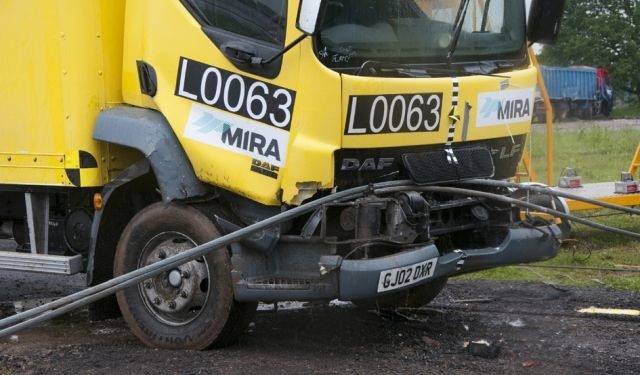

Cable crash fence and gate system has passed the BSi PAS 68:2010 standard for the performance of vehicle security barriers and their supporting foundations when subject to a single horizontal impact. It will arrest a 7500 kg (7.5 tonne) vehicle travelling at 50 mph (80 km/h) within 7 m.

The system may be used as a stand-alone system. Additionally, this fence system may be retrofitted to reinforce any existing security fence. Cables are run in single unbroken lengths between end posts (at 6 m centres). The end posts are fitted with a distinctive crumple zone which absorbs impact energy before bring the truck to a halt.


Features and benefits:

  • Galvanized steel cables.
  • Cables do not require re-tensioning on site.
  • Foundation is 500 mm.
  • Performance classification: V/7500(N2)/80/90:7.3/21.4.
  • Timber post and rail ‘dressing’ option available for a discreet solution.
  • Design eliminates potential vulnerable fixings.
  • Fast installation times with no special tools required.
  • Minimal spares required in the event of an attack.
  • Shallow foundation makes it suitable for use when services are running through the fence line.
  • Available in minimum lengths of 25m and maximum 175m.
  • Can be retrofitted to existing fences.

General information

Color

Grey

Other

Finish

Galvanized

Pre-treated

Material

Steel

Wood

Length

2500 mm

175000 mm

Bespoke

Width

Bespoke

Warranty description

25 year

Uniclass

Ss_25_14_63_51 Metal post and rail fencing systemsPrimary
Ss_25_15_60_56 Metal post and rail barrier systems

CAWS

Q41/170 Vehicle safety fences – metal

Specification data - Metal post and rail fencing systems

Posts

Steel, hot-dip galvanized to BS EN ISO14061.

Post foundations

750/ 500 mm.

Guidance for specification option:

End strainers/ intermediate posts.

Rails

Galvanized steel cables.

Site applied finishes

-

Manufacturer guidance

Insert requirements or omit.

System accessories

-

Manufacturer guidance

Can be retrofitted to existing security fencing, timber post and rail 'dressing' available. Insert requirements or remove as required.

Standard

Certified to BSi PAS 68:2010 V/7500

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
