LIPVS30 Liquid Waterproofing Membrane

Verified by manufacturer 1 month ago

WM | Wetroom Materials

Wet room tanking/ waterproofing kit for indoor use.

Jump to:
+44 (0)1332 840820 Website

Application

Paint on application that can be applied on concrete, plaster, light clinker concrete, screed, lightweight concrete, floor plywood, stucco, gypsum floors, calcium silicate plates and various approved wetroom plasterboards, gypsum fibre, cement and polystyrene.


Apply LIP VS30 with a brush, roller or scraper twice on all surfaces when the primer has dried. The drying time on the first layer is approximately 1–2 hours. The drying time for the second layer is approximately 8–16 hours depending on temperature and humidity. Working temperature should be minimum 10°C.

Description

WM | Wetroom Materials - LIP VS30 is a one-component liquid membrane used for waterproofing floor and wall cladding before cladding with ceramic tiles or natural stone in wet rooms. To be used with Primer 54 or Supergrund and reinforcement tape.


Features and benefits:

  • Approved for radon protection.
  • EC1 Plus approved.
  • TGA and ETAG 022 approved for wet rooms.
  • Easy to apply.
  • Crack bridging.
  • 1–2 hour drying time (1st layer); 8–16 hours (2nd layer).
  • Seven day drying time needed before water load.
  • Ready for tiling after 8–16 hours at 20°C.
  • Flexible and designed to stretch and move with buildings.
  • Very low emissions and CO2-neutral manufacturing.
  • Suitable for DGNB and Nordic Ecolabelled buildings.
  • Available in 3 kg and 12 kg buckets.


In the areas where a layer thickness of at least 1 mm is required, consumption is 1.73 kg/m². This applies in accordance with applicable building regulations, SBI instructions. In the areas where only a waterproof layer is required, the layer thickness must be a minimum of 0.58 mm at a consumption of 1 kg/m². For radon protection, a minimum application of 1.0 mm.


The substrate must be dust-free, firm, dry and free of release agents. Cement, plaster, lightweight clinker concrete, screed, gypsum plaster, plaster floors, aerated concrete and other inorganic materials are primed with LIP primer 54, diluted one-part primer and ten parts water.


Wet room floor drains must be approved lubrication membranes on the respective substrates and the supplier's instructions must be followed.

General information

Color

Blue

Grey

Material

Acrylic

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_35_31_68_47 Liquid tanking resinsPrimary

CAWS

M40/115 Natural stone covering to

M40/10 Natural stone covering to

J30/10 Cold-applied damp-proofing

J30/130 Cold-applied damp-proofing

M40/110 Tiling to

M40/5 Tiling to

Specification data - Liquid tanking resins

Composition

Liquid-based.

Working temperature

10–30°C.

Adhesion strength

0.8–1.2 N/mm².

Manufacturer guidance

On concrete.

Integral accessories

Reinforcement tape.
Primer.

Sustainability data

Material

Acrylic

Literature

LIP VS30 Liquid Waterproofing Membrane Datasheet

LIP VS30 Liquid Waterproofing Membrane Datasheet

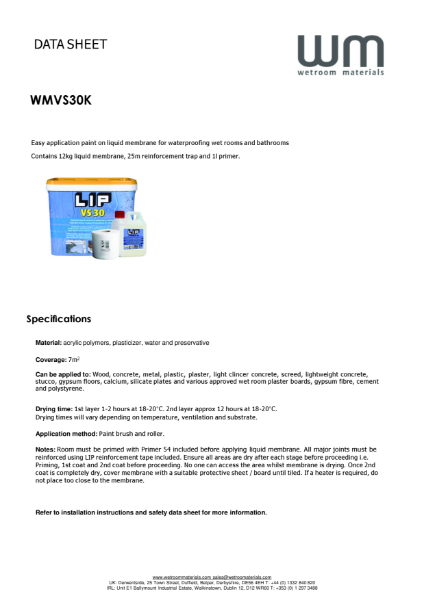

WM | Wetroom Materials Waterproofing LIPVS30K Kit

WM | Wetroom Materials Waterproofing LIPVS30K Kit

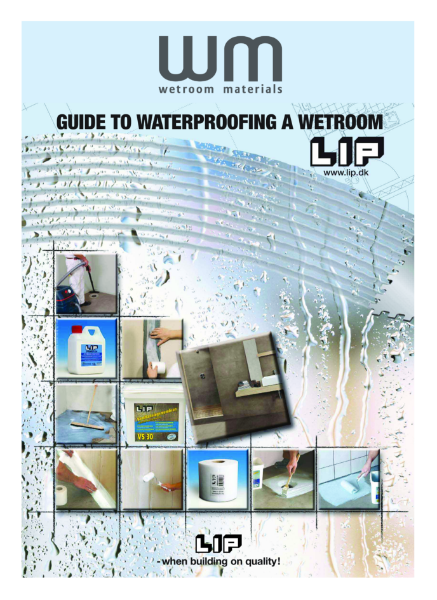

WM | Wetroom Materials.  A guide to Waterproofing a Wet room

WM | Wetroom Materials. A guide to Waterproofing a Wet room
