Application

Suitable for both wall and floor applications.

Description

Aluminatorâ„¢ Listello (ALA):

A decorative aluminium profile designed to create a feature in ceramic tile installations. The profile face is perfectly square offering a contemporary texture transition from ceramic to aluminium.

The unique Aluminator insert offers another decorative dimension by providing a bright Photoluminescent strip along the full length of the profile to suit both wall and floor applications.

The system requires no electrical connection, is simple to install and requires no special maintenance.

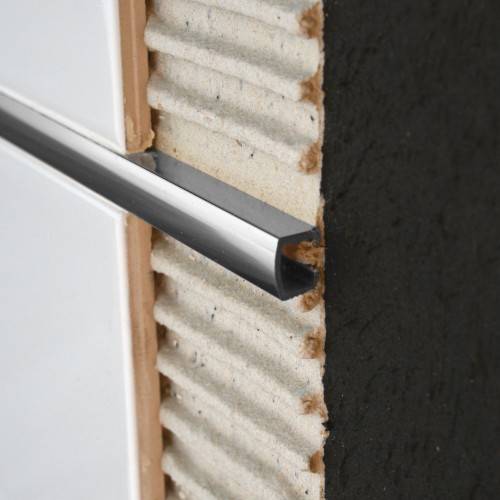

Domed Listello aluminium (LDA):

An aluminium border feature strip that can be used between tiles or as a finishing edge. The domed shape provides a feature that will enhance the tiles and is available in 10 and 25 mm width format.


Flat Line Listello (LFA):

A flat decorative aluminium profile designed to create a feature in ceramic wall tile installations.

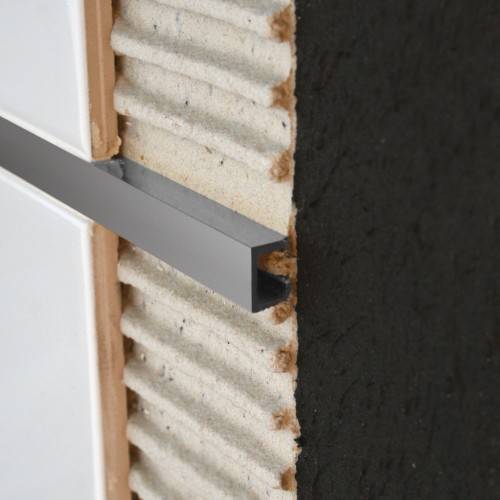

Listello aluminium (LPA):

A flat aluminium feature strip that can be used between tiles or as a finishing edge. Available in 10 and 25 mm formats which can be used as a feature between tiles and as border on either side of a ceramic border. In addition the profile can be used vertically as well horizontally.


Listello stainless steel (LPS):

An alternative to aluminium, the LPS is available in 25 and 40 mm widths. It is versatile in that it can be used horizontally or vertically as a feature strip in wall or floor tiling applications. Stainless steel can also be used in commercial and industrial installations due to its chemical resistance properties.


Slimline Listello aluminium (TMG):

This straight edge trim provides a perfect straight edge to any mosaic installation. Can also be used as a divider, crack inducer or even as a decorative feature or Listello strip to break up an expanse of mosaic.

General information

Color

Finish

Chrome

Matt

Brushed

Material

Stainless steel

Steel

Aluminium

Shape

Rectangle

Length

2500 mm

Width

12 mm

Guidance for specification option:

LAG100

8 mm

Guidance for specification option:

LFA100 & LFA200

10 mm

Guidance for specification option:

LPA100

Height

10 mm

Guidance for specification option:

LAG100 & LFA100

20 mm

Guidance for specification option:

LFA200

7 mm

Guidance for specification option:

LPA100

Uniclass

Pr_35_90_22_66 Preformed tiling strip jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Listello

Specification data - Preformed tiling strip joints

Material

Aluminium.

Stainless steel.

Brushed steel.

Finish or colour

Matt silver 81.

Guidance for specification option:

For ALA100, TMG050, TMG080, TMG100, TMG120, EMG052, EMG082, EMG102, EMG120, LFA100 and LFA200.

Stainless steel 84.

Guidance for specification option:

For LPS250 and LPS400.

Bright brass effect 86.

Guidance for specification option:

LFA100 and LFA200 only.

Nickel 88.

Guidance for specification option:

LFA100 and LFA200 only.

Bronze 89.

Guidance for specification option:

LFA100 and LFA200 only.

Bright silver 91.

Guidance for specification option:

For LPA100, LPA250, TMG050, TMG080, TMG100, TMG120, EMG052, EMG082, EMG102 and EMG120

Brushed effect 94.

Guidance for specification option:

For LPA100, LPA250, TMG050, TMG080, TMG100, TMG120, EMG052, EMG082, EMG102 and EMG120

Chrome-plated 101.

Guidance for specification option:

LFA100 and LFA200 only.

Brushed steel 102.

Guidance for specification option:

For LPS250 and LPS400.

Manufacturer guidance

Not all finishes available for all types, please refer to manufacturer's literature for exact details.

Size

-

Length (minimum)

2500 mm.

Depth

10 mm.

Corners

EMG052.

Guidance for specification option:

Internal/External Size (d): 5 mm.

EMG082.

Guidance for specification option:

Internal/External Size (d): 8 mm.

EMG102.

Guidance for specification option:

Internal/External Size (d): 10 mm.

EMG120.

Guidance for specification option:

Internal/External Size (d): 12 mm.

Dimensions

2500 x 15 x 10 mm.

Guidance for specification option:

(L x W x D).
