Litho-Stone - Natural Stone Cladding System
Verified by manufacturer 10 days ago
Lightweight natural stone cladding system.
Application

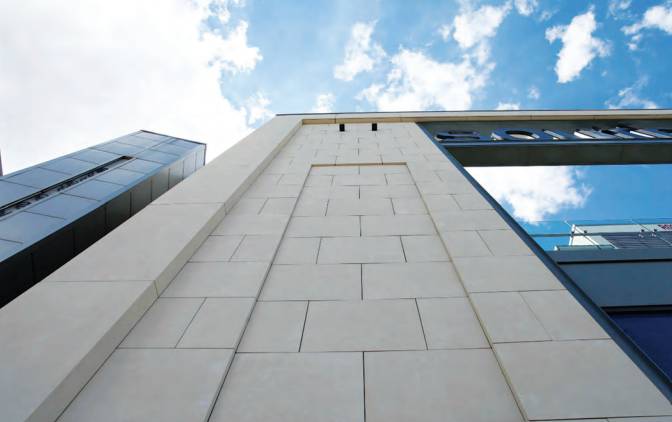

Cladding/ facades for new builds and refurbishment projects.
Description
Lightweight natural stone cladding system with concrete carrier panels and aluminium sub-structure.
Features and benefits:
- Wide range of design possibilities with numerous natural stone types, formats and shaped parts.
- Large slabs up to 7.7 m² can be suspended in the aluminum substructure with invisible fasteners.

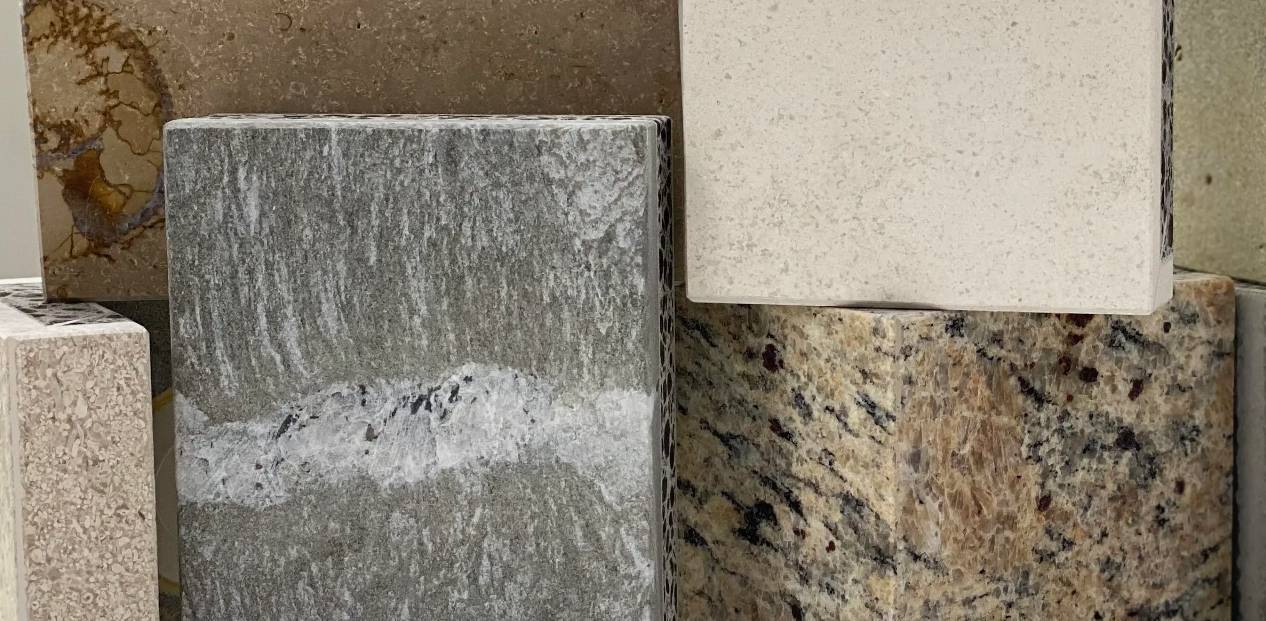

- The panels consist of a 5–15 mm thick natural stone element as top layer on a maximum 19 mm thick lightweight concrete support, and are up to 60% lighter than solid natural stone panels.
- Overhead installation is possible with invisible fasteners.
- Compensation of unevenness thanks to flexible substructure, weather and frost resistant.
- Litho-Stone Upcycling is possible - a sustainable approach to refurbishment consisting of a process that involves dismantling existing slabs which are then fabricated in a factory environment and integrated into the Litho-Stone system.
General information
Color | Other |
Finish | Other |
Material | Stone Concrete Aluminium |
Shape | Other Guidance for specification option: Can include sculptural structures. Molded parts that look as if they were cast from one piece and have a significantly reduced dead weight. In this way, monolithic-looking, three-dimensional molded parts such as corners, angles or U-shells can be produced. To do this, the composite panels are first mitered and friction-bonded without any visible joint. Monolithic appearance as if from a single cast. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Description | Lightweight natural stone cladding system. |
System manufacturer | Telling Rainscreens Ltd. |
Thermal insulation | Mineral wool slab insulation. Guidance for specification option: Mineral wool insulation (WLG 032 and 035). |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Secondary support structure | Aluminium sub-structure. Guidance for specification option: L and T-sections. Consult manufacturer for details. Aluminium grade 6063-T6. |
Cladding panels | |
Material | Natural stone panels. |
Panel joints | Manufacturer's standard. |
Reveals | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Additional supports | Lightweight concrete carrier panels. |
Panel Type | Manufacturer guidanceInsert details of required natural stone types, formats and shaped parts. |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. |
Panel size | Manufacturer guidance
|
Reaction to fire | To DIN EN 13501, Class A2-s1,d0. To DIN 4102-1, Class B1. Manufacturer guidanceCan be produced as A2-s1 d0 for panels above 4 storeys or lower if required, and they are produced as standard in a B1 class according to DIN 4102-1 for a flame-retardant panel below this height, if acceptable to the fire officer and client team as standard. |
Impact resistance | To DIN 14019, Class E5. |
Sustainability data
Country of product manufacture | Germany |
Material | Stone Concrete Aluminium |
