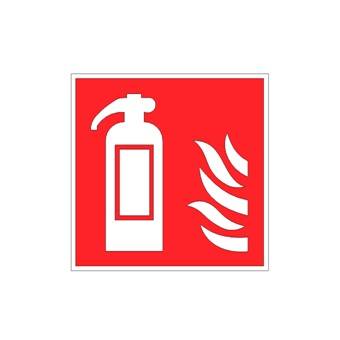

Location of fire extinguisher
Verified by manufacturer 8 months ago
Generic ‘Location of fire extinguisher' signage object.
Description
Generic ‘Location of fire extinguisher' signage object, in a selection of typical standard dimensions, with parameters to control visibility and orientation of 2D detail in plan.
Size options:
- 200 x 200 mm
- 150 x 150 mm
- 100 x 100 mm
General information
Color | Red White |
Shape | Rectangle |
Length | 100 mm 150 mm 200 mm |
Width | 100 mm 150 mm 200 mm |
Uniclass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | - | 2 |
