Active Locker 300 mm-wide
Active Locker 300 mm-wide
Locker and bench solution ideal for leisure and education environments.
Application
Suitable for leisure centres and education environments.
Description
Floor-standing and bench-mounted lockers. A single locker unit can be divided into a different number of lockers of equal height.
Features and benefits:
- Available in 34 laminate colours.
- Robust and hardwearing.
- Practical in design and functionality.
- High impact resistance.
- Impervious to water.
- Hygienic, easy to clean 13 mm-thick SGL horizontal shelves in Cloud or Shadow.
General information
Color | Black Blue Brown Cream Green |
Finish | Smooth |
Material | Aluminium Solid grade laminate (SGL) |
Shape | Rectangle |
Length | 840 mm 510 mm |
Width | 400 mm 300 mm |
Height | 1913 mm 1473 mm |
Uniclass | |
CAWS | N10/220 Lockers |
Product range |
Specification data - Lockers
Locker type | Model 1. Guidance for specification option:
Model 2. Guidance for specification option:
Model 3. Guidance for specification option:
Model 4. Guidance for specification option:
Model 5. Guidance for specification option:
|
Dimensions | 300 x 1913 x 510 mm. Guidance for specification option: W x H x D. |
Material | Doors: 13 mm-thick, high impact resistant, solid grade laminate (SGL) with 3 mm radius corners. Dividers: 13 mm-thick hygienic, easy-to-clean SGL. Carcass: robust, hardwearing and waterproof 3 mm SGL. Guidance for specification option: Select door and divider (shelf) colours separately below. Carcass colour is Cloud as standard. |
Finish | Decorative face to each side, all edges radiused and polished (black). |
Colour | Rouge (VEN324 | LRV 17). Papaya (VEN370 | LRV 35). Golden (VEN366 | LRV 52). Canary (VEN365 | LRV 65). Lime (VEN354 | LRV 54). Clover (VEN378 | LRV 20). Olive (VEN367 | LRV 38). Duck Egg (VEN368 | LRV 54). Marine Green (VEN360 | LRV 46). Hydrangea (VEN361 | LRV 55). Cornflower Blue (VEN359 | LRV 22). Pacific (VEN353 | LRV 20). Peacock (VEN371 | LRV 25). Teal (VEN377 | LRV 11). Indigo (VEN356 | LRV 8). Merlot (VEN364 | LRV 8). Macaroon (VEN348 | LRV 24). Peony (VEN376 | LRV 52). Porcelain (VEN352 | LRV 81). Suede (VEN369 | LRV 66). Cloud (VEN351 | LRV 58). Shadow (VEN350 | LRV 37). Gunmetal (VEN349 | LRV 10). Noir (VEN337 | LRV 5). Steel (VEN319 | LRV 42). Light Parchment (VEN363 | LRV 57). Grey Parchment (VEN362 | LRV 31). Vintage Grey (VEN372 | LRV 27). Weathered Grey (VEN358 | LRV 21). Black Ash (VEN374 | LRV 9). African Wenge (VEN373 | LRV 11). Dark Walnut (VEN355 | LRV 13). Golden Oak (VEN357 | LRV 36). Soft Oak (VEN375 | LRV 45). Manufacturer guidanceDoor colour only; specify divider (shelf) colour separately below. Carcass colour is Cloud as standard. |
Fittings | Coin retain lock. Digi lock. Coin return lock. RFID lock. Cylinder/ cam lock. Hasp lock. |
Shelves | Horizontal, Cloud laminate finish. Horizontal, Shadow laminate finish. |
Support system | Light grey aluminium extrusions with integral door hinges and buffers. |
Mounting | Floor-mounted. |

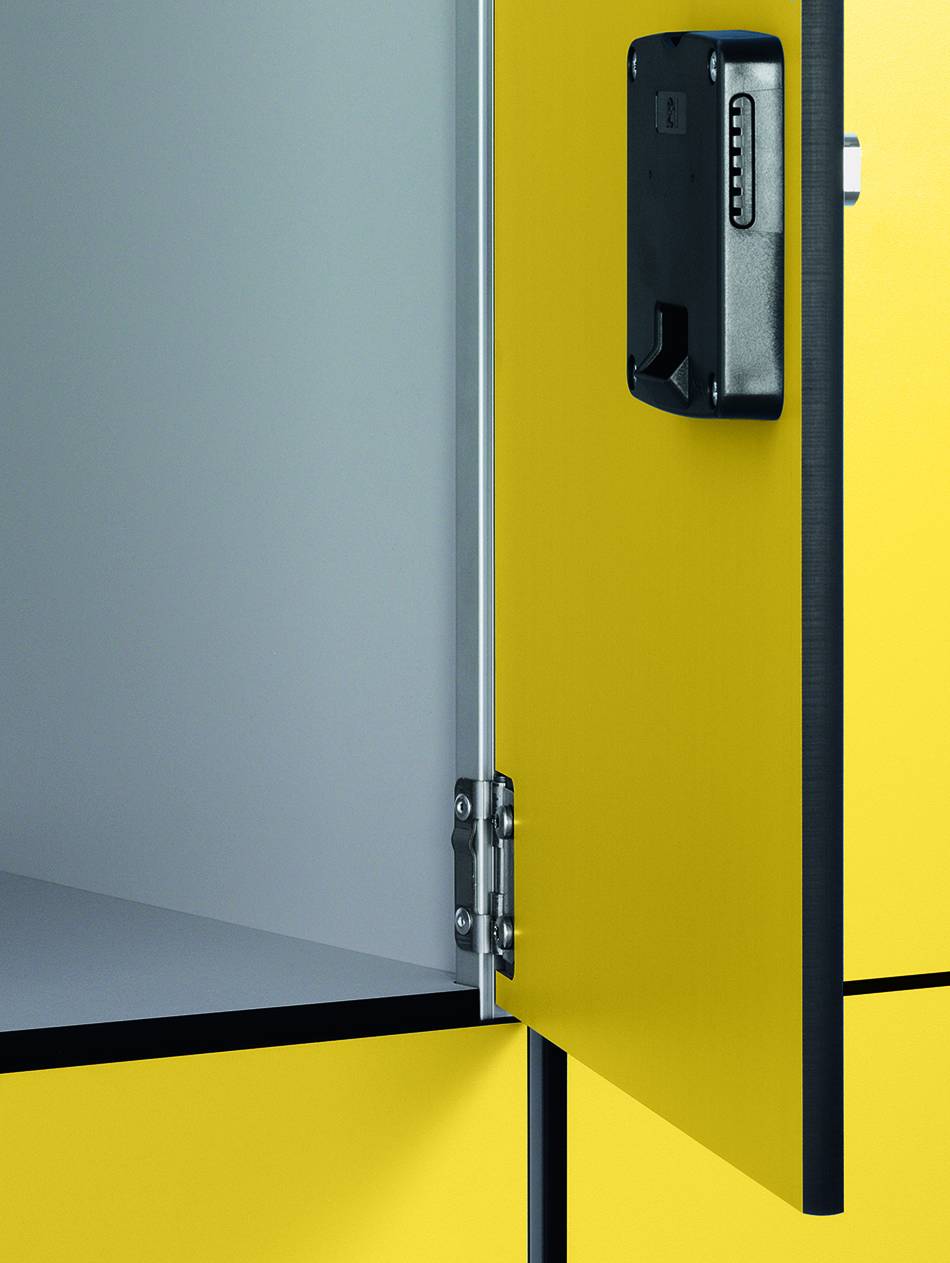

Hinge | Rolled stainless steel self-closing hinge. |
Ventilation | 3 mm space between doors and frame allows air to circulate. |
Accessories | Not required. Laser cut numbers for locker doors. Nylon coat hooks as standard with model 1, 2 and Z lockers. Corresponding wristband in red or blue. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium Solid grade laminate (SGL) |
